• Model NO.：7" steel centralizer
• Vane Type：Straight Vane, Spiral Vane
• Height：200mm
• Sample：Available
• OEM：Aeecpted
• Transport Package：Wooden Case
• Specification：4 1,2"~20"
• Trademark：ZS
• Origin：Henan
• HS Code：8431

Basic Info.

Model NO. 7" steel centralizer Vane Type Straight Vane, Spiral Vane Height 200mm Sample Available OEM Aeecpted Transport Package Wooden Case Specification 4 1/2"~20" Trademark ZS Origin Henan HS Code 8431

Product Description

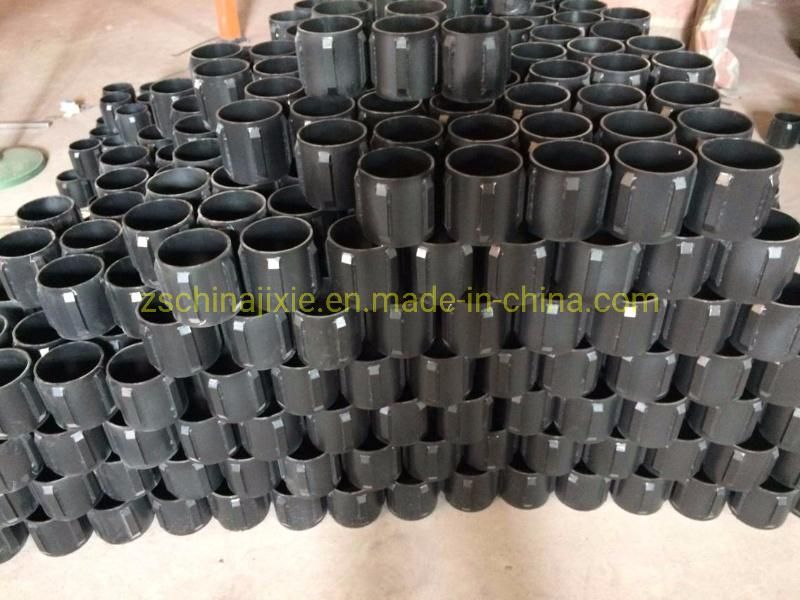

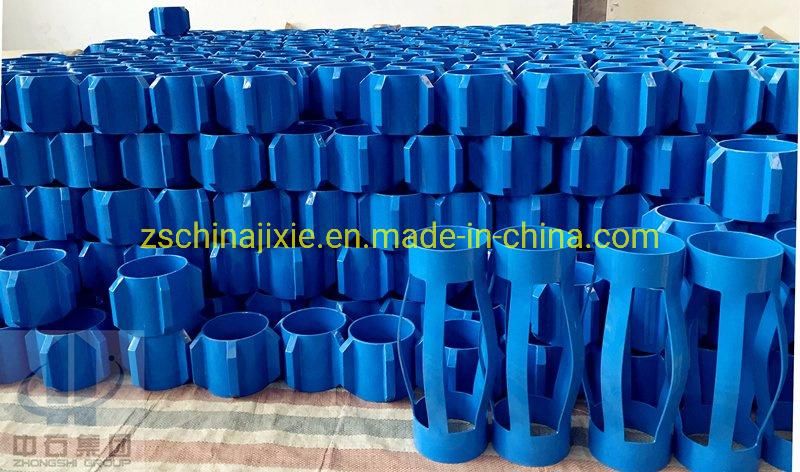

Rigid Centralizer
 1.Available in sizes 4-1/2" to 20"
2.Casted steel/aluminum/zinc centralizer
3.Good corrosion resistance
4.Reducing drag force
5.API 10D specification

Product Advantage of steel rigid centralizers
1. Spiral vane steel solid rigid casing centralizers are developed in response to the need for better cementing in high deviated and horizontal well.
2. Spiral vane steel solid casing centralizers are designed to provide optimum flow area.
3. The 360degrees overlapping solid vane provides maximum wall contact and fluid swirl.Reduced flow area between the spiral blades produces a vortex motion of the fluids for more fluid velocity with direction.
4. The 30-degree slope of the vane end reduces drag and aids the caing in reaching TD.
5. This gentle flow from the body to the height of the vane will eliminate scraping,gouging or digging into the formation and consequently reduce balling between the vanes.
6. Spiral vane steel solid centralizer has high impact and shock resistance combined with tensile and yield strength as well as resist corrosion.
7. The Spiral vane solid rigid centralizer is normally 8" long, but it can be manufactured to any length the customer requires.
8. These centralizers are available with or without set screws for eliminating of stop collars.
9. Spiral vane solid rigid casing centralizers are available for casing Sizes 4 ½" to 20".
Any special sizes are available on request.

Specification of steel rigid centralizers

Model	Style	Max OD (mm)	ID (mm)	Length (mm)
ZSGF-4 1/2 x 6	I, II, III	145	116.5	200
ZSGF-5 x 6	I, II, III	145	129	200
ZSGF-5 1/2 x 8 1/2	I, II, III	205-210	142	200/300
ZSGF-6 5/8 x 8 1/2	I, II, III	205/210	171	200/300
ZSGF-7 x 8 1/2	I, II, III	205/210	181	200/300
ZSGF-7 x 9 1/2	I, II, III	225-235	181	200/300
ZSGF-7 x 9 5/8	I, II, III	225-235	181	200/300
ZSGF-9 5/8 x 12 1/4	I, II, III	300-305	248	200
ZSGF-13 3/8 x 17 1/2	I, II, III	430-435	346	200

Note: ZSGF series rigid casing centralizer, classified as straight strip type( type I), spiral (type II), roller type (type III)
