API Single Double Bolt Polished Rod Clamps for Sucker Rod 7/8′′, 1′′, 1-1/8′′
UPET GROUP CO., LTD.- Manufacturing Process：Forging
- Surface Treatment：Sand Blast
- Operation Pressure：3500psi-7500psi
- Material：Steel
- Warranty：1 Year
- Application：Oilfield
Base Info
- Model NO.：7,8′′, 1′′, 1-1,8′′
- Colour：Customer Requirement
- Condition：New
- Transport Package：Container
- Specification：ZP175,205,275,375,520
- Trademark：UPET
- Origin：China
- HS Code：8431431000
- Production Capacity：180 Sets,Year
Description
Overview
Product Description7/8 in (22.23mm) 78.5KN(8010Kgf) 5.6kg 1 in (25.4mm) 100KN(10200Kgf) 5.5kg 1-1/8 in (28.6mm) 118KN(12041Kgf) 5.5kg WL16000 1 in (25.4mm) 118KN(12040Kgf) 7.3kg 1 1/8 in (28.6mm) 157KN(16020Kgf) 7.2kg 1 1/4 in (31.8mm) 157KN(16020Kgf) 7.1kg WL18100 1-1/8 in (28.6mm) 178KN(18160Kgf) 7.2kg 1 1/4 in (31.8mm) 178KN(18160Kgf) 10.35kg 1 3/8 in (34.93mm) 178KN(18160Kgf) 10.20kg 1 1/2 in (38.1mm) 178KN(18160Kgf) 10.05kg
Our products have been exported to 15 countries& areas around the world, 80% of our exsisting customers have done the business with us by more than 5 times, no one-off customer. We will continue to expand our range, and win more customers' trust with our better and better performance.
We welcome the win-win cooperation relationship with the partners from any places in the world, each customer is our god and helper. Warmly welcome you to come to China and visit us!
With us, you will save money, time, trouble, and most important point is that you can sleep better.

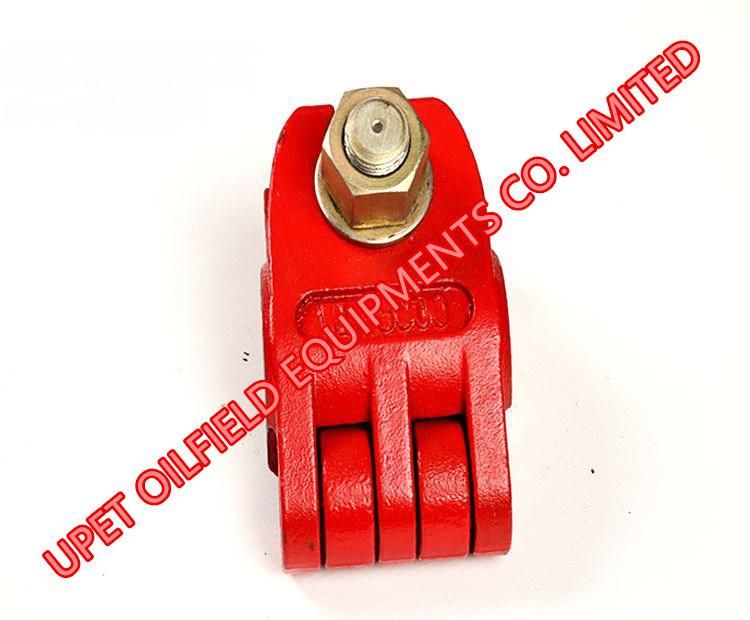

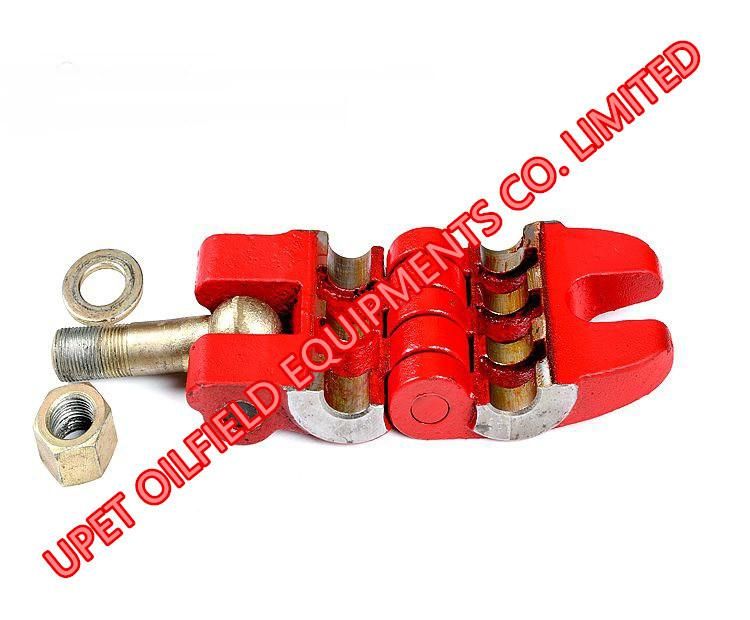

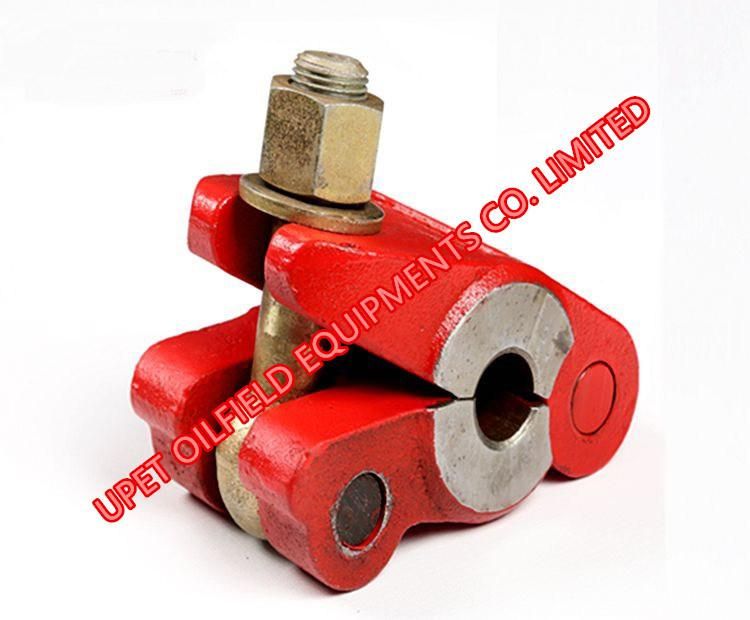

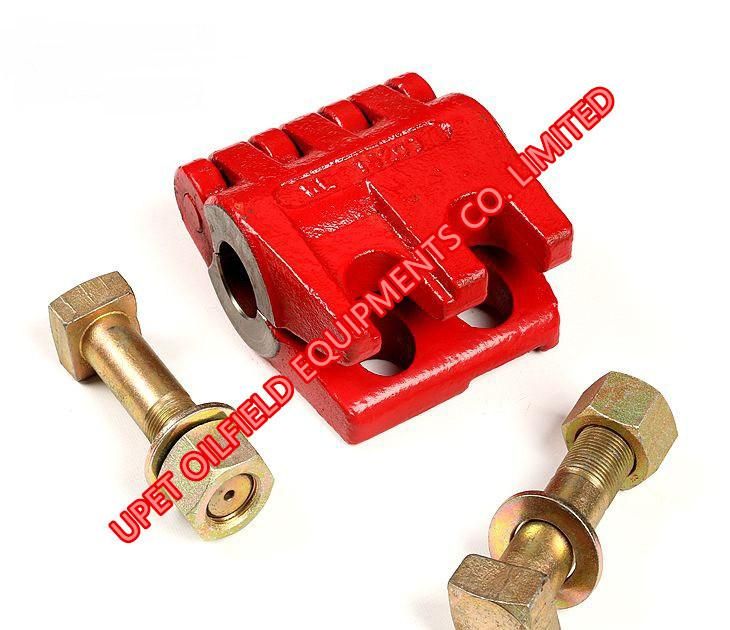

Our polished rod clamp is of hinge-jointed butterfly structure. It adopts precision casting, normalized thermal treatment and fine process. All of its technical specifications meet the American Petroleum Institution API SPEC 11B standard. It has solved the problem of the polish rod body damage caused by the taper slip jamming dens pressing into rod body and greatly reduced the accident of polish rod rupture.
It also avoids the phenomenon of seriously hurting the seal element to cause oil leakage due to the scar on the polish rod surface in the process of regulating stroke parameters or changing pump setting depth.
WL12000
