Downhole Cup Packer for Pcp
Dongying Zhaoxin Industry and Trade Co, Ltd.- After-sales Service:After Sales Service
- Warranty:6 Months
- Manufacturing Process:CNC Milling
- Surface Treatment:Polishing
- Operation Pressure:3000 Psi
- Material:Alloy
Base Info
- Model NO.:5-1,2" cup packer
- Transport Package:Wooden Case
- Specification:3-1,2"
- Trademark:ZX
- Origin:China
- HS Code:8481431000
- Production Capacity:100 PCS Cup Packer Per Month
Description
Basic Info.
Model NO. 5-1/2" cup packer Transport Package Wooden Case Specification 3-1/2" Trademark ZX Origin China HS Code 8481431000 Production Capacity 100 PCS Cup Packer Per MonthProduct Description

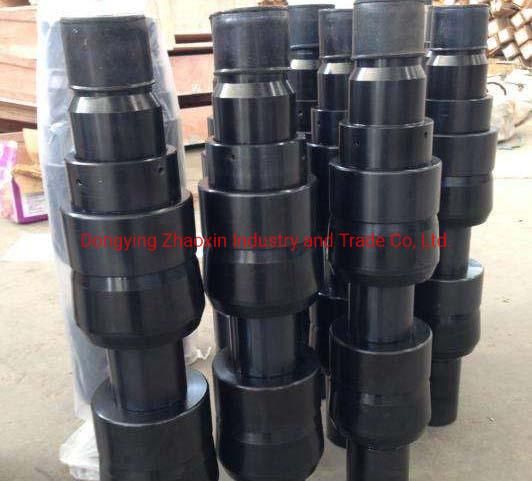

CUP PACKERCup packer is a kind of self-sealing packer , which relies mainly on the interference contact between cup and casing to make annular space between tubing and casing
Since the cup packer itself has no slip , so it has a good safety and high reliability.Moreover ,there is no damage to the casing pipe
How to set ?

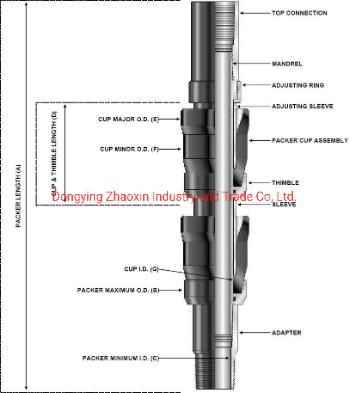

Its main compoents are self-sealing rubber , which is a kind of self-sealing element .This kind of sealing elements has the feature of self-sealing , and holding pressure in one direction and good friction resisiting . The kind of sealing element has a little skirt and a metal frame inside.The self-sealing element OD is a little bigger than the casing ID . The packer set in the well
Features:
1.the structure of the cup packer is simple , it is easy to operate, reliable sealing and no anchoring mechanism .It can be used in vertical wells , deflecting wells and horizontal wells.
2.The cup of the product can be fixed at the opposite direction( hold the pressure from two directions) or fixed in the same direction(up or down).cup can be fixed in any direction and it is easy to assemble
3.The cup packer can set without any other equipment. It doesn't need to move tubing string or increase pressure to set ,Putting downward together with the string can seal the tubing and casing to make annular space . It can save operation time and cost
type | Max OD(mm) | Length(mm) | Min ID(mm) | Working pressure | connection | Suitable size |
Z33-115 | 116 | 666 | 62 | ≤35 | EUE/NUE | 5-1/2" |
Z33-143 | 143 | 706 | 62/76 | ≤35 | EUE/NUE | 6-5/8" |
Z33-150 | 150 | 706 | 62/76 | ≤35 | EUE/NUE | 7" |
