Polished Rod with 9 Degree Thread
Dongying Zhaoxin Industry and Trade Co, Ltd.- After-sales Service:After Sale Service
- Warranty:12 Month
- Manufacturing Process:CNC Milling
- Surface Treatment:Polishing
- Operation Pressure:100 Psi
- Material:Alloy
Base Info
- Model NO.:1-1,8"
- Transport Package:by Bulk
- Specification:1-1,8"
- Trademark:ZX
- Origin:China
- HS Code:8481431000
- Production Capacity:1000 PCS Per Month
Description
Basic Info.
Model NO. 1-1/8" Transport Package by Bulk Specification 1-1/8" Trademark ZX Origin China HS Code 8481431000 Production Capacity 1000 PCS Per MonthProduct Description

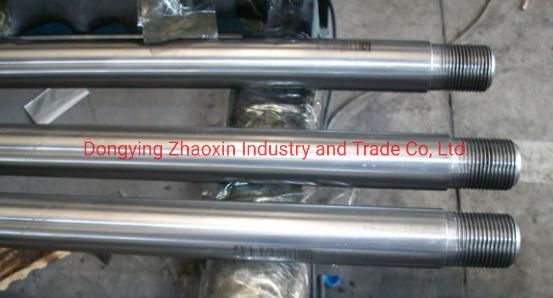

POLISHED RODPolished Rods, it is designed and manufactured in accordance with the latest edition of the API specification 11B. Our polished rods and couplings are furnished with cold formed fully rolled threads. And they are made from fine quality alloy steel, featured by high strength, smooth surface and long service life. The tensile strength of polished rods are a range of 655 to 1102 Mpa.
Polished rod pin connection dimension requirement
Nominal size | 5/8" | 3/4" | 7/8" | 1" | 1-1/8" |
Max pin major diameter | 23.779 | 26.952 | 30.127 | 34.887 | 39.647 |
Min pin major diameter | 23.452 | 26.624 | 29.799 | 34.559 | 39.319 |
Max pin pitch diameter | 22.128 | 25.303 | 28.476 | 33.236 | 37.998 |
Min pin pitch diameter | 21.981 | 25.146 | 28.321 | 33.071 | 37.826 |
BP2 length | 3.81 | 3.81 | 3.81 | 3.81 | 3.81 |
BP4 | 9 ° | 9 ° | 9 ° | 9 ° | 9 ° |
POLISHED ROD SIZE
Size (inch) Diameter of rod body OD(mm) | Upsetting end thread nominal diameter (in) | Not upsetting end thread nominal diameter (in) | With of sucker rod specifications (in) | Length of polished rods LK ±50(mm) |
25.4(+0.13,-0.25) | 1-3/16 | 15/16 | 13/16 | 4500/6000/8000/10000/11000/12000 |
28.58(+0.13,-0.25) | 1-3/8 | 1-1/16 | 1-3/8 | 4500/6000/8000/10000/11000/12000 |
31. 75(+0.13,-0.25) | 1-9/16 | 1-3/16 | 1-9/16 | 4500/6000/8000/10000/11000/12000 |
SHIPPING PACKAGE
