• Model NO.：6A
• Transport Package：Plywood Case
• Specification：2-1,16"
• Trademark：WS
• Origin：China
• HS Code：848190
• Production Capacity：1000sets,Year

Basic Info.

Model NO. 6A Transport Package Plywood Case Specification 2-1/16" Trademark WS Origin China HS Code 848190 Production Capacity 1000sets/Year

Product Description

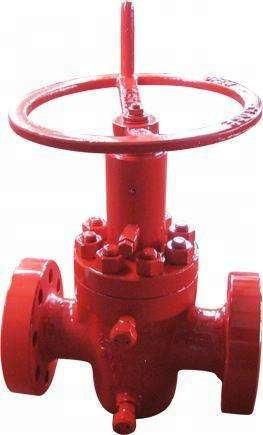

The expanding gate valve features a non-ring stem with an expanding gate design to provide safe, dependable service in a variety of environments, It's a available in flanged or threaded ends in standard bore sizes from 2-1/16" thru 7-1/16" in working pressures of 2000psi thru 5000psi.

2,000 psi Working Pressure

Size	Bore(mm)	A(mm)	D(mm)	B(mm)	C(mm)	Weight(kg)
2-1/16"	52.4	295	280	125	470	45
2-9/16"	65.1	233	330	150	475	60
3-1/8"	79.4	359	330	190	550	100
4-1/16"	103.2	435	405	435	425	160

3,000 psi Working Pressure

Size	Bore(mm)	A(mm)	D(mm)	B(mm)	C(mm)	Weight(kg)
2-1/16"	52.4	371	330	125	475	50
2-9/16"	65.1	422	330	150	490	95
3-1/8"	79.4	435	400	190	550	150
4-1/16"	103.2	511	480	240	635	260
7-1/16"	179.4	714	760	355	615	260

5,000 psi Working Pressure

Size	Bore(mm)	A(mm)	D(mm)	B(mm)	C(mm)	Weight(kg)
2-1/16"	52.4	371	330	130	470	75
2-9/16"	65.1	422	330	150	550	105
3-1/8"	79.4	473	400	190	555	150
4-1/16"	103.2	549	480	240	635	280
7-1/16"	179.4	813	760	355	715	600



Product Name	Expanding Gate Valve
Working Pressure	2000PSI~10000PSI
Nominal Bore	1.13/16"~7.1/16" (46mm~180mm)
Working Medium	oil,natural gas,mud and gas containing H2S,CO2
Working Temperature	-46°C~121°C(Class LU)
Material Class	AA,BB,CC,DD,EE,FF,HH
Specification level	PSL1-4
Performance Requirement	PR1-2
