• Size：4615*3276*2688mm
• Certificate：ISO
• Power：1193,1600
• Transport Package：Common Export Packing
• Specification：standard
• Trademark：XINHUAFA
• Origin：Cn
• HS Code：84134000
• Production Capacity：500 Sets , Year

Basic Info.

Size 4615*3276*2688mm Certificate ISO Power 1193/1600 Transport Package Common Export Packing Specification standard Trademark XINHUAFA Origin Cn HS Code 84134000 Production Capacity 500 Sets / Year

Product Description

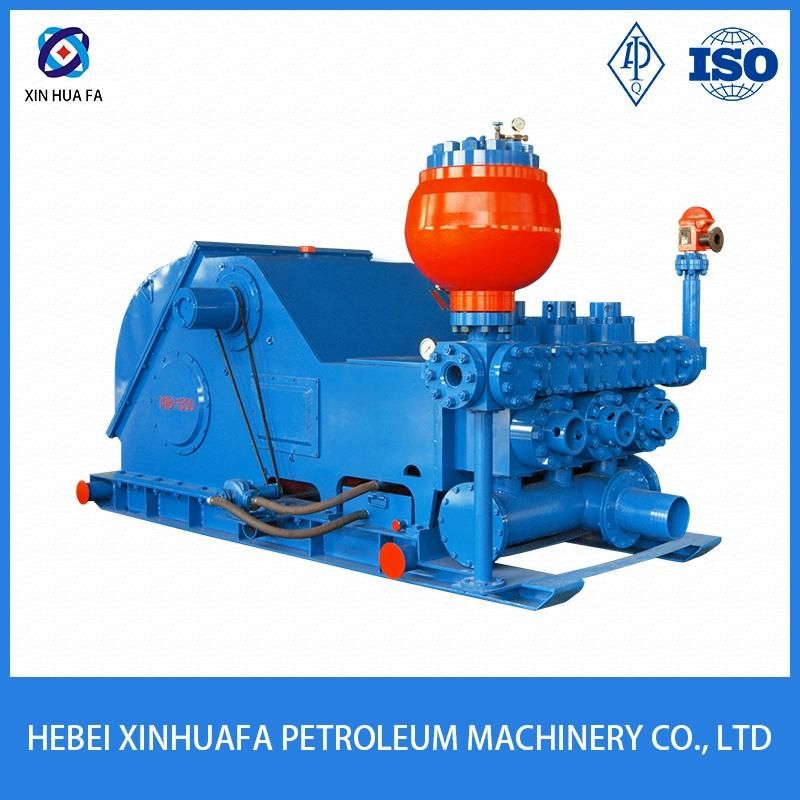

3NB1300 oil drilling Mud Pump

Xinhuafa specializes in supplying quality mud pumps and mud pump parts.

The F Series mud pumps can meet the requirements of the same manufacturing technique and quality level as those of F series mud pumps of EMSCO, IDECO, GARDNER DENVOR, OILWELL etc. Now, F series mud pumps (from F-500 to F-2200) have been produced in batches and sold to many abroad oilfields. Your order for F series mud pumps is cordially welcome.

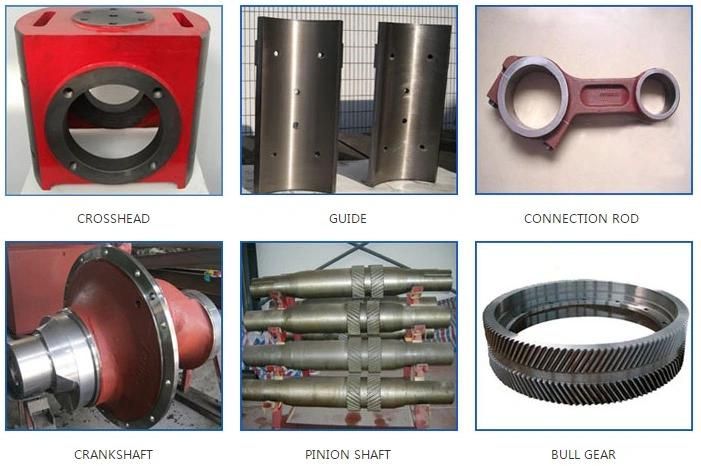

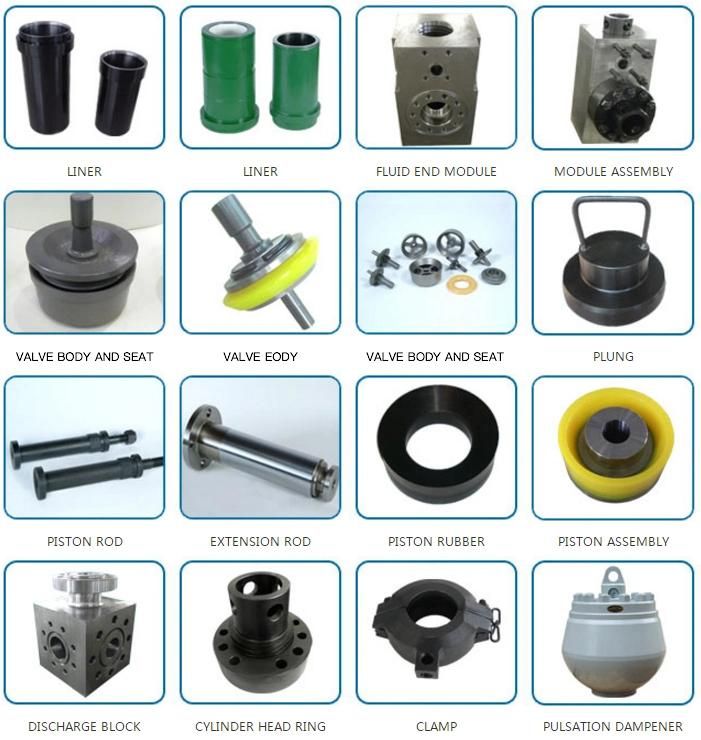

F  Series pump parts detail



Item	F500	F800	F1000	F1300	F1600
Power Rating HP(kw)	500 (373)	800 (597)	1000 (746)	1300 (969)	1600 (1193)
Stroke RatingSPM	165	150	140	120	120
Stroke Length(in /mm)	7.5" /190.5	9"/228.6	10"/254	12"/305	12"/305
Gear Ratio	4.286	4.185	4.207	4.206	4.206
Inlet Dia. (in/mm)	8"/203	10"/254	12"/305	12"/305	12"/305
Outlet Dia. (in)	4" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi	5-1/8" Flange 5000psi
Valve	API5#	API6#	API6#	API7#	API7#
Max. Liner (in/mm)	6-3/4"/170	6-3/4"/170	6-3/4"/170	7"/180	7"/180
Overall Dimension L*W*H(mm)	3658*2709 *2231	3963*3025 *2410	4267*3167 *2580	4617*3260 *2600	4615*3276 *2688
Approx. Weight (kg)	9770	14500	18790	24572
