• Model NO.：6 5,8′′
• Transport Package：Wooden Box
• Specification：6 5,8′′
• Trademark：Zhongshi, China
• Origin：Henan, China
• Production Capacity：3000,Year

Basic Info.

Model NO. 6 5/8′′ Transport Package Wooden Box Specification 6 5/8′′ Trademark Zhongshi, China Origin Henan, China Production Capacity 3000/Year

Product Description

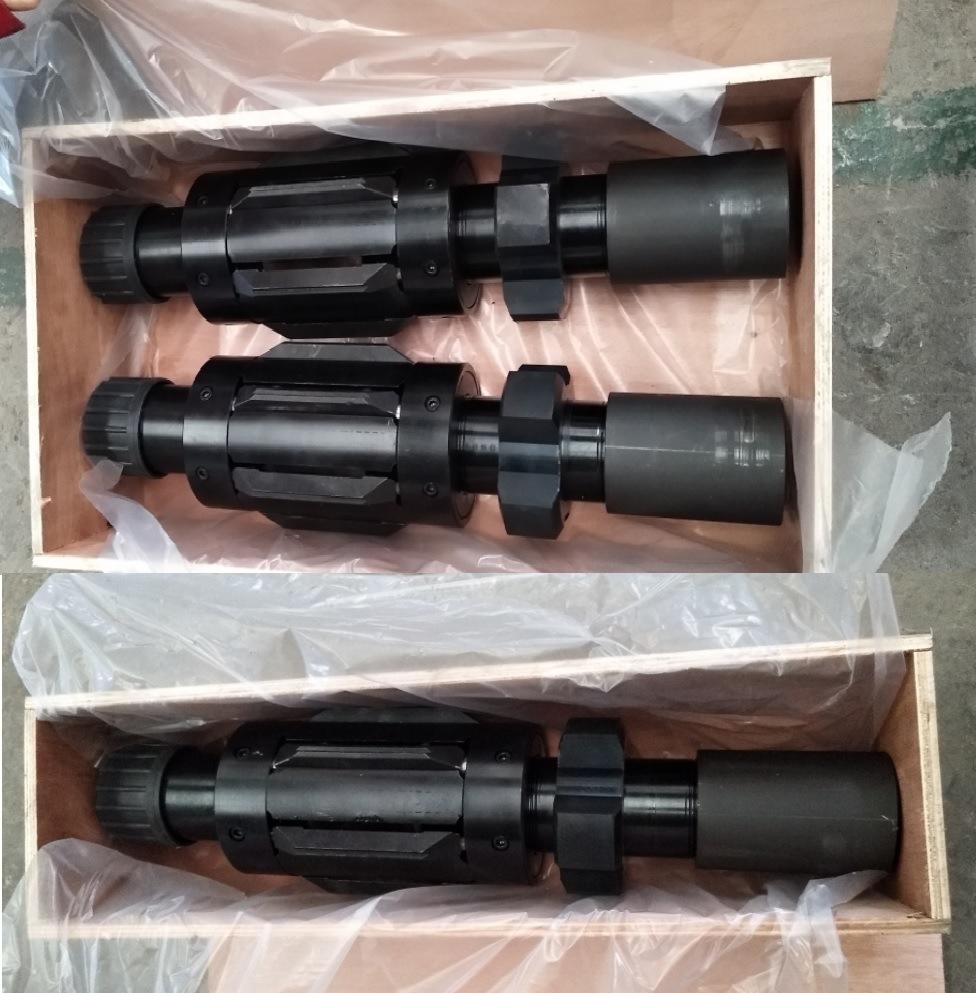

DTA torque anchor1 ApplicationTorque anchor is a kind of anchor tool which specially designed for screw pump, simple structure,easy to use.2 Structures

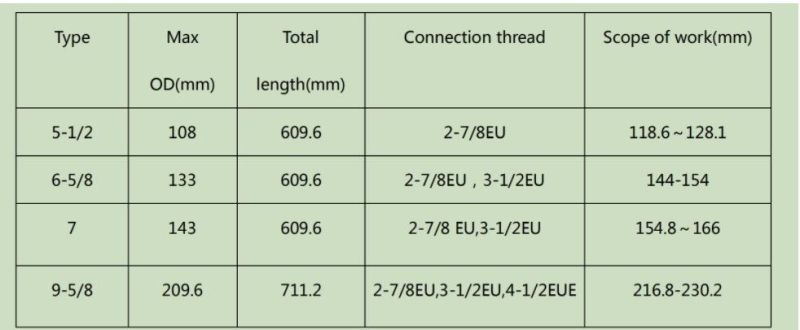

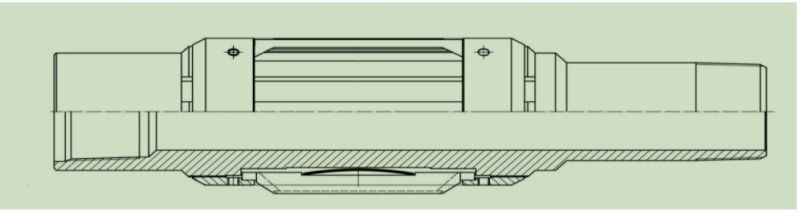

It is mainly consists of upper sub, anchor, centralizer, reed and mandrel etc. When the screw pumprotates, torque anchor can effectively avoid the tubing rotate. It has the characteristics of simplestructure, simple installation, working flexible, safe anchoring, widely used in anchoring of screwpump and anchor of tubing of tubular pump.3 Working principleWhen the screw pump rotates, the rotor rotates thus drive the stator, upper sub and mandrel torotate, anchor opens, anchors on the casing, anchoring completed. When the screw pump stops,stator releases energy under spring action, anchor closes under the contractility of reed, releasingcompleted.4 Parameters
Other sizes and connections available on request
