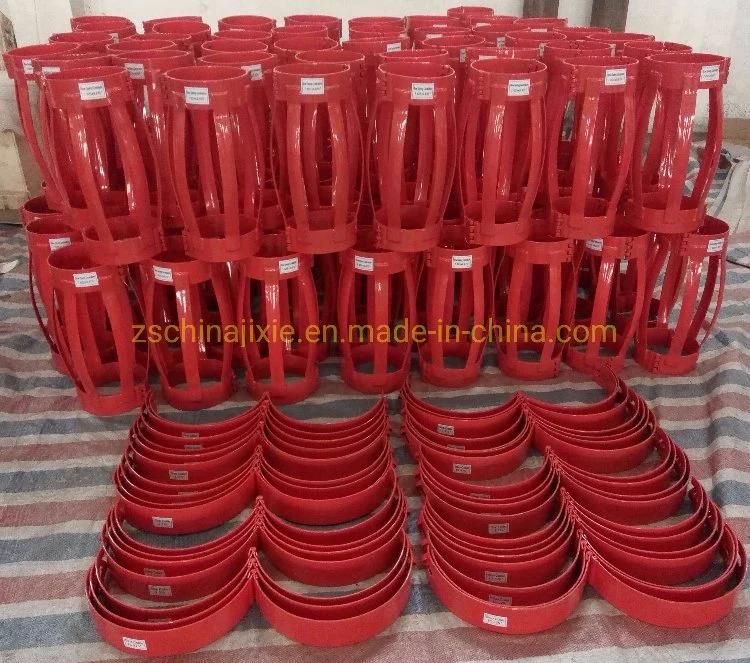

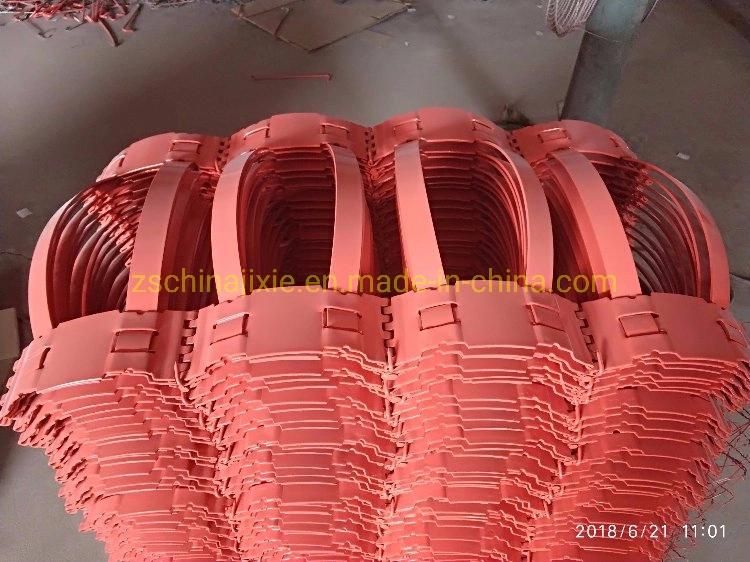

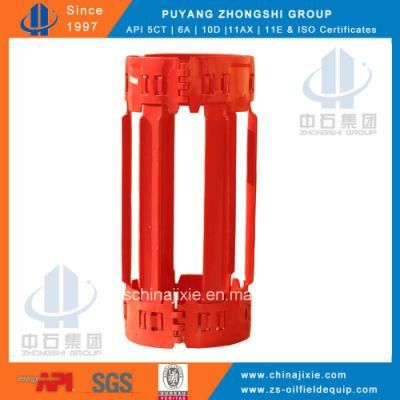

API Hinged Bow Non-Welded Oilwell Casing Centralizer for Cementing

Puyang Zhongshi Group Co., Ltd.
  • Certification：ISO 9001:2008, API 10d
  • Surface Treatment：Spray-Paint
  • Centralizer Type：Elastic
  • Material：65mn
  • Type：Centralizer
  • Centralizers Type：Hinged Non Welded Bow Spring Centralizer

Base Info

  • Model NO.：ZS106
  • APP：Well Drilling
  • Sample：Avaliable
  • OEM：Avaliable
  • Transport Package：Wooden Case
  • Specification：4-1,2" to 20"
  • Trademark：ZS
  • Origin：Henan
  • Production Capacity：50000 Piece,Pieces Per Month

Description

Non welded centralizer specification(mm)SpecificationBow typeHoop ring internal diameter(d)Hoop ring wall thickness(t)Hoop ring height(h)Total length(l)Max. O. D. SizeBow spring(n)5-1/2"*8-1/2"Double bow142-1483-590-120650±50225±557"*9-5/8"Double bow181-1863-590-120650±50255±567"*8-1/2"Single bow181-1863-590-120650±50235±568-5/8"*12-1/4"Single bow223-2283-590-120650±50330±589-5/8"*12-1/4"Single bow250-2553-590-120650±50330±5810-3/4"*12-1/4"Single bow274-2763-590-120650±50330±5913-3/8"*17-1/2"Single bow342-3473-590-120650±50450±51118-5/8"*24"Single bow476±13-590-120600±50610±51220"*26"Single bow510±13-590-120600±50660±512Welded centralizer specification(mm)5-1/2"*8-1/2"Single bow142-1485-750-60650±50225±555-1/2"*8-1/2"Double bow142-1485-750-60650±50225±555-1/2"*8-1/2"Cyclone single bow142-1485-750-60650±50225±566"*8-1/2"Double bow154-1185-750-60650±50225±5513-3/8"*17-1/2"Single bow342-349850-60580450±5620"*26"Single bow510-518850-60650±50670±510
