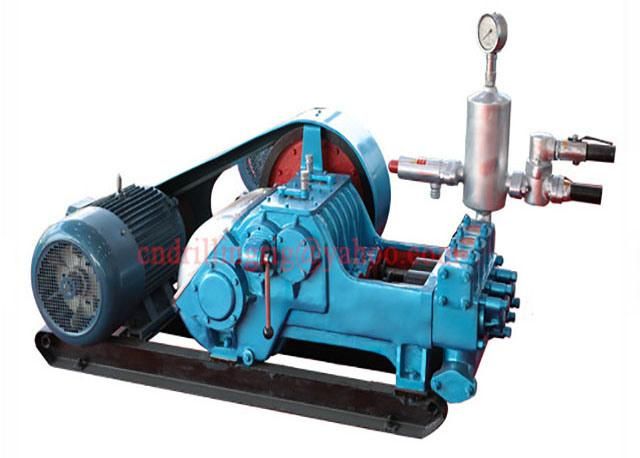

Best Price High Pressure Hydraulic Piston Pump for Mud Drilling

Beijing Jincheng Mining Technology Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Power Source：Diesel Engine
  • Operation Pressure：Atmospheric Pressure
  • Material：Cast Steel
  • Type：Drilling Fluid Shale Shaker
  • Flow：450L,Min

Base Info

  • Model NO.：BW450
  • Pressure：5MPa
  • Weight：760kgs
  • Power：Engine,Hydraulic,Elcetric Motor
  • Transport Package：Wooden Box
  • Specification：450L,Min
  • Trademark：JCDRILL
  • Origin：China
  • HS Code：8430419000
  • Production Capacity：2000,Set

Description

PatternHorizontal triplex reciprocating single-acting piston pumpstroke(mm)100Cylinder dia(mm)95Pump Speed (min)223 168 112 86Flow(1/min)450 340 240 172Pressure(Mpa)2 3 4 5Volumetric efficiency(%)92Total efficiency(%)83Power(Kw)22V-belt pulley shortcut410(B Type *5 slot)Input speed(r/min)500Suction height(m)2.5Suction hose diameter(mm)76(With 3 inch pressure hose)Discharge hose diameter(mm)51(With 2 inches of two layers of steel high pressure hose)Size(mm)1000*995*650Weight(kg)520Packing& Delivery
Best Price High Pressure Hydraulic Piston Pump for Mud Drilling

Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
