• Model NO.：F-1600, PZ-8,9,10,11, 12P-160 etc
• Application：Oilfield
• Colour：Customer Requirement
• Transport Package：Container
• Specification：according to clients′ requirements
• Trademark：UPET
• Origin：China
• HS Code：8431431000
• Production Capacity：360 Sets,Year

Basic Info.

Model NO. F-1600, PZ-8/9/10/11, 12P-160 etc Application Oilfield Colour Customer Requirement Transport Package Container Specification according to clients′ requirements Trademark UPET Origin China HS Code 8431431000 Production Capacity 360 Sets/Year

Product Description

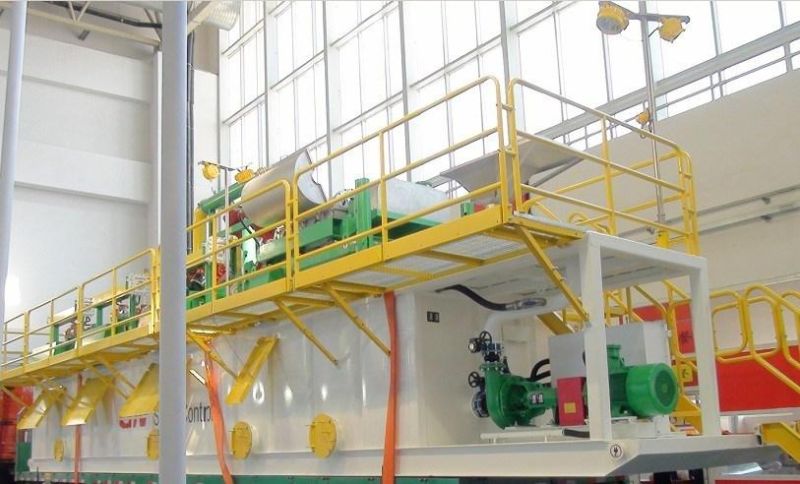

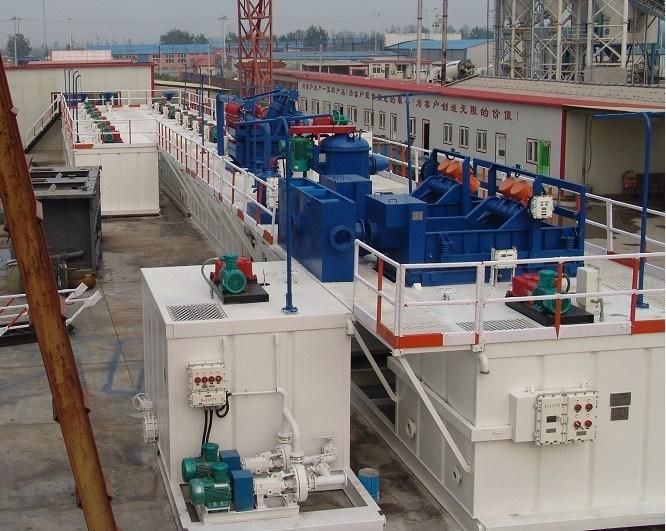

We can supply varies of mud tank/water tank, oil sludge tanks, Oilfield three runner design Skid mounted tank, with galvanized grating, safe handrail, coated with Marine corrosion-resistant zinc rich  epoxy coating and paining, two layers for inside tank, three layers for outside tank.

• Mud Storage Tank
• Mud Mixing Tank
• Drilling Mud Trip Tank
• Drilling Mud Recycling Tank

Type FG and ZG Mud Tank designed and manufactured by our company is divided into Square tank and Cone-shaped tank according to the shape of tank bottom. The body of the tank is made of welding the steel plate and section, using the flat cone-shape structure or the corrugated structure. The mud tank surface and the passage are made of the slipping resistant steel plate and linearity netted steel plate which is produced by the professional factory, the mud tanks are made of the side steel pipe, all of the structure can be folded without barrier and pegged reliably. The surface of tank is equipped with water pipeline for cleaning the surface and equipment on the mud tank, we use soaked zinc processing for the netted steel plate. The ladder is made of the channel steel to take responsibility the body, the foot board is made of the linearity netted steel plate. The two-sided guard rail are installed the safe suspension hook. The mud tank is designed the standard shanty to prevent the sand and the rain. The pipeline is installed in the tank to preserve the warm air heat.
