High Quality Cheap Price! Drilling Down-Hole Motor/Mud Motor/Pdm Tool
UPET GROUP CO., LTD.- Manufacturing Process:Forging
- Surface Treatment:Sand Blast
- Operation Pressure:Atmospheric Pressure
- Material:Steel
- Transport Package:Container
- Specification:various type
Base Info
- Model NO.:various type
- Trademark:UPET
- Origin:China
- HS Code:8431431000
- Production Capacity:200000 Sets,Year
Description
Basic Info.
Model NO. various type Trademark UPET Origin China HS Code 8431431000 Production Capacity 200000 Sets/YearProduct Description

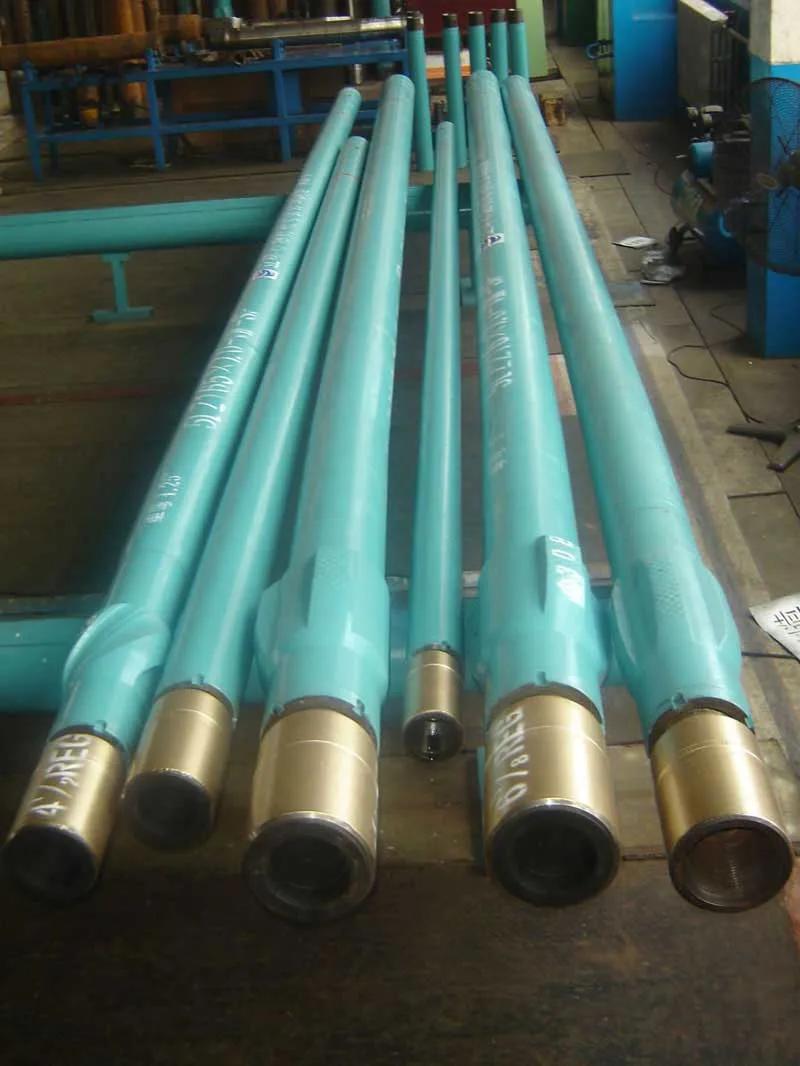

Down-hole MotorSpecifications
1. a kind of downhole drill tool driven by mud.
2.Type:LZ series
down hole motor
As mud fluid from the mud pump enters the motor via the by-pass valve, a certain pressure difference is formed at the inlet and outlet of the motor, pushing the rotor to rotate. Torque and rotate speed are transferred via the cardan shaft and the driving shaft to the bit.
Performance of the down-hole drill motor depends mainly on performance parameters of the
screw motor.
model | OD mm (in | hole size mm(in | connection thread API | nominated flowing L/s | bit rotate speed r/m | noggle pressure decline MPa | motor pressure decline MPa | working torgue N·m | max.torgue kN·m2 | nominated weight on bit kN | nominated weight on bit kN |
5LZ95 ×7 | 95 (33/4) | 118-152 (45/8-6) | 27/8REG | 716 | 80-200 | 7.0 | 2.4 | 780 1150 | 1710 | 25 | 50 |
5LZ102 ×7 | 102(4) | 118-152 (45/8-6) | 27/8REG | 716 | 80-200 | 7.0 | 2.4 | 780 1150 | 1710 | 25 | 50 |
5LZ120 ×7 | 120 (43/4) | 149-200 (57/8-77/8) | 31/2REG | 1016 | 80-160 | 7.0 | 3.2 | 1215 1817 | 2560 | 68 | 80 |
5LZ127 ×7 | 127 (5) | 149-200 (57/8-77/8) | 31/2REG | 1016 | 80-160 | 7.0 | 3.2 | 1215 1817 | 2560 | 68 | 80 |
5LZ165 ×7 | 165 (61/2) | 213-251 (83/8-97/8) | NC50 41/2REG | 1932 | 80-160 | 7.0 | 3.2 | 2916 3996 | 6800 | 80 | 160 |
5LZ172 ×7 | 172 (63/4) | 216-251 (81/2-97/8) | NC50 41/2REG | 1932 | 80-160 | 7.0 | 3.2 | 2916 3996 | 6800 | 80 | 160 |
7LZ197 ×7 | 197 (73/4) | 251-311 (97/8-121/4) | 51/2REG 65/8REG | 3250 | 80-150 | 7.0 | 4.0 | 6515 9215 | 13000 | 160 | 270 |
7LZ203 ×7 | 203 (8) | 241-311 (91/2-121/4) | 65/8REG | 3250 | 80-150 | 7.0 | 4.0 | 6515 9215 | 13000 | 160 | 270 |
9LZ244 ×7 | 244 (95/8) | 311-445 (121/4-171/4) | 65/8REG | 4470 | 90- 150 | 7.0 | 3.2 | 7550 13740 | 18500 | 250 |
