One Cylinder Reciprocating Single Acting Piston Pump
Shaanxi Zhongtuo Mine Equipment Co., Ltd.- Certification:CE, ISO 9001:2000
- Power Source:Electric
- Operation Pressure:Atmospheric Pressure
- Material:Alloy
- Type:Drilling Fluid Shale Shaker
- Maximum Flow Rate:150L,Min
Base Info
- Model NO.:BW150
- Motor Power:7.5kw
- Diameter of The Suction Pipe:50mm
- Weight:560kg
- Transport Package:Wood Box
- Trademark:ZHONGTUO
- Origin:China
- HS Code:8413400000
- Production Capacity:50piecces,Month
Description
Basic Info.
Model NO. BW150 Motor Power 7.5kw Diameter of The Suction Pipe 50mm Weight 560kg Transport Package Wood Box Trademark ZHONGTUO Origin China HS Code 8413400000 Production Capacity 50piecces/MonthProduct Description

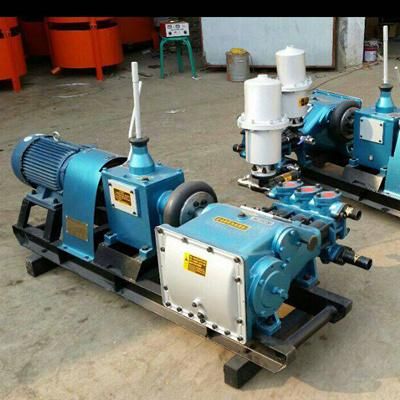

BW150 drilling Mud pump:
The utility model discloses a double acting hydraulic cylinder mud pump, comprising a first pump cylinder, a double acting hydraulic cylinder, a second pump cylinder and a hydraulic oil control system. The pistons of the two pump cylinders respectively pass the piston rod and double acting hydraulic pressure. The pistons of the cylinders are connected, and the one-way valves at the outlets of the two pump cylinders and the one-way valves at the inlets are merged into the outlet pipelines and the inlet pipelines connected to the drilling fluid to be transported through the pipelines. The left and right ends of the double-acting hydraulic cylinders are respectively provided with Buffered confined space and buffered confined space are all connected with the pressure relay. The left and right ends of the double-acting hydraulic cylinder are respectively connected with the hydraulic oil control system through the oil passage A and the oil passage B. When the buffer confined space reaches the pressure relay setting value, the corresponding The pressure relay sends electrical signals and controls the hydraulic oil control system to supply oil to the oil circuit A or oil circuit B to drive the piston movement of the double-acting hydraulic cylinder, thereby driving the two pump cylinders to move through the piston rod to realize the drilling fluid delivery. The device is light in weight, small in size, and has a large delivery flow.
parameters
Maximum flow rate | 150L/min |
The maximum pressure | 70kg/cm2 |
Drive power | 7.5kw |
The diameter of the suction pipe | 50mm |
Drain pipe diameter | 32mm |
Weight | 560kg |
FAQ:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: No.27,Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)
Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.
Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.
Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.
Our Company Information:
We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:
Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

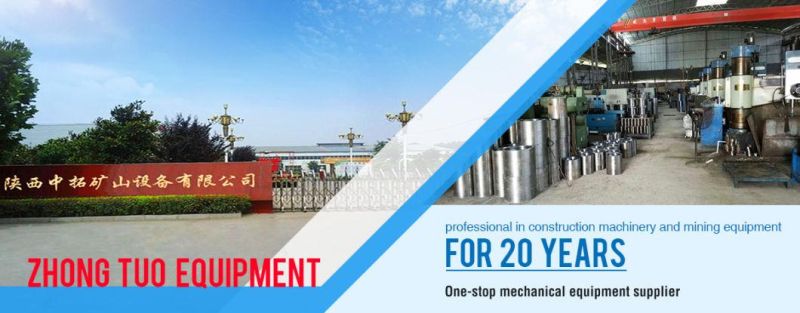

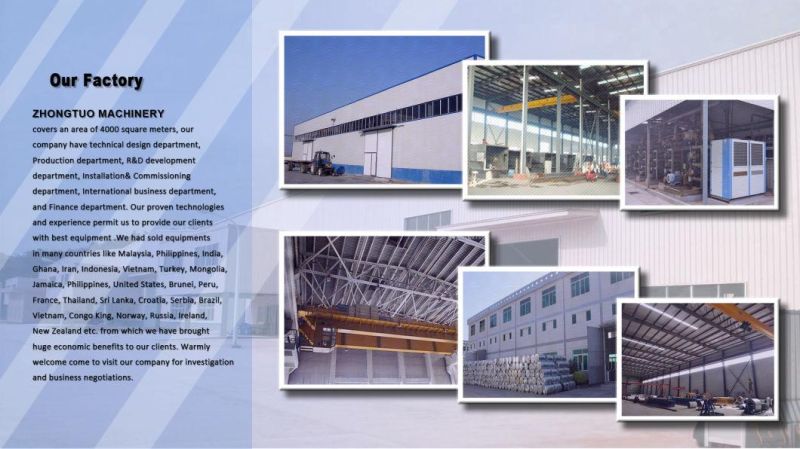

About Our Factory:
About the products:
Packing and Shipping:

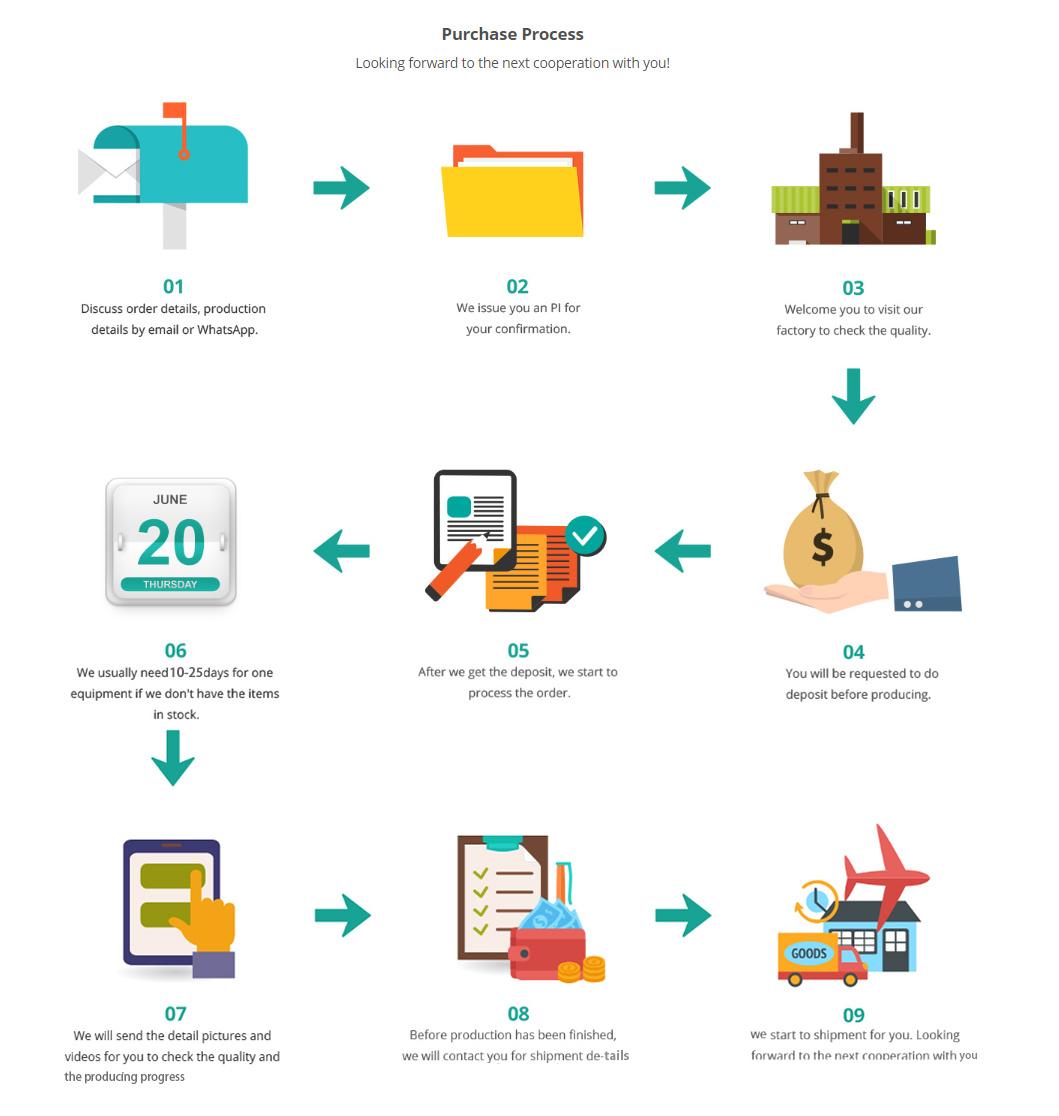

Purchase Process:

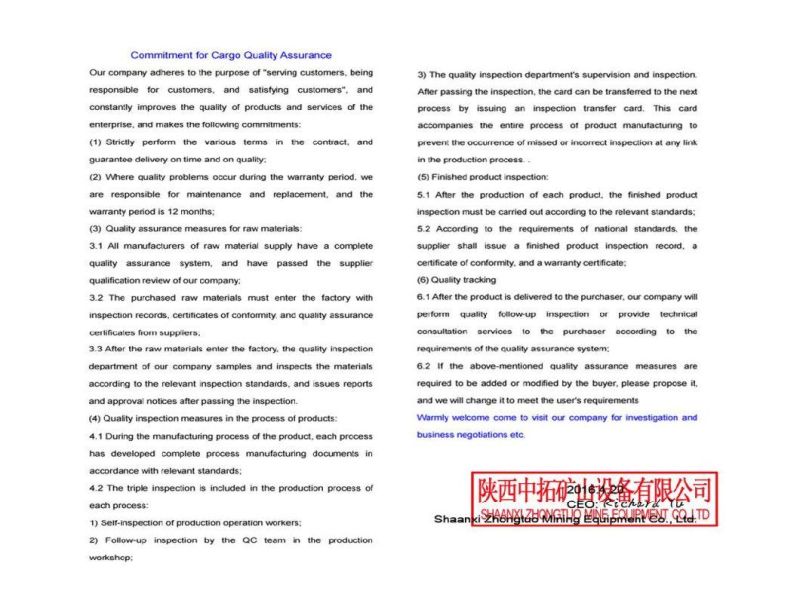

About the Quality:
Others:
Why you choose us:
1. We are a real factory offering products and provide free technical advice.
2. Company in business for many years and served Over 50 countries customers.
3. All machine with CE, ISO,SGS certificate. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
