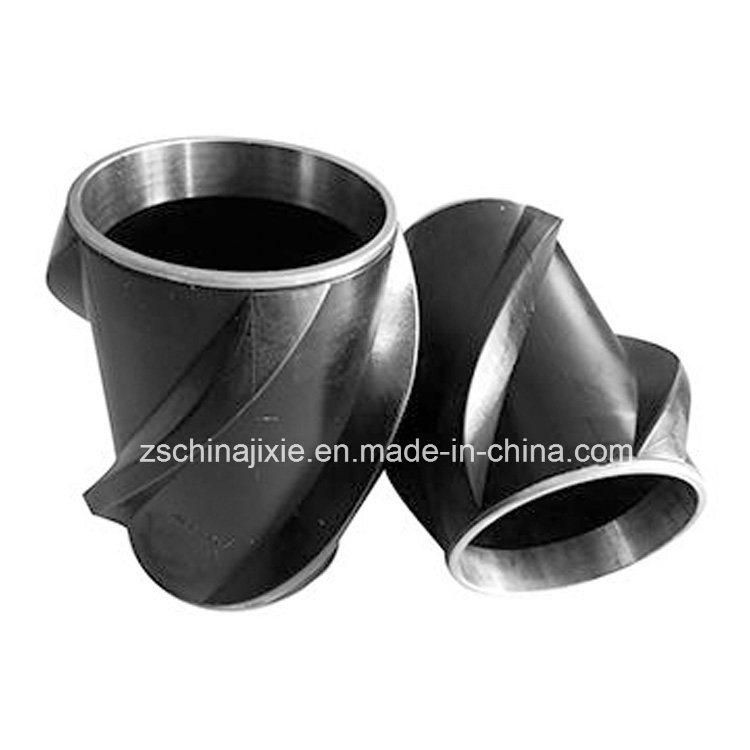

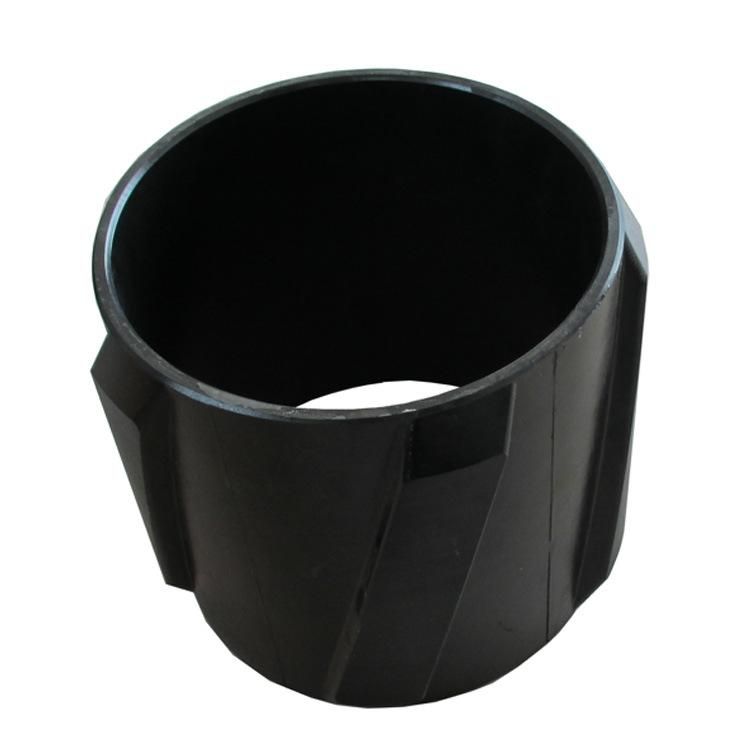

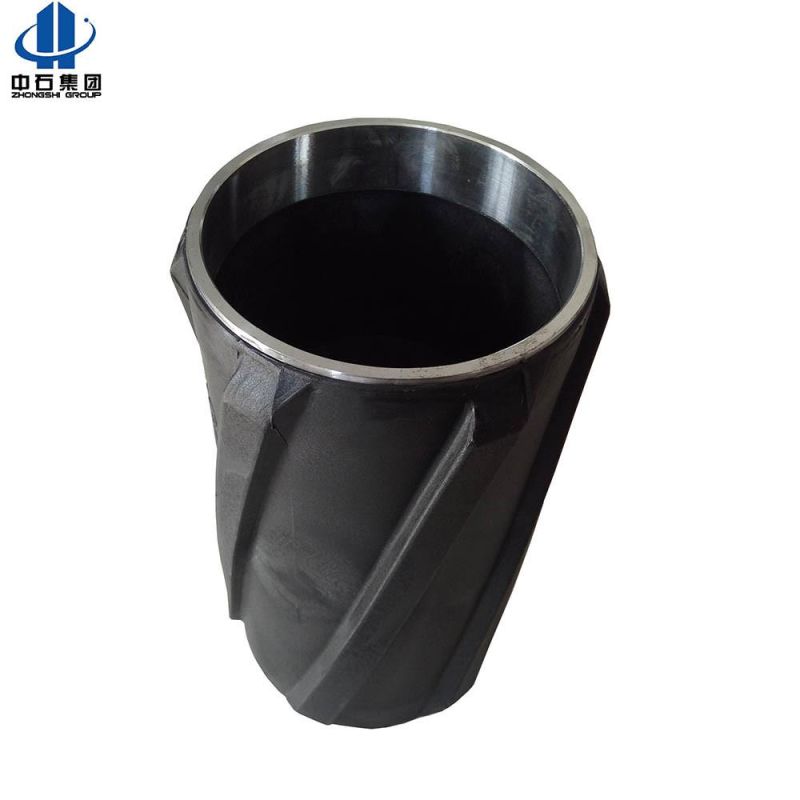

7 Inch Casing Pipe Thermoplastic Composite Centralizer
Puyang Zhongshi Group Co., Ltd.- Certification：ISO 9001:2000, ISO 9001:2008
- Surface Treatment：Galvanized
- Centralizer Type：Rigid
- Structure：Slider
- Material：Plastic
- Type：Centralizer
Base Info
- Model NO.：7′′x 8 1,2′′
- Blades：6PCS
- Length：245mm
- Samples：Available
- Markings：Available
- Transport Package：Wood Cases
- Specification：7′′ x 8 1,2′′
- Trademark：zhongshi
- Origin：China, Henan
- HS Code：84314310
- Production Capacity：5000PCS,M
Description
Hooping
thickness
mm)
Spring
Pieces
Non-weld casing centralizer
| Model(in) | Hooping In-Dia.(mm) | Hooping thickness (mm) | Hooping height(mm) | Total Length(mm) | Max. Out-Dia.(mm) | Spring Pieces |
| 5-1/2*8-1/2 | 142-148 | 3-5 | 90-120 | 650±50 | 225±5 | 5 |
| 7*9-5/8 | 181-186 | 3-5 | 90-120 | 650±50 | 255±5 | 6 |
| 7*8-1/2 | 181-186 | 3-5 | 90-120 | 650±50 | 235±5 | 6 |
| 8-5/8*12-1/4 | 223-228 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 9-5/8*12-1/4 | 250-255 | 3-5 | 90-120 | 650±50 | 330±5 | 8 |
| 10-3/4*12-1/4 | 274-276 | 3-5 | 90-120 | 650±50 | 330±5 | 9 |
| 13-3/8*17-1/2 | 342-347 | 3-5 | 90-120 | 650±50 | 450±5 | 11 |
| 18-5/8*24 | 476±1 | 3-5 | 90-120 | 600±50 | 610±5 | 12 |
| 20*26 | 510±1 | 3-5 | 90-120 | 600±50 | 660±5 | 12 |
