Downhole Drill Stem Testing Dst Tools Rature Disk Rd Sampler
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service:Provided
- Warranty:12 Months
- Manufacturing Process:CNC Milling
- Surface Treatment:Phosphating
- Operation Pressure:Atmospheric Pressure
- Material:Cast Steel
Base Info
- Model NO.:BBRD
- Application:Well Testing, Dst, TCP
- Working Pressure:10K, 15K Psi
- Transport Package:Wooden Box
- Specification:3-7,8", 5"
- Trademark:BOBAN & OEM
- Origin:China Mainland
- HS Code:8431431000
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. BBRD Application Well Testing, Dst, TCP Working Pressure 10K, 15K Psi Transport Package Wooden Box Specification 3-7/8", 5" Trademark BOBAN & OEM Origin China Mainland HS Code 8431431000 Production Capacity 50 Sets Per MonthProduct Description

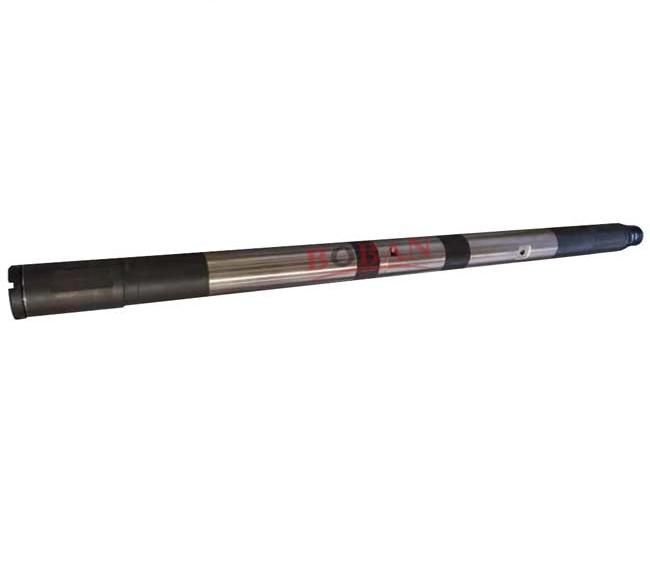

Rupture Disk Sampler is a full-bore sampler that operates under annulus pressure in cased wells. It is mainly used to obtain formation fluid samples under downhole pressure during full-bore drill stem testing operation. Before and after sampling, the strings are kept in the full-bore state, which will not affect the subsequent operations.RD sampler is controlled by a rapture disk that is operated by annulus pressure.
Features
Time-delay feature allows the sample to be trapped after a preset time. Different metering cartridge can be used to vary the closing time.
Full-open capabilities are retained after the tool has trapped its sample.
Several samplers can be run on a test to allow sampling at different times.
Specifications
Size | 3 7/8″ | 5″ |
O.D | 99mm | 127.5mm |
I.D | 45mm | 57mm |
LENGTH | 3055mm | 2198mm |
WORKING PRESSURE | 10K,15K psi | 10K,15K psi |
WORKING TEMPERATURE | -29ºC~+177ºC | -29ºC~+177ºC |
TENSILE STRENGTH | 1500KN | 2766KN |
BURST STRENGTH | 130MPa | 95MPa |
COLLAPSE RESISTANCE | 94MPa | 86MPa |
TORQUE STRENGTH | 19.5KN•m | 56KN•m |
CONNECTION TYPE | 2 7/8″CAS & 2 7/8″EUE | 3 7/8″CAS & 3 1/2″IF |
Kindly provide following information when request a quotation:
Tools sizes, Casing Size, Casing Weight
Working Pressure: 10K, 15K PSI
Temperature Working Conditions: Standard, H2S
BOBAN design and manufacture our own brand drill stem testing tools for cased hole, open hole and slim hole, and also provide replacement tools and spares for international brands with competitive rates and high performance, just let us know the accurate drawing No. and we will do others for you.
