• Model NO.：BW-150
• Inlet Pipe Diameter：51mm
• Power：7.5kw
• Max. Pressure：7MPa
• Max. Traffic：150L,Min
• Transport Package：Wooden Case
• Specification：560kg
• Trademark：ENWEI
• Origin：China
• HS Code：8525802200
• Production Capacity：5000 Pieces,Month

Basic Info.

Model NO. BW-150 Inlet Pipe Diameter 51mm Power 7.5kw Max. Pressure 7MPa Max. Traffic 150L/Min Transport Package Wooden Case Specification 560kg Trademark ENWEI Origin China HS Code 8525802200 Production Capacity 5000 Pieces/Month

Product Description

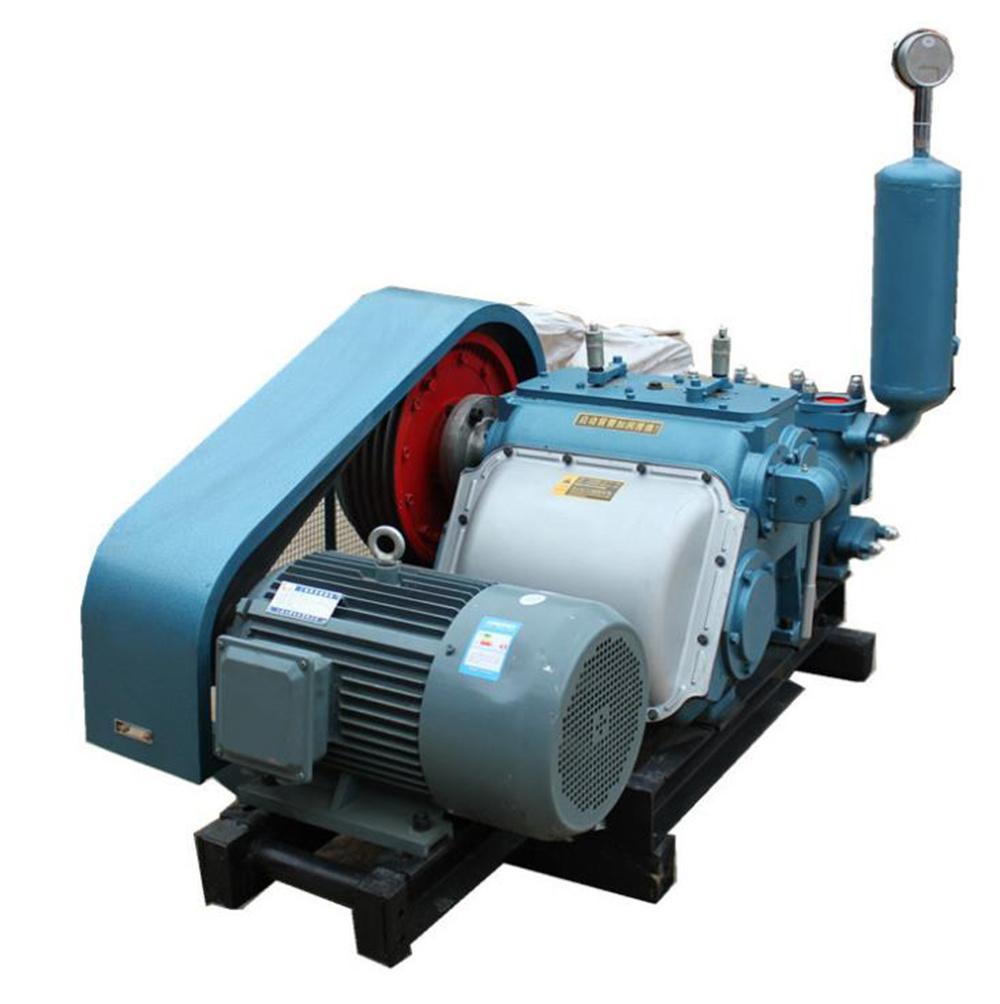

BW150 Horizontal Three Cylinder Single Acting Piston Small Mud Pump

Product parameters:


Model	BW150	BW160	BW250	BW320
Max. traffic	150L/min	160L/min	250L/min	320L/min
Max. pressure	7Mpa	10Mpa	6Mpa	8Mpa
Power	7.5kw	11kw	15kw	30kw
Inlet pipe diameter	51mm	51mm	76mm	76mm
Outlet pipe diameter	32mm	32mm	51mm	51mm
Weight	560kg	480kg	760kg	1000kg

Model BW-250 mud pump is a horizontal three cylinder reciprocating single acting piston pump, the pump with two cylinder and four file variable. The big cylinder for supporting the 1000 meters of large diameter drill, small cylinder for supporting the1500 meters of small diameter drill. Mainly used for the core drilling mud pump, can also be used for other aspects of mine grouting,drainage and long distance water supply and other purposes. The pump energy consumption, flexible operation, high quality durable,decomposition is good, easy to move.

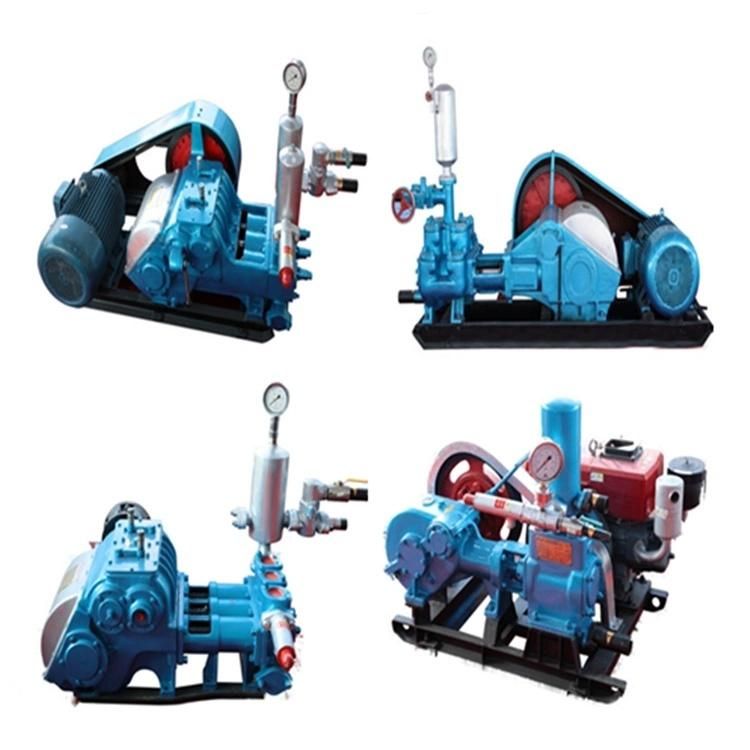

BW MUD PUMP :

A horizontal, triplex, single acting reciprocation piston pump. The pump can choose diesel motor

power, It has simple operation, convenient, can achieve close range or remote control.

2. This pump is a compact structure, smooth operation, high output pressure, longer life expectancy,

stable performance, good general and so on.

3. This pump adopts the car transmission,Can get six different discharge and pressure,Reasonable

configuration parameters selection,The construction technology can satisfy different requirements.

4. Mainly used drilling fluid in supply for 2000m about core drilling coal field geology,metallurgy

geology,hydrogeololgy,drilling fluid can use mud and water, the coal water etc.

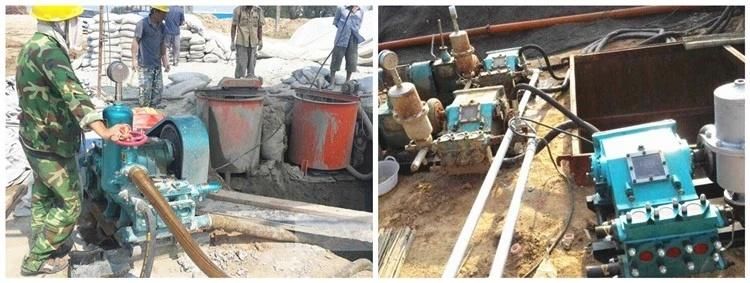

Application:

1.BW series slurry pump is widely used for grouting and mud jacking in engineering construction.
2.BW250 slurry pump have two cylinders with different diameters and four gear shifts.Output and drilling depth are adjustable,so it can be used to grout cement slurry or equipped with 1500m drilling machine.
3.BW160/10 slurry pump is widely used in railway, hydraulic engineering, metallurgical engineering, building construction, geological exploration, engineering exploration (within 1000m of the drilling depth)etc.
