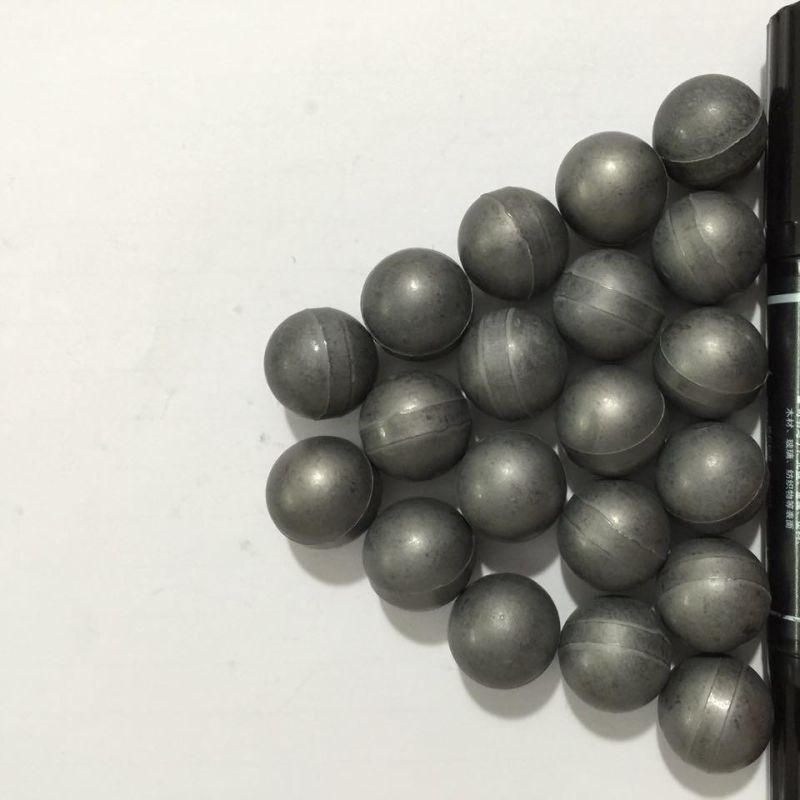

Valve Seat and Valve Ball for Tubing Pump Accessories Machinery Parts Made in China

Zhuzhou Sunrise Hardmetal Tools Co., Limited
  • Manufacturing Process：Stamping
  • Surface Treatment：Polishing
  • Operation Pressure：Atmospheric Pressure
  • Material：Tungsten Carbide
  • OEM：Acceptable
  • Transport Package：Standard Packing

Base Info

  • Model NO.：SR080
  • Specification：V11-106, 125, 150, 175
  • Trademark：Sunrise
  • Origin：China
  • Production Capacity：5 Tons,Month

Description


Dimensional SymbolV11-106V11-125V11-150V11-175V11-200V11-225V11-250V11-375
Ball-D
+0.020/-0.010
(+0.51/-0.25)
15.88
(0.625in)
19.05
(0.75in)
23.83
(0.938in)
28.58
(1.125in)
31.75
(1.25in)
34.93
(1.375in)
42.88
(1.688in)
57.15
(2.25in)
Seat-ID
± 0.050
( ± 1.27)
11.68
(0.46in)
13.97
(0.55in)
17.02
(0.67in)
20.96
(0.825in)
24.38
(0.96in)
26.92
(1.06in)
33.27
(1.31in)
43.18
(1.7in)
Seat-OD
+0.000/-0.005
+0.00/-0.13
20.14
(0.793in)
23.32
(0.918in)
29.67
(1.168in)
35.26
(1.388in)
37.54
(1.478in)
43.69
(1.72in)
51.05
(2.01in)
78.03
(3.072in)
Seat-H
+0.020/-0.010
(+0.51/-0.25)
0.500
(12.70in)
0.500
(12.70in)
0.500
(12.70in)
0.500
(12.70in)
0.500
(12.70in)
0.500
(12.70in)
0.500
(12.70in)
0.750
(19.05in)
