F1600 Mud Pump Triplex Piston Pump/ F1300 Mud Pump/ F1000 Mud Pump/ Second Hand Mud Pump
Dezhou Rundong Petroleum Machinery Co., Ltd.- Warranty：12 Months
- Certification：ISO 9001:2000
Base Info
- Model NO.：F1600
- Power Source：Electric
- Operation Pressure：Atmospheric Pressure
- Material：Cast Steel
- Type：Triplex Mud Pump
- Transport Package：Export Wooden Box
- Specification：F 1600
- Trademark：ds
- Origin：China
- HS Code：8431431000
- Production Capacity：50 Set, Year
- Package size per unit product：460.00cm * 220.00cm * 280.00cm
- Gross weight per unit product：25500.000kg

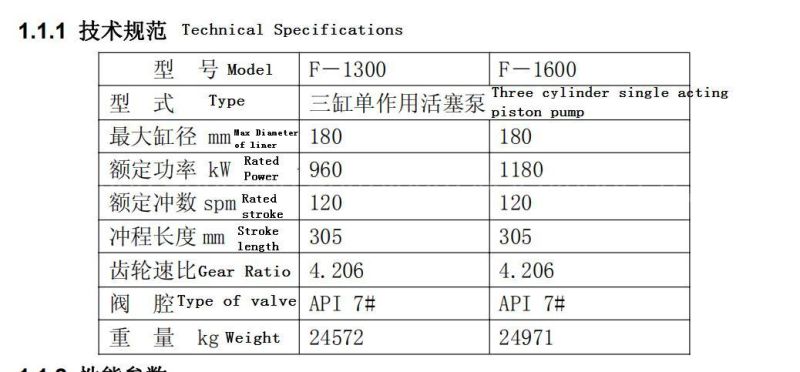

Description
(6-3/4" x 7-1/2")
(6-3/4" x 9")
(6-3/4" x 10")
(7" x 12")
(203mm Approx)
(254mm Approx)
(305mm Approx)
(305mm Approx)
(305mm Approx)
(1-1/4" x 1-1/4")
(1-3/4" x 1-3/4")
(2" x 2")
(2" x 2")
3. Composition of F series Mud Pump
The drilling pump is mainly composed of a power end and a hydraulic end.
The power end includes: frame, pinion shaft, crankshaft, crosshead, Jiexuan, etc.
Gears, bearings and crossheads at the power end adopt a dual lubrication system combining forced lubrication and splash lubrication, thus ensuring good lubrication conditions.
The hydraulic end includes: cylinder assembly, valve assembly, cylinder liner, piston, suction and discharge manifold, etc.
The cylinder liner piston of the liquid end is supplied with cooling lubricant (water) by a centrifugal spray pump for cleaning, cooling and lubrication.
The cylinder liner gland and the cylinder liner flange, the cylinder liner flange and the gland, the valve cover and the liquid cylinder of the hydraulic end all adopt the zigzag thread connection fixing mechanism.
In order to prevent air locks and reduce outlet pressure and fluctuations, a suction air bag and a discharge air bag are installed on the elbow flanges of the water inlet pipe and the discharge pipe of the pump, respectively.
In order to ensure that the pump does not exceed the specified working pressure. At the outlet and the other side of the pump, a shear pin type high pressure safety valve is installed.
4. F series Mud Pump Features
The pump has the characteristics of advanced structure, small volume, reliable use, good interchangeability, and easy maintenance.

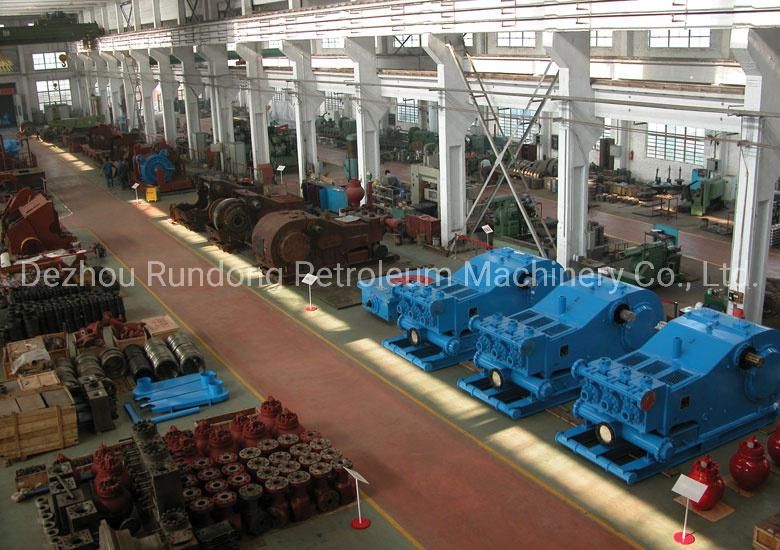

5. Overview of Company
Dezhou Rundong Petroleum Machinery Co., Ltd is a professional company with 18 years history in manufacturing of petroleum machinery products. Our company has an area of 17500 square meters, 12 technical personels, 18 quality inspection personels, 126 workers and 9 patents. Annual output value is up to USD $14 million. After comparing with foreign famous brand products during testing on offshore of COSL and various oilfields , some products enjoy the same quality level with them both in processing technic and service life. Our company has made excellent contribution in pushing Chinese petroleum machinery industry forward.
6. Our certificates & patents
7. Pacakge of our products
8. Customers' visiting shows

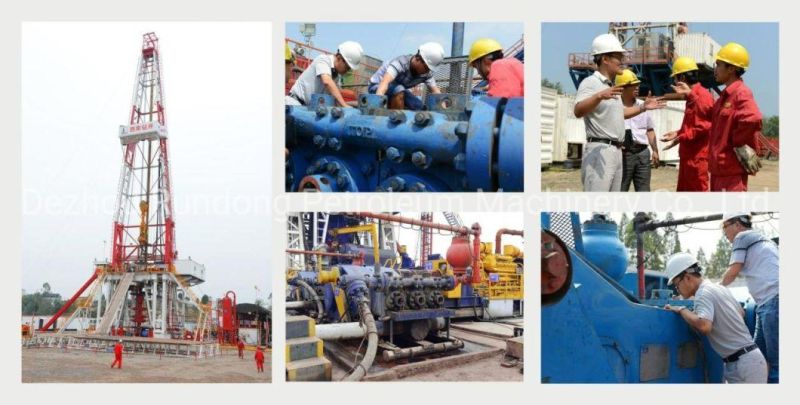

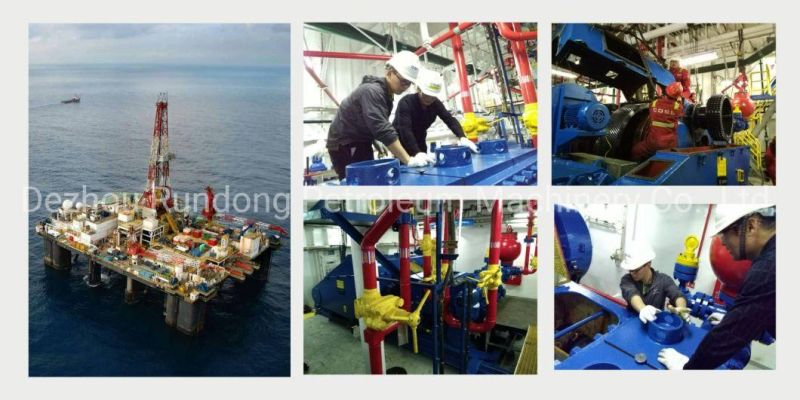

9. After-sales service(on-well service)
10. Transportation
11. FAQQ1: Are you manufacture?
A1: Yes, we are. We have been in drilling industry for 20 years and some of our products has enjoyed high reputation already, such as drilling tools, mud pump parts etc. Meanwhile, we trade other accessories to save customers' energy and shipping cost.
Q2: How to believe that our products have high quality?
A2: We are first-choice supplier of COSL, SINOPEC, CNPC since we established our company. Our products have been tested compared with some foreign famous brand on on-shore and off-shore drilling projects many times. Our products show their high-cost-performance always.
Q3: How can I choose the most suitable products ?
A3: Please let us know your needed products name and specifications. Our professional technical department will suggest the most suitable products to you according to your fact demands.
Q4: Could you supply samples?
A4: Yes, we could. We are glad to supply samples, but with sample fees.
Q5: Whether you can manufacture strange kind of products, even the model isn't clear ?
A5: Yes, we could. If you can provide the drawings, we can manufacture as per your drawings. If you don't have drawings, the samples are workable. After receiving your samples, we can measure and make a drawing, then manufacture as per the drawing.
Q6: What is your trade terms?
A6: EXW, FOB, CFR and CIF etc. all acceptable.
Q7: What's the Payment Terms ?
A7: 30% T/T after signing the contract and 70% balance before delivery.
Q8: What's the delivery time?
A8: For stocks in available, it could be shipped out within 3 days after receiving the prepayment. For products need to be produced, usually 35 working days.
Q9: What's the warranty time?
A9: Normally, it is 12 months after you receiving our products.
