• Model NO.：F1600
• Material：Cast Steel
• Type：Mud Pump
• Standard：API
• Transport Package：Export Standard
• Trademark：BOMCO
• Origin：China
• HS Code：8431431000
• Production Capacity：5000 Units Per Year
• Package size per unit product：870.00cm * 660.00cm * 67.00cm
• Gross weight per unit product：120.000kg

Basic Info.

Model NO. F1600 Material Cast Steel Type Mud Pump Standard API Transport Package Export Standard Trademark BOMCO Origin China HS Code 8431431000 Production Capacity 5000 Units Per Year

Packaging & Delivery

Package size per unit product 870.00cm * 660.00cm * 67.00cm Gross weight per unit product 120.000kg

Product Description

A globally professional manufacturer who is capable of producing mud pumps with a complete range of specifications and a large quantity. The P, F and 3NB series mud pumps, designed and produced by the company, receive good reputations from domestic and oversea users depending on excellent performance and reliable quality.

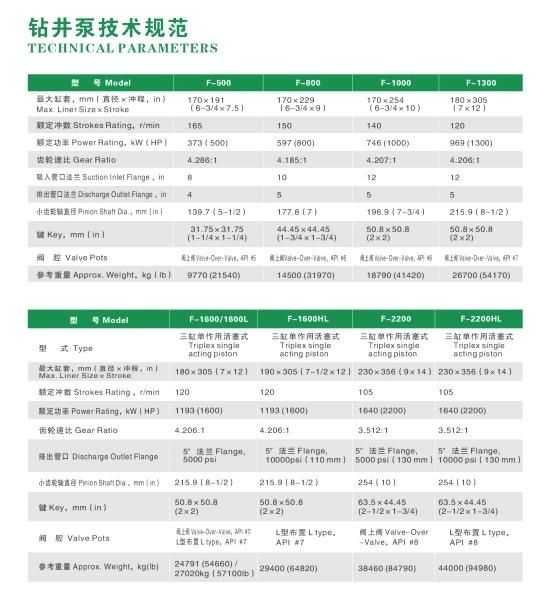

F SERIES MUD PUMP
Technical Features
Power end: The shell is of welding structure made of steel plates, and internal stress is eliminated after welding. The power end drive gear is a transmission gear, witch runs smoothly with high efficiency and a long service time. Crankshaft is a hollow one piece casting. Power end is splash lubrication.
Fluid end: the suction valve and the discharge valve conform to ASA and API specifications.
It adopts clamp connection between the piston rod and the intermediate rod.
The valve seat bores have a bottom shoulders to prevent the sinking of the valve seat. The pistons and cylinder sleeves are spray lubricated and cooled, which allow an extended service life.
Damageable pieces have strong currency.
