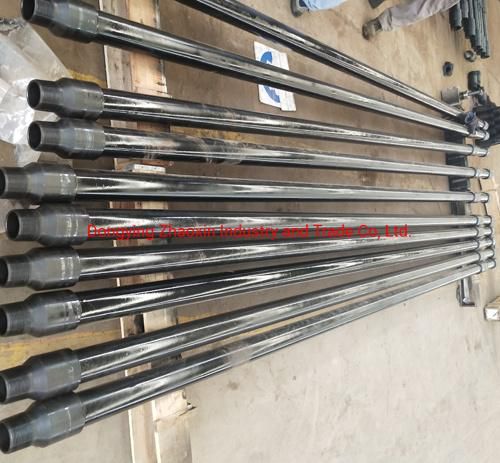

Downhole Gas Anchor for P. C. Pump
Dongying Zhaoxin Industry and Trade Co, Ltd.- After-sales Service：Yes
- Warranty：1 Year
- Manufacturing Process：Casting
- Surface Treatment：Galvanized
- Operation Pressure：Vacuum
- Material：Plastic
Base Info

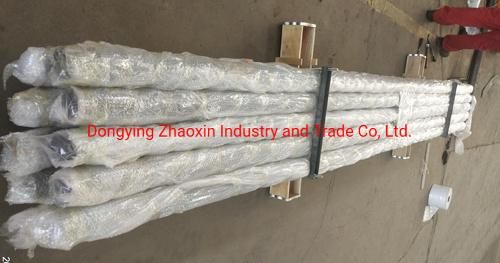

- Transport Package：Wooden Case
- Specification：API
- Trademark：zx
- Origin：China
- HS Code：8431431000
- Production Capacity：3000PCS
Description
Basic Info.
Transport Package Wooden Case Specification API Trademark zx Origin China HS Code 8431431000 Production Capacity 3000PCSProduct Description
The Gas Anchor has been designed as a continuous flow downhole gasseparator to be used in conjunction with progressing cavity pumps. The uses centrifugal forces
to separate the gas from the produced liquids, before they enter the pump. Liquids will be
carried through into the pump suction while the separated gases are forced to migrate up the
annulus.
1). The Gas Anchor must be installed in the string below the pump.
2). When the pump is landed in the well, the P.C. Anhcor should be above the perforations.
3). If it is desired or necessary for the fluid intake to be below the perforations, tubing may be
ran below the gas anchor (tail joints).
| AnchorType | LZX-113 | LZX-140 |
| Max OD mm | 113 | 140 |
| Max OD of cup mm | 132 | 165 |
| Connection thread type | 2 7 /8TBG | 2 7 /8TBG |
| Max length mm | 3200 | 3200 |
| Suitable casing size in | 5 1 /2'' | 7'' |
