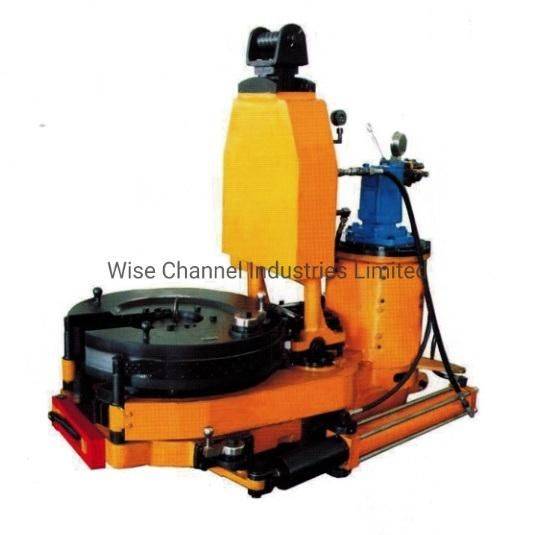

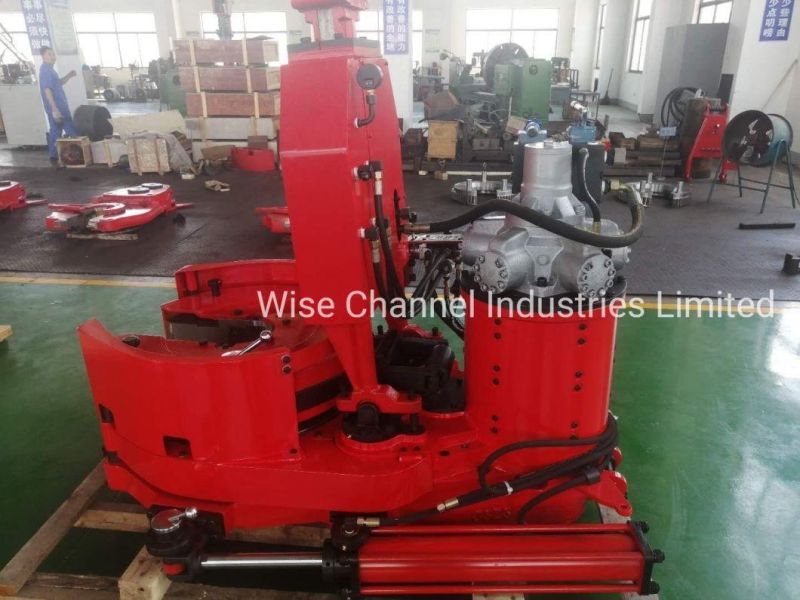

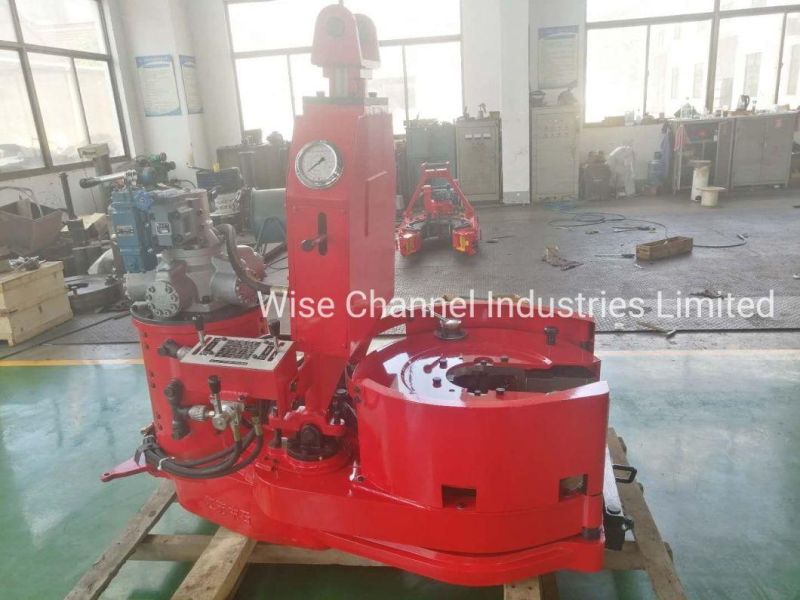

Good Quality Zq203/100 Drill Pipe Hydraulic Power Tongs for Oil Field
Wise Channel Industries Limited- Power Source：Hydraulic
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
Base Info
- Model NO.：ZQ203,100
- Structure：Vertical
- Material：Stainless Steel
- Range of Master Tong：3 1,2"~8"
- Rate Torque of High Gear：9500n.M
- Rated Troque of Low Gear：100000n.M
- Rated Speed of High Gear：40 R,Min
- Rated Speed of Low Speed：2.7 R,Min
- Max. Flow：114L,Min
- Dimension：1700*1000*1400mm
- Weight：2400kg
- Rated System Pressure：16MPa
- Pneumatic Pressure：0.5~0.9MPa
- Transport Package：Plywood Box
- Specification：XQ140
- Origin：Jiangsu China
- HS Code：8413910000
- Production Capacity：1000units Per Year
- Package size per unit product：189.00cm * 120.00cm * 186.00cm
- Gross weight per unit product：2380.000kg
Description
Main parameters for drill pipe hydraulic power tong
| Model | ZQ127/25Y | ZQ203/100 | ZQ203/125 |
| Range of power tong | 2 7/8"~5 1/2" | 3 1/2"~8" | 3 1/2"~8" |
| Rated torque of high gear | 3500N.m | 9500N.m | 10000N.m |
| Rated troque of low gear | 25000N.m | 100000N.m | 125000N.m |
| Rated speed of high gear | <=65 r/min | 40 r/min | 33r/min |
| Rated speed of low gear | <=10 r/min | 2.7 r/min | 2.2 r/min |
| Rated system pressure | 16MPa | 16Mpa | 18Mpa |
| Maxiumum flow | 120L/min | 114L/min | 120L/min |
| Dimenison(mm) | 1250*780*1000 | 1700*1000*1400 | 1750*1060*1680 |
| Weight(with backup tong) | 650kg | 2400kg | 2500kg |

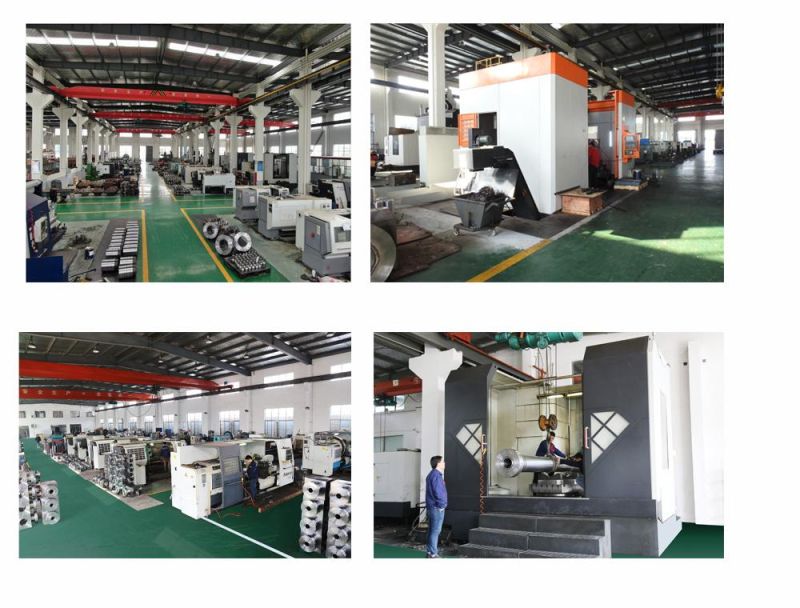

Production Lines:
Test Equipment:
