API 16c Oilwell Use Short Radius Long Sweep Swivel Joint
Liaoning Tolian Technology Development Co, . Ltd- After-sales Service：Provide
- Warranty：12 Month
- Manufacturing Process：CNC Milling
- Surface Treatment：Oxidation
- Operation Pressure：Atmospheric Pressure
- Material：High Manganese Steel, Alloy
Base Info
- Thread：API
- Application：Oil Field
- Use：Well Drilling
- Type：Drilling Tools
- Product Name：Nmdc
- Other Nacme：Taper Tap
- Raw Material：Alloy Steel
- Transport Package：Wooden Case
- Specification：According to the custom
- Trademark：Tolian
- Origin：China
- HS Code：8431431000
- Production Capacity：100piece,Year
Description

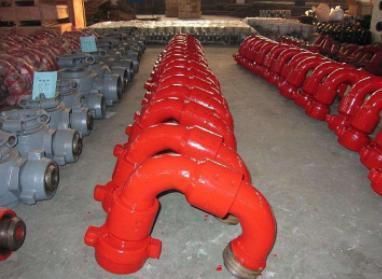

1.Product name:Short Radius of the Elbow or Short Radius Swivel Joint
2.Pressure of work : 5000PSI to 15000PSI
3.Norminal Menstruation: 1" ~4"
4.Working Temperature: -29degree ~121 Degree(PU grade)
5.Standard :API 16C &NACE MR0175
Product ParameterTechnical Parameters

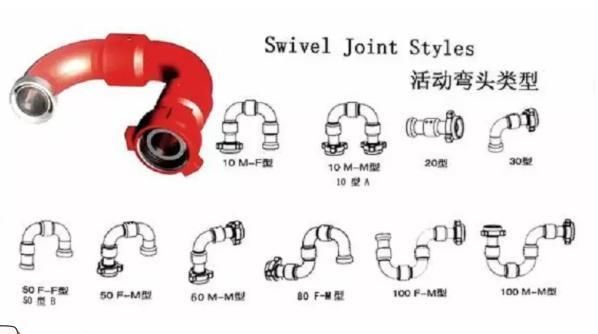

Description | Specification | Model | End Connection |
Short radius swivel joints | 1''x3500psi(25Mpa) 1"-1/2x6000psi(42Mpa) 1"-1/2x10000psi(70Mpa) 2"x6000psi(42Mpa) 2"x10000psi(70Mpa) | Style 10,50 Style 10,50 Style 10,50 Style 10,50 Style 10,50 |
LP Female Thread LP Female Thread LP Female Thread NPT Female Thread
|
1-1/2"Long radius swivel joints | 1"-1/2x10000psi(70Mpa) 1"-1/2x10000psi(70Mpa)
| Style 10 Style 50 | LP Female LP Female |
2"Long radius swivel joints | 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x10000psi(70Mpa) 2"x15000psi(105Mpa) 2"x15000psi(105Mpa) 2"x20000psi(140Mpa) | Style 10,20,50 Style 10,50 Style 10,50 Style 10,50,80,100 Style 20,30,60 Style 10,50,80,100 Style 20,30,60 Style 10,50
| LP or TBG Female MxF(Tr100x12.7) MxF(Tr100x12) MxF,MxM,FxF MxF(Tr/America) MxM MxF,MxM,FxF MxF(Tr/America)MxM MxF,MxM |
3"Long radius swivel joints | 3"x10000psi(70Mpa) 3"x10000psi(70Mpa) 3"x10000psi(70Mpa) 3"x15000psi(105Mpa) 3"x15000psi(105Mpa) 3"x20000psi(140Mpa) | Style 20,50 Style 10,50,80,100 Style 20,30,60 Style 10,50,80,100 Style 20,30,60 Style 10,50 | Lp or TBG Female MxF,MxM,FxF MxF(Tr,America) MxM MxF,MxM,FxF MxF,MxM MxF,MxM |
-----------------------------------------------------------------
