Self Made 14*8 Trailer Driven Chassis Carrier Vehicle for Xj750 Zj30 Workover Rig Truck Mounted Drilling Rig
Puyang Chensheng Petroleum Technology Co., Ltd.- After-sales Service：1year
- Warranty：1year
- Manufacturing Process：Casting
- Surface Treatment：Sand Blast
- Operation Pressure：Atmospheric Pressure
- Material：Stainless Steel
Base Info
- Model NO.：14*8
- Transport Package：Wood Box
- Origin：Puyang Henan
- Production Capacity：100
Description
Basic Info.
Model NO. 14*8 Transport Package Wood Box Origin Puyang Henan Production Capacity 100Product Description

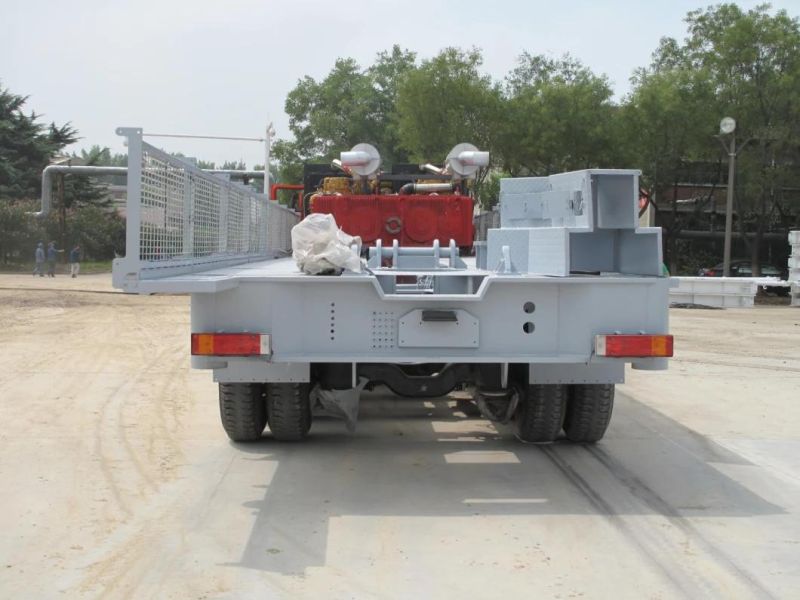

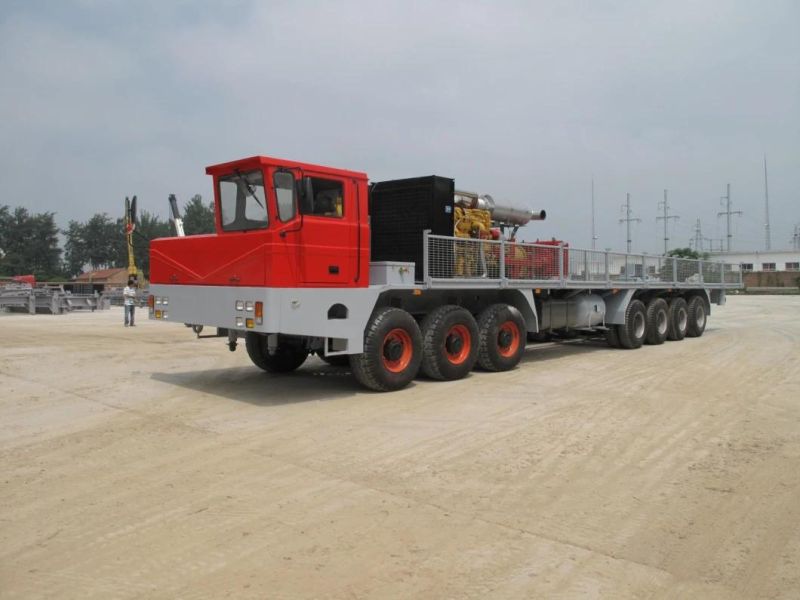

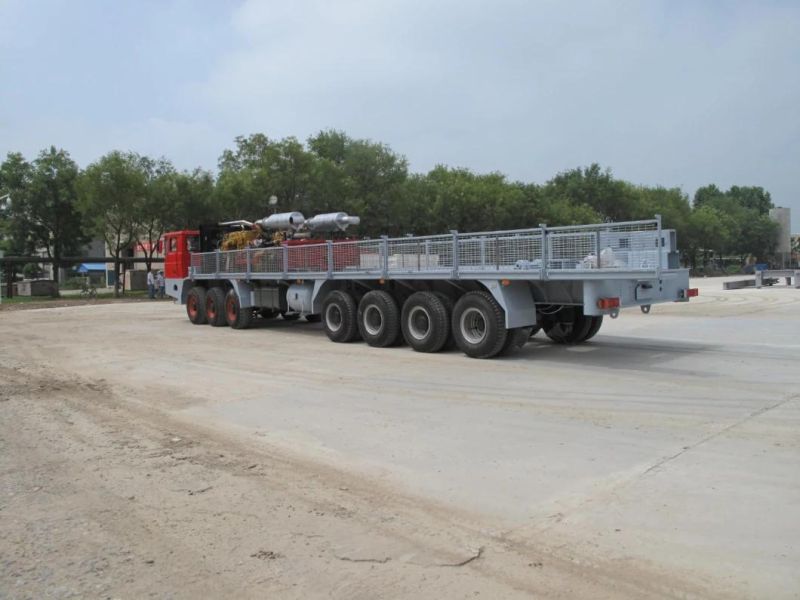

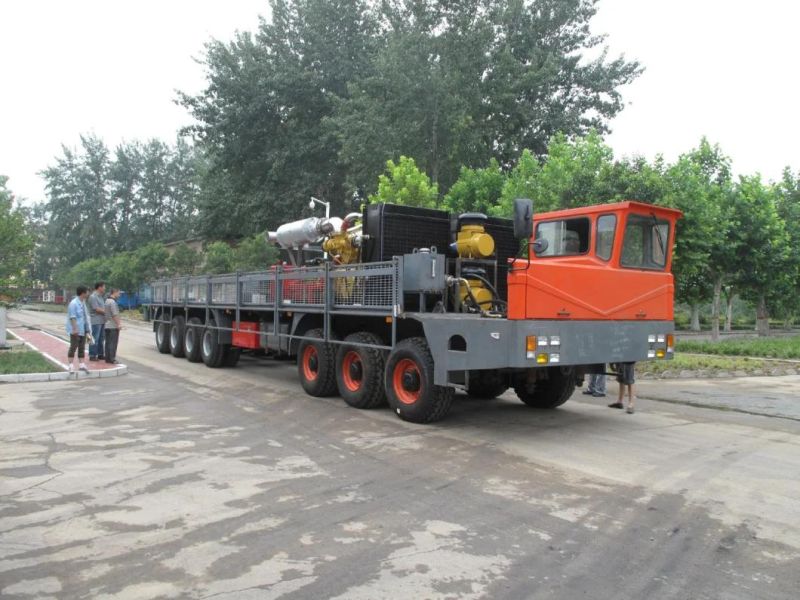

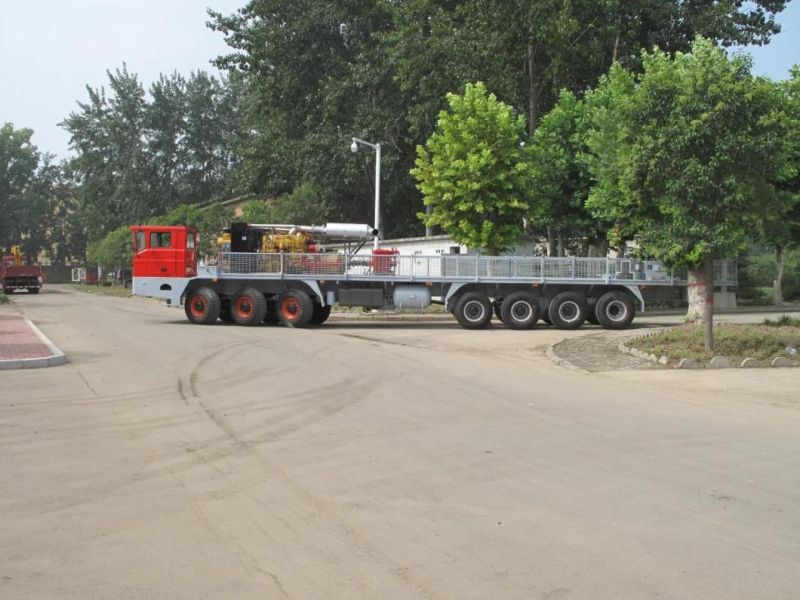

Chassis for XJ350/450/550/650/750/850
The chassis of drilling rig is mainly used to transport the mast, drum, winch, hydraulic fuel tank and other drilling and repair equipment, using the 148 drive type, the engine is mounted, the power transmission adopts hydraulic transmission, and the cab is a biased single door and single seat form.When the upper equipment is working, the chassis is in a parking state, when the engine provides power for the special equipment to meet the needs of the upper equipment. The normal operating environment temperature is-20ºC to + 40ºC, and the driving road conditions are conventional road conditions.The chassis of drilling car meets the requirements of SY / T 6584 and SY / T 5534 standards, the design and manufacturing of its main components meet the requirements of GB7258 standard, and the requirements of ISO9001 quality assurance system
| Driving type | 14×8/14×10/12×8/10×8/ 6×6 |
| Min turning Dia. | 21m (69ft)/42m/34m/38m |
| Max. climbing capacity | 20%/30%/20% |
| Min. ground clearance | 281mm (11")/250mm/ 275mm |
| Tire model & quantity | 21.00-25,12ea+5ea |
| Max. speed | 45km/h/ 50km/h |
