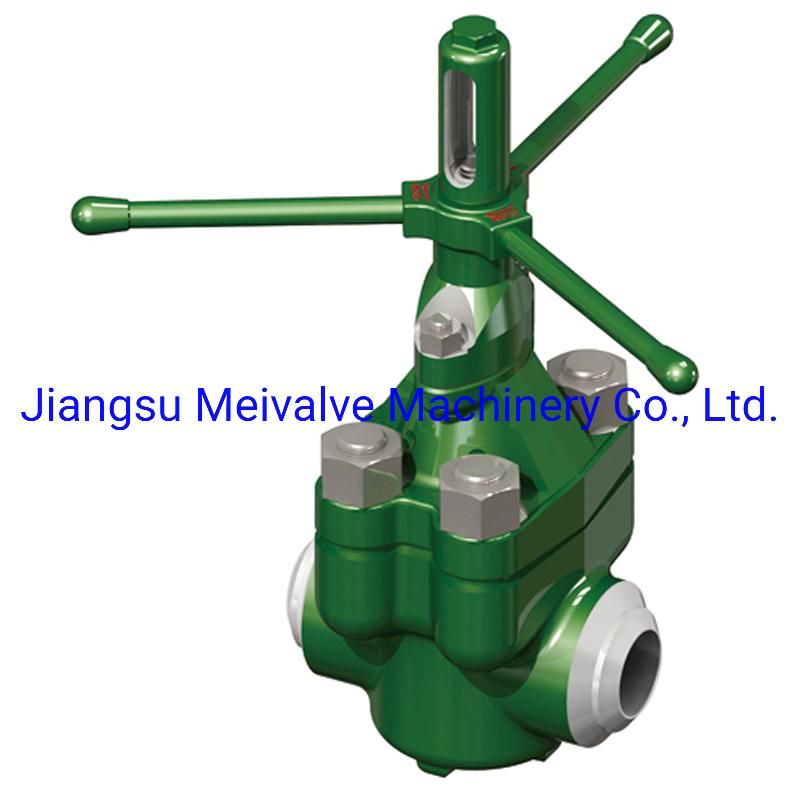

API 6A "Demco" Mud Gate Valve Casting Body Mud Valve with High Pressure
Jiangsu Meivalve Machinery Co., Ltd.- Manufacturing Process：Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Atmospheric Pressure
- Material：Cast Steel
- Transport Package：Wooden Case
- Trademark：Apimeivalve
Base Info
- Origin：China
- HS Code：8431431000
- Production Capacity：10000 Sets,Year
Description
Basic Info.
Origin China HS Code 8431431000 Production Capacity 10000 Sets/YearProduct Description
1.API 6A Demco DM Mud Gate Valve or Mud Valve is engineered for the rigorous requirements of abrasive and erosive service conditions in oilfield applications, such as mud, cement, fracturing and water service.
2.Demco series DM mud gate valves mainly come in four types of end connections, the Butt-Welded End type, the Threaded End type, the Flanged End type, and the Hammer Union End type(Such as Fig1502, Fig1003).
3.Popular valve sizes include 2", 3", 4", 5" and 6" .
4.API 6A DM mud gate valves can be hard seal or soft seal.
5.DM Mud Gate Valves are strictly designed, manufactured, and tested in accordance with API-6A standards.
6.They are suitable for both standard and H2S service. DM mud gate valve repair kits are also available.
7.There are two models of sealing mechanism in mud valve, which are metal to metal seal and rubber seal.
1.Standard:API Spec 6A
2.Working Bore: 2",3",4",5",6"
3.Specification level:PSL1,PSL2,PSL3,PSL3G,PSL4
4.Material level: AA,BB,CC,DD,EE,FF,HH
5.Temperature level: -46°C~121°C(Class LU)
6.Working Pressure:2000PSI,3000PSI,5000PSI,7500PSI
7.Connection format : Flange,Thread,Union,
