Air Motor Piston Air Motor

Yantai Petroleum Machinery Co., Ltd.
  • Colour：as Customers′ Need
  • Certifications：API,CCS,ISO9001-2008
  • Transport Package：Iron Boxes or Hard Wooden Cases
  • Specification：API,CCS,ISO,CE certifications
  • Trademark：DA LI
  • Origin：Yantai City, Shandong Province, China

Base Info

  • Model NO.：TMY13
  • Production Capacity：1000sets Per Month

Description

Basic Info.

Model NO. TMY13 Production Capacity 1000sets Per Month

Product Description

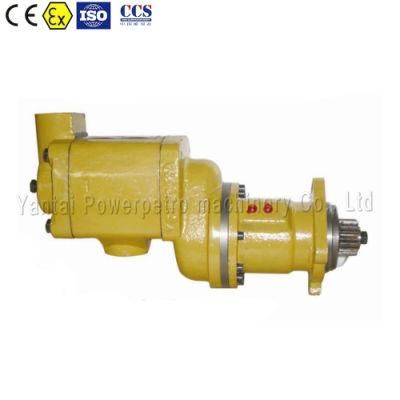

High torque TMY13 air motor fro Atlas CM351 Crawler Drilling Rig
Brief Introduction:
TMY13 vane air motor is a kind of energy conversing device, which adopts compressed air to rotate vanes, changing air pressure energy into mechanical energy and outputting driving power.

Main Features:
1. Widely used in minings, oilfields, constructions, smelting, paper making, pharmacy, chemicals, etc, . This motor is ideal mated driving machine for large-scale drilling machines.
2. Stepless in speed, adjusting air volume to change rotate speed and power.
3. Change air-inlet and air outlet direction to rotate and counter-rotate the motor in short time, with no impact and even not need to relieve the load.
4. The anti-load function enables the motor to rotate at low speed when overload, and regain high speed when overload relived.
5. Stable under inflammable, explosive, outdoor, wet, damp and other extremely conditions.
6. Concise structure, compact in size and light in weight, easy to operate and convenient to maintain.
7. High starting torque enables starting with load, fast and reliable to start and stall.


Lacey Sun
Yantai Petroleum Machinery Co., Ltd.
Mob: +86-18253586062

Working Pressure(MPa)No-load speed(r/min)Rated Speed(r/min)Rated power(kW)Air Consumption(L/S)
0.4500025008130
0.55400270011164
0.635700285014200
0.75870293017230
