• Standard：API 16A
• Transport Package：Wooden Package
• Specification：3000psi to 10000psi
• Trademark：LFM
• Origin：China
• Production Capacity：1000

Basic Info.

Standard API 16A Transport Package Wooden Package Specification 3000psi to 10000psi Trademark LFM Origin China Production Capacity 1000

Product Description

Product Description

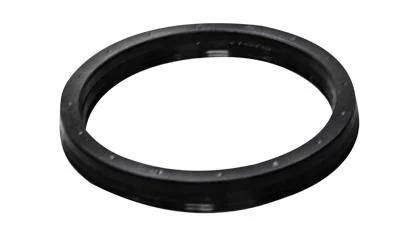

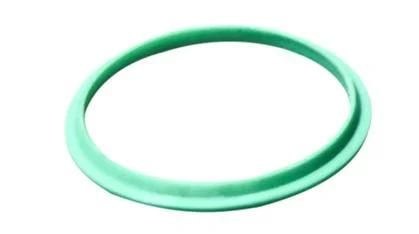

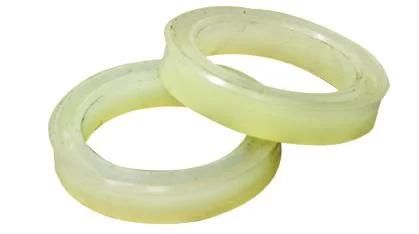

The Y/W/O type seal ring is a special high performance product is made up of the high quality rubber or the high quality rubber combined with fabric, which conforms to the <The petrol base oil type pipeline and the rubber seal material for connection> HG/T3093, GB/T 10708, ASTM D412 and ASTM D2240 standard.
The main advantage of the seal ring is high elastic, aging resistant and good stability. It is adapting for the petrol mechanic industry, which shares a high cost performance compared to the other same type imported seal ring.


  Reasonable structure, best size to match, easy to assemble and remove
  Seal temperature range: -40ºC~+150ºC
  Static and dynamic seal both available
  Small dynamic friction force
  High mechanic strength
  High stability, not easy to swell in the petrol medium
  High corrosion resistant, not easy to age, long working age
  High activity, adaptation
  Compensate a big seal and angle tolerance
  Simple structure, easy to use and maintain
  Good wear resistance
  Good physical mechanical performance, high cost performance

  Hardness: 60±5,,70±5,80±5,88±5
  Tensile strength: ≥15MPa
  Tensile elongation rate: ≥250%:~≥100
  Compress to permanent deformation: B type, 100ºC×22h,≤20%
  Hot air aging: 100ºC×70h, hardness 0~+10; the strength change rate≤15%, the change rate of elongation rate≤25%
  1# standard oil resistant: 100ºC×70h, change of hardness-3~+8, change of volume -10~+5
  3# standard oil resistant: 100ºC×70h, change of hardness-14~0, change of volume 0~+16
  Low temperature brittleness: -18ºC;-40ºC;-60ºC
  Compressing stress loosen, type sample, standard room temperature×7d, ≤15%
  Compressing stress loosen, type sample, standard room temperature×90d, ≤22%
  Effects of oil resistant, leaking preventing, waterproof, decreasing vibration and noise, seal and damping.

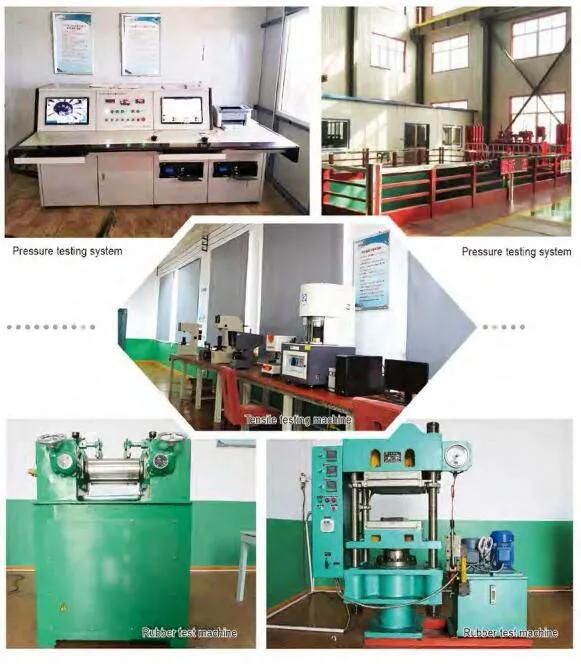

Factory

Certificates

FAQ

Q1: What's your packing?
A:  Regular packing.

Q2: What's your delivery?
A:  Normally, about 30-45 days.

Q3:  What are the shipping methods?
A: Ocean shipment to the port near from you; Air shipment to the shipment near from your company; Door to door service by  international express.

Q4:  What about the payment options?
 A: In general, we accept T/T.

Q5:  When can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price,please call us or tell us in  your  email so that we will detail with your inquiry priority.
