• Model NO.：FKQ 1280-8
• Specification：FKQ 1280-8
• Trademark：Jelin
• Origin：China
• HS Code：8481809000
• Production Capacity：40000

Basic Info.

Model NO. FKQ 1280-8 Specification FKQ 1280-8 Trademark Jelin Origin China HS Code 8481809000 Production Capacity 40000

Product Description

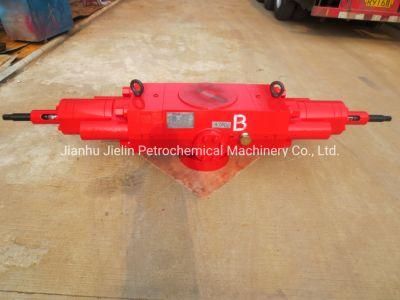

Features of U type Ram BOP:
1) Pressure part is forging, has better strength and impact toughness, can avoid the defects of the casting;
2) Intermediate flange adopts radial floating seal, open and close by hydraulic pressure, changing of ram is fast and convenient;
3) Equipped with tandem booster, compared with traditional ram bop with shearing capacity, the new one is smaller and function of which is constant;
4) Abundant reserve of ram packer, adopts self sealing;
5) Manual locking device is standard configuration, ensure the ram keep closing in case of hydraulic pressure loss;
6) Manual Locking Device, Hydraulic locking Device, and Tandem Booster can be configured at corresponding place according to client's requirements, and its interchange is convenient.
Working pressure: 3000PSI to 15000PSI;
Main bore: 7 1/16" to 13 3/8"

Style	Manual, Hydraulic
Bore (in)	7 1/16~21 1/4
Working Pressure Psi	5000~15000
Hydraulic pressure Mpa	Max10.5
Piston bore(mm)	150~355
Locking type	Manual
Weight(kg)	1046~16763
