High Temperature and High Pressure Packer
Zhenjiang Boral Machinery and Equipment Co., Ltd.- Certification：ISO 9001:2008, API
- Power Source：Hydraulic
- Operation Pressure：Atmospheric Pressure
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
- Structure：Vertical
- Material：Cast Steel
Base Info
- Model NO.：HP
- Standard：API 11d1
- Transport Package：Pallet
- Trademark：EXTRONG
- Origin：China
- HS Code：8431431000
- Production Capacity：5000 Pieces Per Year
Description
Basic Info.
Model NO. HP Standard API 11d1 Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per YearProduct Description
Model HP Packer
Model HP packer is designed for zonal isolation in extreme high pressure, high temperature environments with maximum ratings of 10,000psi at 350oF (no axial loads). The packer is hydraulic-set and could be retrieved by retrieving tools.

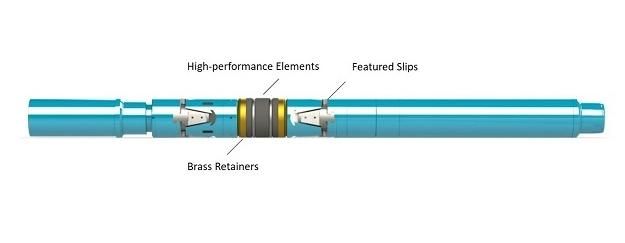

Two sets of wedge shaped slips were installed above and below the elements, the featured slips enable a more balanced gripping force distribution with less risks of causing casing distortion. The element consists of 3 pieces of high temperature elastomers, brass retainers are installed at both ends to ensure full expansion of elastomers under high temperatures.
The HP packer could be used for fracturing/acidizing, production or other zonal isolation purposes where extra pressure bearing is required, and higher temperature is present.
