Isolation Packer for Multiple Gravel Pack Tool System

Zhenjiang Boral Machinery and Equipment Co., Ltd.
  • Certification：ISO 9001:2008, API
  • Power Source：Hydraulic
  • Operation Pressure：Atmospheric Pressure
  • Applicable Medium：Mud, Water, Natural Gas, Crude Oil
  • Structure：Vertical
  • Material：Cast Steel

Base Info

  • Model NO.：GL
  • Standard：API 11d1
  • Transport Package：Pallet
  • Trademark：EXTRONG
  • Origin：China
  • HS Code：8431431000
  • Production Capacity：5000 Pieces Per Year

Description

Basic Info.

Model NO. GL Standard API 11d1 Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per Year

Product Description

Isolation Packer for Multiple Gravel Pack Tool System

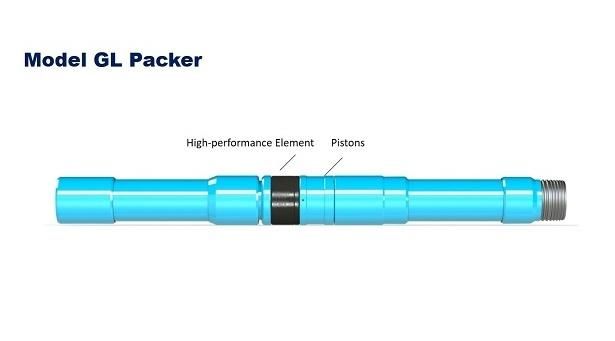

Model GL Packer

Model GL packer is an isolation packer used in multiple gravel pack tool systems, it has a simple structure that allows it to be set by hydraulic pressure and released by pulling up.

Multiple GL packers could be used in a completion string to isolate perforated zones. In many cases it is used in combination with model FS packer as the 'middle' packer of the string, a service tool is run in position to set the GL packers before gravel packing certain zones. A seal bore extension must be connected to create the pressure sealing to set the packer.

GL packer could be also used for water shut-off, and other isolation purpose.
