Petroleum Equipment & Machinery

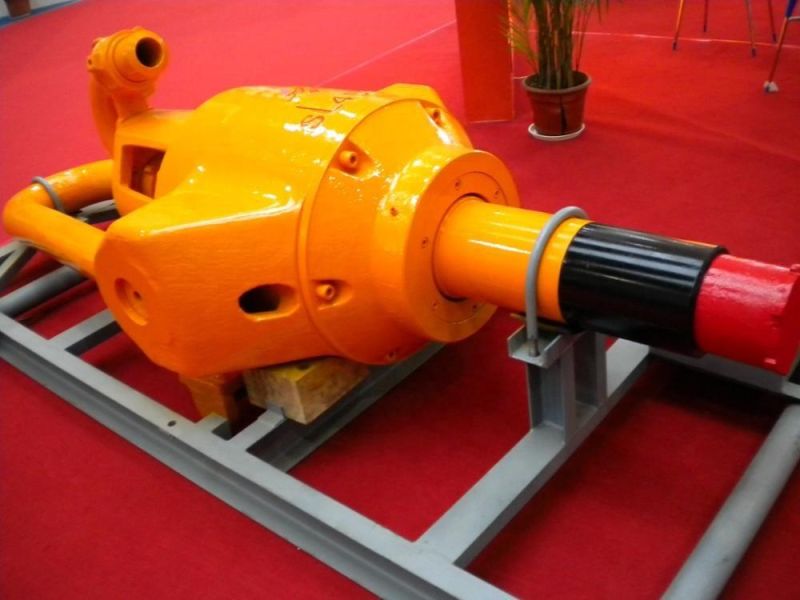

API 4f China Oil Drilling Rig Water Swivel Oil Rig Spare

Shandong Beyond Petroleum Equipment Co., Ltd.
  • After-sales Service:After Service Accepted
  • Warranty:After Service Accepted
  • Manufacturing Process:Forging
  • Surface Treatment:Spray-Paint
  • Operation Pressure:Atmospheric Pressure
  • Material:Alloy

Base Info

  • Model NO.:SL135
  • Transport Package:Customized
  • Trademark:Beyond
  • Origin:China

Description

Basic Info.

Model NO. SL135 Transport Package Customized Trademark Beyond Origin China

Product Description

We supply a full line of drilling rig packages: skid-mounted drilling rigs, truck-mounted drilling rigs and trailer-mounted drilling rigs. Our skid-mounted drilling rigs include diesel electric AC/ VFD  or DC/SCR drive rigs, mechanical-electric combined drive rigs, and mechanical rigs (Belt or Chain transmission), from 450 HP to 3,000 HP (Rated Drilling depth: 1,500-9,000 m). Our truck-mounted drilling rigs range from 550 HP to 1,000 HP.
ItemSL135SL225SL450
Max. Static Load(KN)135022504500
Max. Rotary Speed(r/min)300300500
Max. Working Pressure(Mpa)353535
Connections for Center Pipe4 1/2" REGLH6 5/8" REGLH7 5/8" REGLH
Connections for Kelly6 5/8" REGLH6 5/8" REGLH6 5/8" REGLH
Overall Dimension(L*W*H)2505*758*8402880*1046*10653015*1096*1065
ID of Center pipe(mm)647575
Weight (kg)134125703060
API 4f China Oil Drilling Rig Water Swivel Oil Rig SpareAPI 4f China Oil Drilling Rig Water Swivel Oil Rig Spare

BEYOND is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.

China has become main equipment supplier for oil production countries, but Chinese equipment has some special features different with European and American countries, also there exits big language and cultural difference between China and other countries, so it has become one big challenge for the overseas customer to get the exact equipment and parts they need in a short time.

However, BEYOND takes root in China, and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, BEYOND is quite capable to help the customer to solve this challenge.
