Hydrostatic Set Retrievable Production Packer
Zhenjiang Boral Machinery and Equipment Co., Ltd.- Certification:ISO 9001:2008, API
- Power Source:Hydraulic
- Operation Pressure:Atmospheric Pressure
- Applicable Medium:Mud, Water, Natural Gas, Crude Oil
- Structure:Vertical
- Material:Cast Steel
Base Info
- Model NO.:EHHA
- Standard:API 11d1
- Transport Package:Pallet
- Trademark:EXTRONG
- Origin:China
- HS Code:8431431000
- Production Capacity:5000 Pieces Per Year
Description
Basic Info.
Model NO. EHHA Standard API 11d1 Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per YearProduct Description

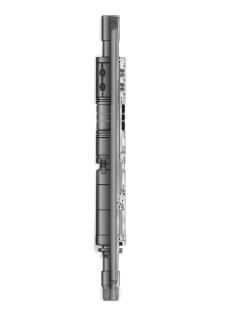

EHHA HYDRAULIC SET RETERIVABLE PACKER
INTRODUCTION
EHHA Packer is hydrostatic set and shear release single string retrievable packer. The EHHA Packer is hydraulically activated by applying tubing pressure against a plugging device below the packer. The packer requires only straight pull to release. The EHHA Packer is applied for production, injection and zonal isolation and is especially suitable for highly deviated or horizontal wells where mechanical setting packer are not applicable.
FEATURES
• Operationally simple
• Field adjustable shear release
• Built-in unloader and bypass - to aid in releasing and retrieving
• Pack-off is mechanically locked and constantly reinforced by hydrostatic pressure
• Triple seal multi-durometer elements- insure pressure integrity over a wide range of Temperatures and conforms easily to casing irregularities
• Bi-directionally anchored, able to withstand pressure differential from two directions.
• No mandrel movement during setting allows stacked packer applications

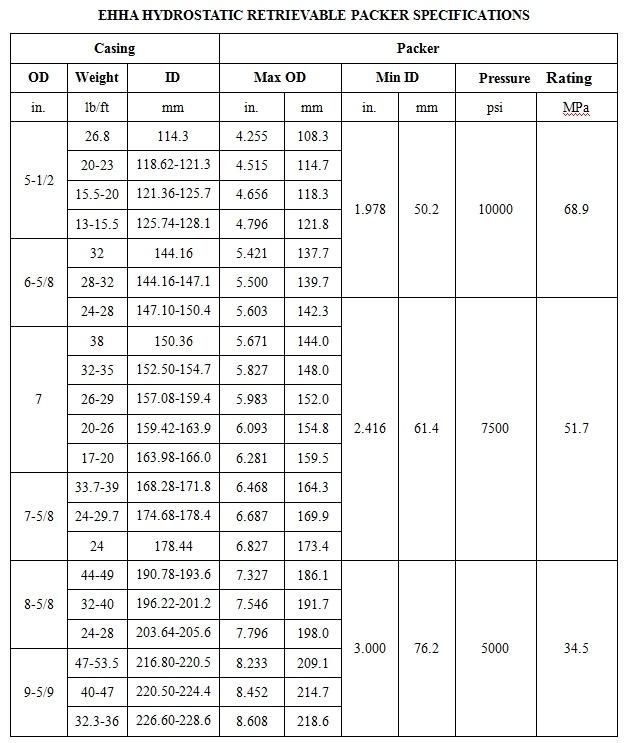

SPECIFICATION SHEET |
