• Model NO.：5350TYL4
• Structure：Horizontal
• Material：Stainless Steel
• Transport Package：Bulk
• Origin：Puyang Henan
• Production Capacity：100

Basic Info.

Model NO. 5350TYL4 Structure Horizontal Material Stainless Steel Transport Package Bulk Origin Puyang Henan Production Capacity 100

Product Description

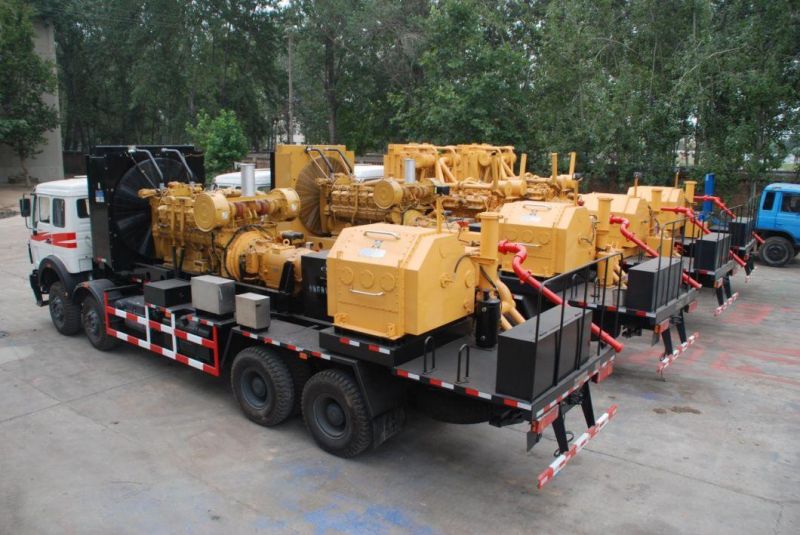

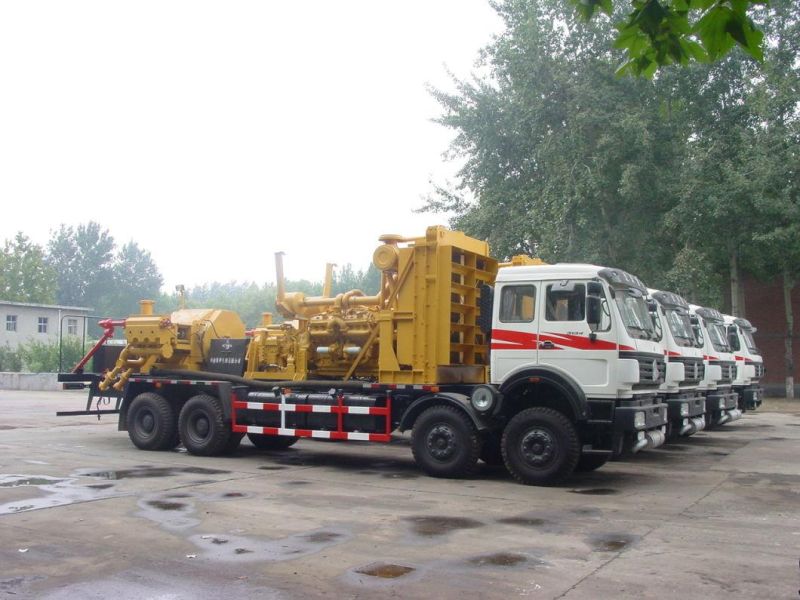

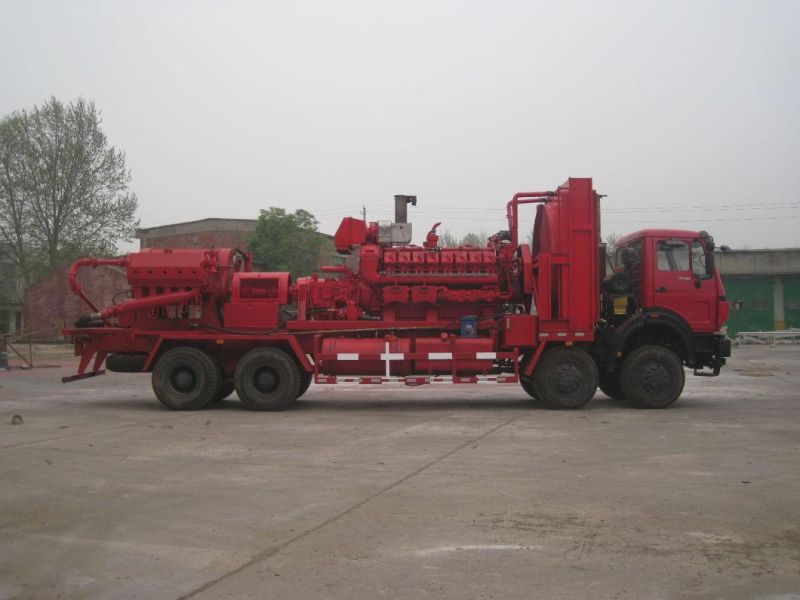

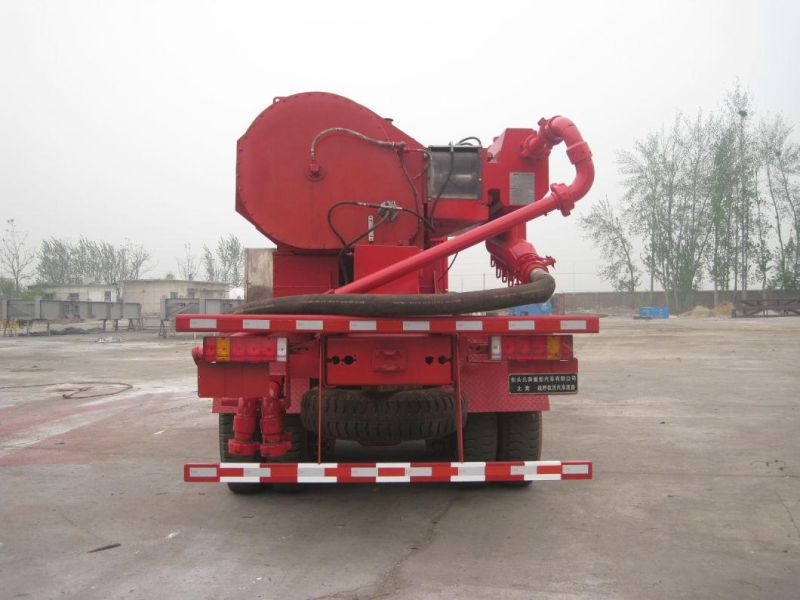

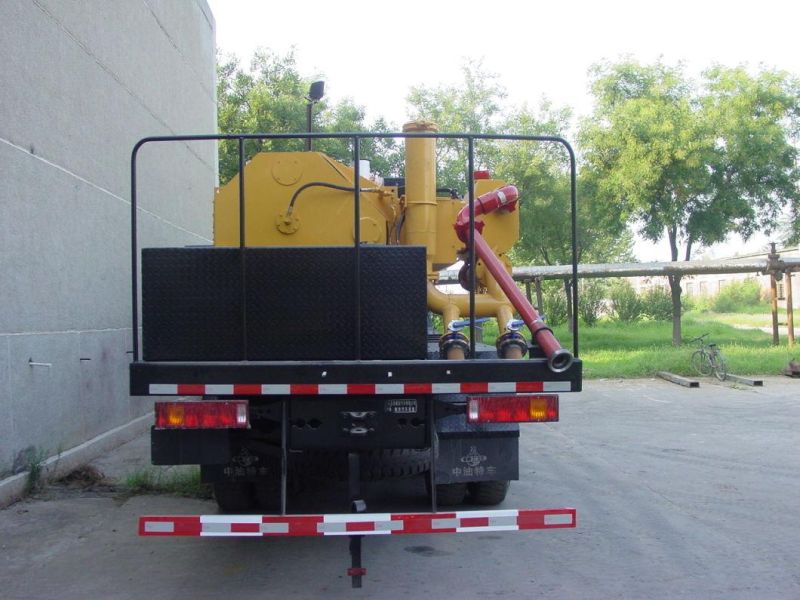

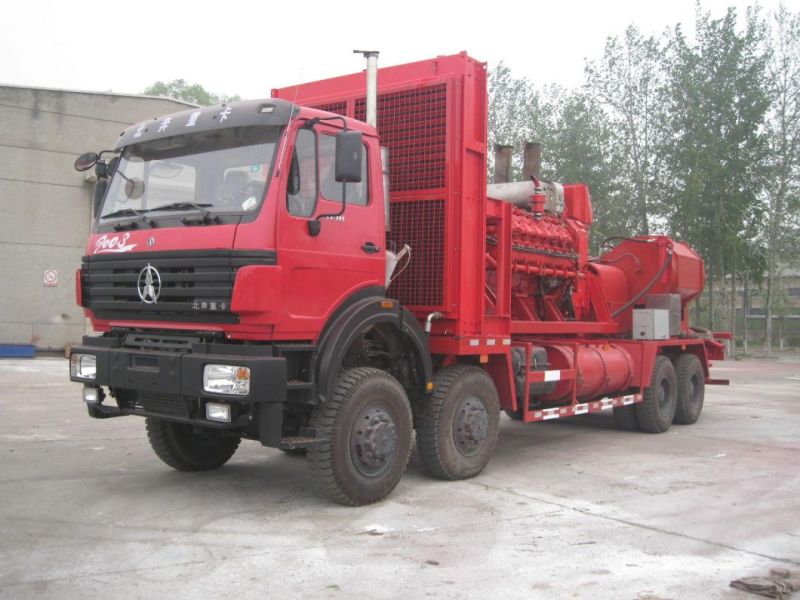

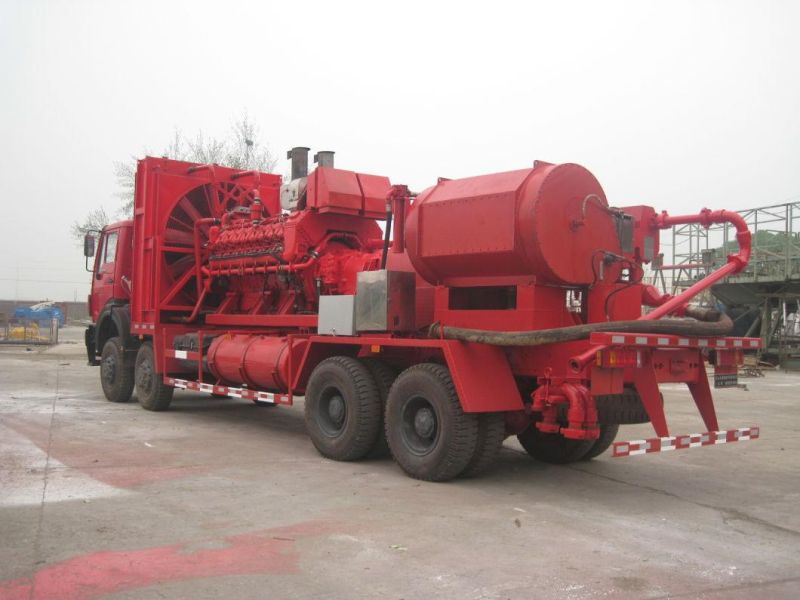

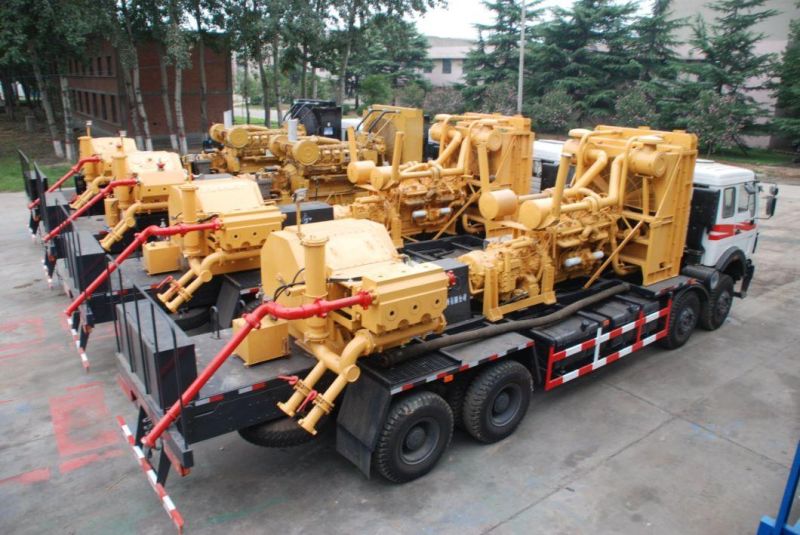

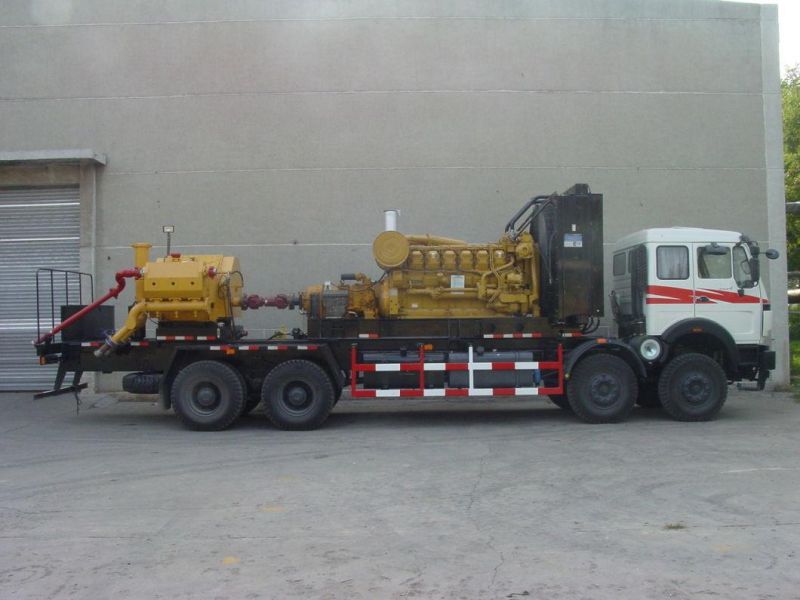

                                                   Fracturing truck(2000 Type)

Technical Feature
The fracturing truck is mainly used for oil and gas well fracturing operation, which can work independently, and also can cooperate with other devices, it installs the deck, engine, gearbox, triplex cylinder plunger pump on the truck chassis. The truck uses two control modes of local and remote. The control box has a remote control interface, which can be connected to the instrument truck and operated in it.
This equipment with the feature of high pressure, large displacement, high efficiency, safety and durability.
The control system is simple and safe to operate, which accord with the field operation requirements and habits.
The engine will automatically returns to the idle speed, the transmission box on brake state and the fracturing pump stop work when the pressure over the limit of the plunger pump overpressure protection system.

Technical Parameters


Model	Fracturing Truck
Max. working pressure MPa (psi)	105MPa(15000)
Max. theoretical displacement m3/h	2.719(96)
Fracturing pump input power kW (hp)	1865 (2500)
Working medium	Water, fracturing fluid and other fluid
Chassis	North Benz 8×8 etc. optional
Five cylinder plunger pump model	5ZB-1860
Engine model	Cummins KTA50-G8/MTU 12V4000
Transmission box	BY2000/ALLISION S9820M
