• Model NO.：B Series
• Type：Conventional Beam
• Certificate：API
• Structure：Beam Type Pumping Unit

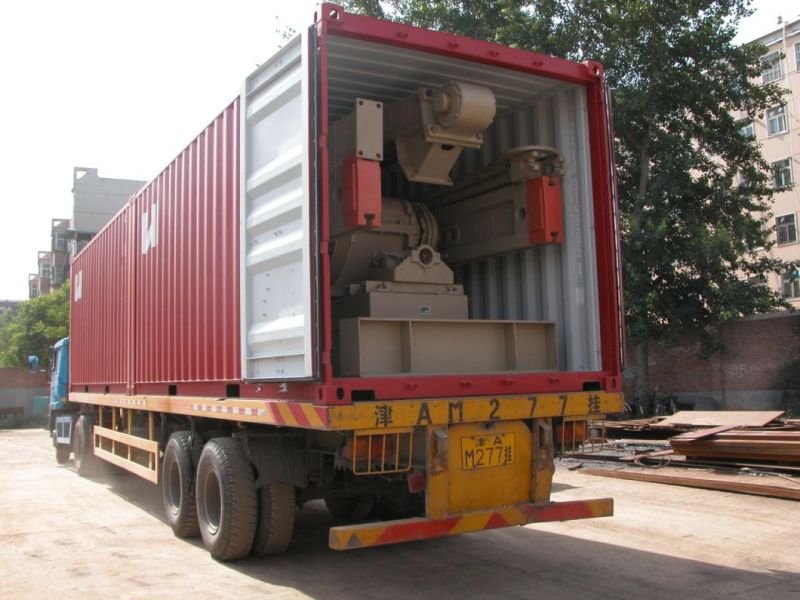

• Transport Package：Container
• Specification：steel
• Origin：Puyang Henan
• HS Code：3208901099
• Production Capacity：1000

Basic Info.

Model NO. B Series Type Conventional Beam Certificate API Structure Beam Type Pumping Unit Transport Package Container Specification steel Origin Puyang Henan HS Code 3208901099 Production Capacity 1000

Product Description

Product Outline

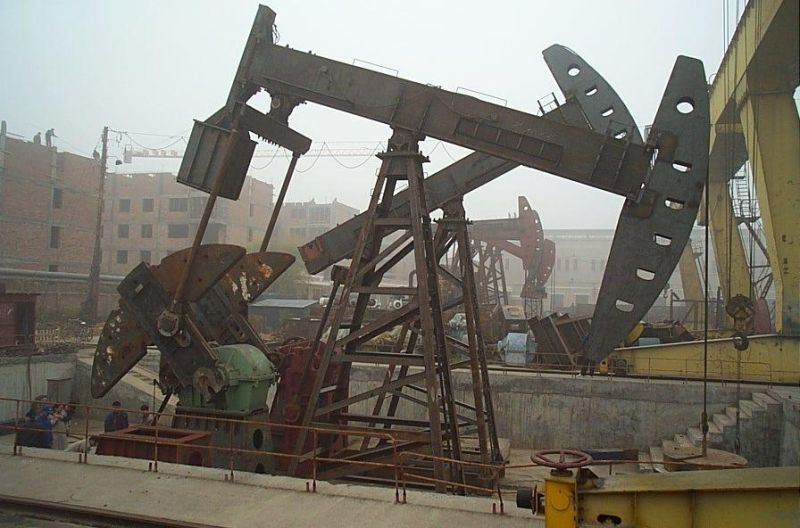

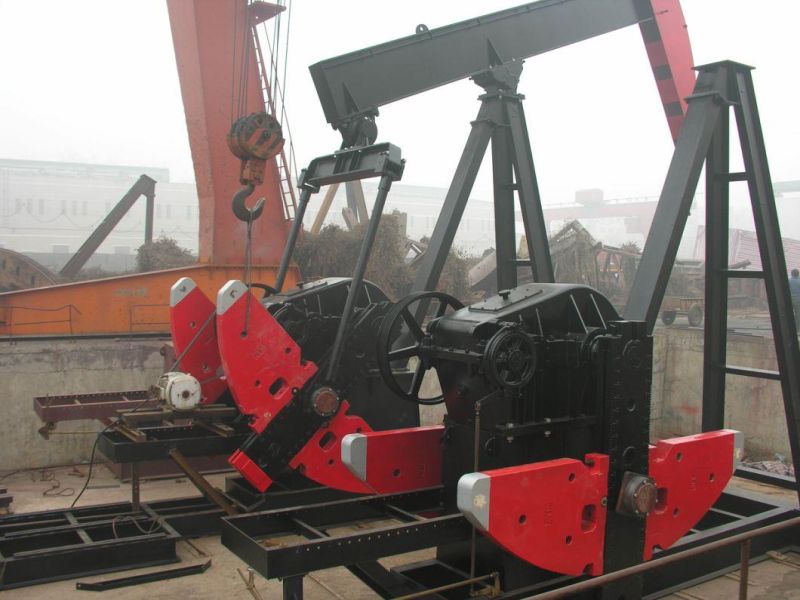

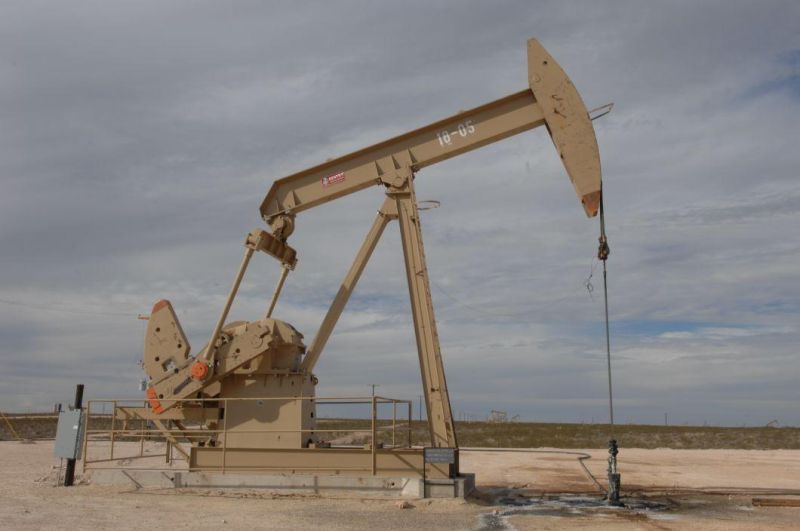

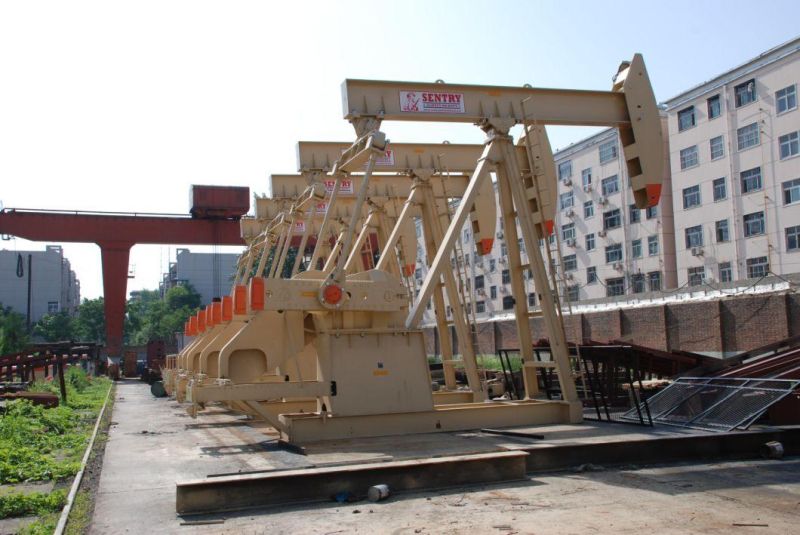

The API B series pumping unit is one kind of light conventional beam type pumping unit,which is the beam balance,It is the most common surface power equipment in field production oil.
The products conform to API Spec 11E Specification for Pumping Units and other related standards,and have obtained the certificate of authority to use official API monogram
Technical Features
.The structure are simple,the operation maintenance is convenient,the service life is long.
.It is equipped with involute or double arc herringbone gear transmission reducer,its running is steady and reliable
.The complete machine mass is small,the installment and the transportation are convenient.
.It is suitable for the small stroke,the light load,the shallow well to use.



Main Technical Parameters

NO	Model	Rated Polished Rod Capacity (KN)	Stroke(m)	Gearbox rated torque(KN.m)
1	B-80D-119-64	11,900	64/54	80,000
2	B-80D-76-64	7,600	64/54	80,000
3	B-80D-133-54	13,300	54/41	80,000
4	B-80D-119-54	11,900	54/41	80,000
5	B-80D-76-54	7,600	54/41	80,000
6	B-80D-133-48	13,300	48/35	80,000
7	B-80D-109-48	10,900	48/35	80,000
8	B-57D-109-54	10,900	54/41	57,000
9	B-57D-89-54	8,900	54/41	57,000
10	B-57D-76-54	7,600	54/41	57,000
11	B-57D-109-48	10,900	48/35	57,000
12	B-57D-95-48	9,500	48/35	57,000
13	B-57D-89-48	8,900	48/35	57,000
14	B-57D-89-42	8,900	42/32	57,000
15	B-40D-89-48	8,900	48/35	40,000
16	B-57D-76-42	7,600	42/32	57,000
17	B-40D-76-42	7,600	42/29	40,000
18	B-25D-67-36	6,700	36/27	25,000
19	B-25D-53-30	5,300	30/23	25,000
20	B-16D-53-30	5,300	30/23	16,000
