• Model NO.：Mud Gate Valve
• Product Name：2" Fig 1502 API 6A Mud Gate Valve
• Working Pressure：2000psi~10000psi
• Size：2", 3", 4"
• Connection：Union, Welding, Thread, Flanged
• Working Medium：Oil, Natural Gas and Gas Containing H2s, CO2
• Material Level：AA, Bb, Cc, Dd, Ee, FF, Hh
• Temperature Level：-46ºC~121ºC (Level L-U)
• Transport Package：Export Packing
• Specification：Mud Gate Valve
• Trademark：OilMan
• Origin：China
• HS Code：84314310
• Production Capacity：1000 Pieces Per Month

Basic Info.

Model NO. Mud Gate Valve Product Name 2" Fig 1502 API 6A Mud Gate Valve Working Pressure 2000psi~10000psi Size 2", 3", 4" Connection Union, Welding, Thread, Flanged Working Medium Oil, Natural Gas and Gas Containing H2s, CO2 Material Level AA, Bb, Cc, Dd, Ee, FF, Hh Temperature Level -46ºC~121ºC (Level L-U) Transport Package Export Packing Specification Mud Gate Valve Trademark OilMan Origin China HS Code 84314310 Production Capacity 1000 Pieces Per Month

Product Description

API 6A Mud Gate Valve 2" Fig 1502 15000 Psi Forged Steel Gate Valve
 The union ends mud gate valve is mainly used for drilling mud circulating system in oil field. It is used to control the flowing and stopping of mud and is joined by trapezoid thread connection, can be installed quickly and conveniently. The equipment has strong rigidity which is safe and reliable, The union ends mud gate valve seat and gate are sealed by means of parallel-type Metal to Metal Sealing, its sealing effect is good, and it is convenient for opening, Two ends of the valve and pipes are connected by spherical movement. The movable connection of the rubber seal ring like "O" is not of high requirement about straightness of the two ends of pipes, its seal performance is very good after installed.

Main Types:
Z23X-35-100 Mud Gate Valve, Z23Y-35-100 Mud Gate Valve, Z23X-35-75 Mud Gate Valve, Z23Y-35-75 Mud Gate Valve, Z23X-35-50 Mud Gate Valve, Z23Y-35-50 Mud Gate Valve, Z23Y-70-100 Mud Gate Valve, Z23Y-70-75 Mud Gate Valve, Z23Y-70-50 Mud Gate Valve


SPECIFICATION OF MUD GATE VALVE:

1	Manufactured and Tested in Accordance with API Spec 6A
2	Forged Steel Body and Bonnet
3	API 6A PSL1, 2 and 3 available
4	Valve seat and gate are sealed by Metal to Metal Sealing
5	Low Operating Torque
6	Quick Release Hand Wheel
7	Factory Pressure Tested in Accordance with API.6A
8	Can be supplied with Flanged End Connections, Hammer Union Ends, Threaded Connections or Butt Weld Ends
9	Material Classes DD, EE, FF, to NACE MR-01-75
10	Available with Pressure Ratings 3000psi, 5000psi and 10000psi in 2", 3", 4", 5" Valve Sizes



Model	Z23X-35-DN50	Z23X-35-DN65	Z23X-35-DN80	Z23X-35-DN100
Work pressure	5000psi	5000psi	5000psi	5000psi
Diameter	2" (20)	2 1 /2" (65)	3" (80)	4" (100)
Working medium	mud	mud	mud	mud
Connection Type	Union	Union	Union	Union
Connector connection size	Trl120*6	Trl130*6	Trl150*6	Trl180*8
Structure length (L)	205	235	270	330

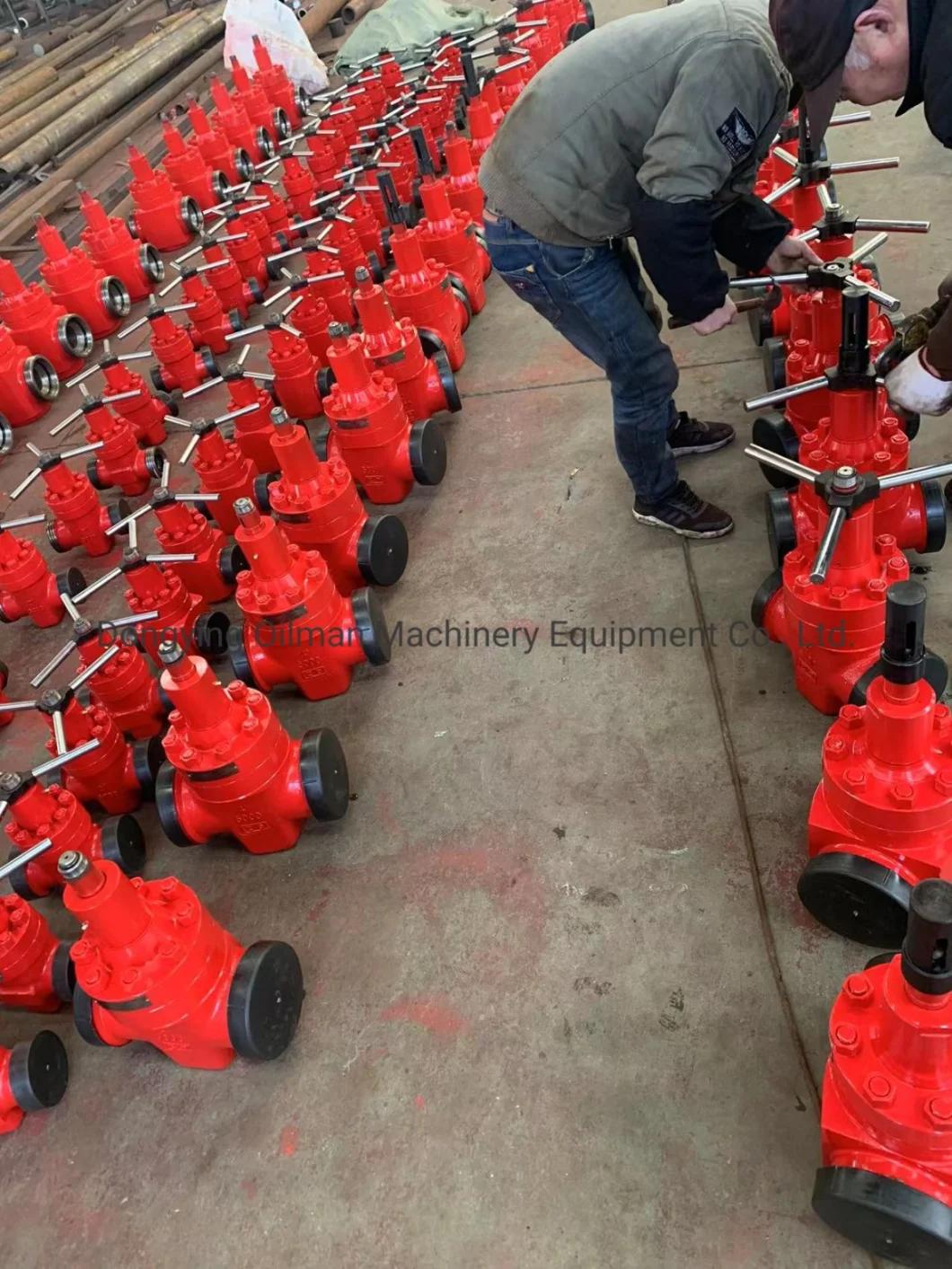

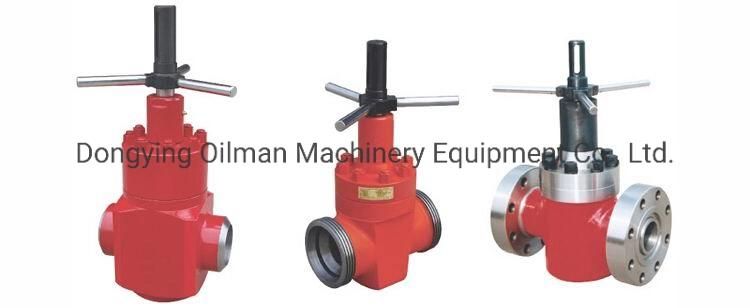

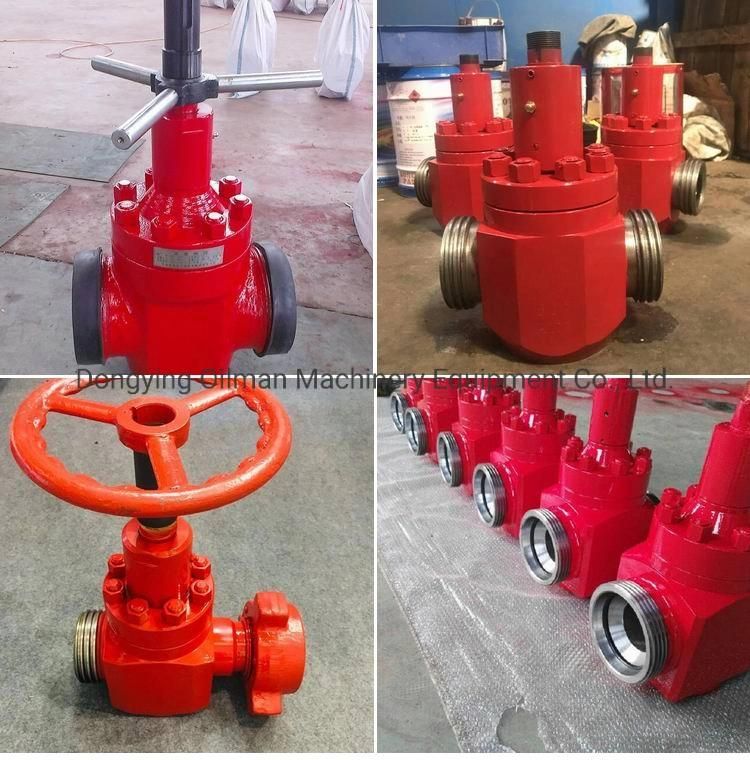

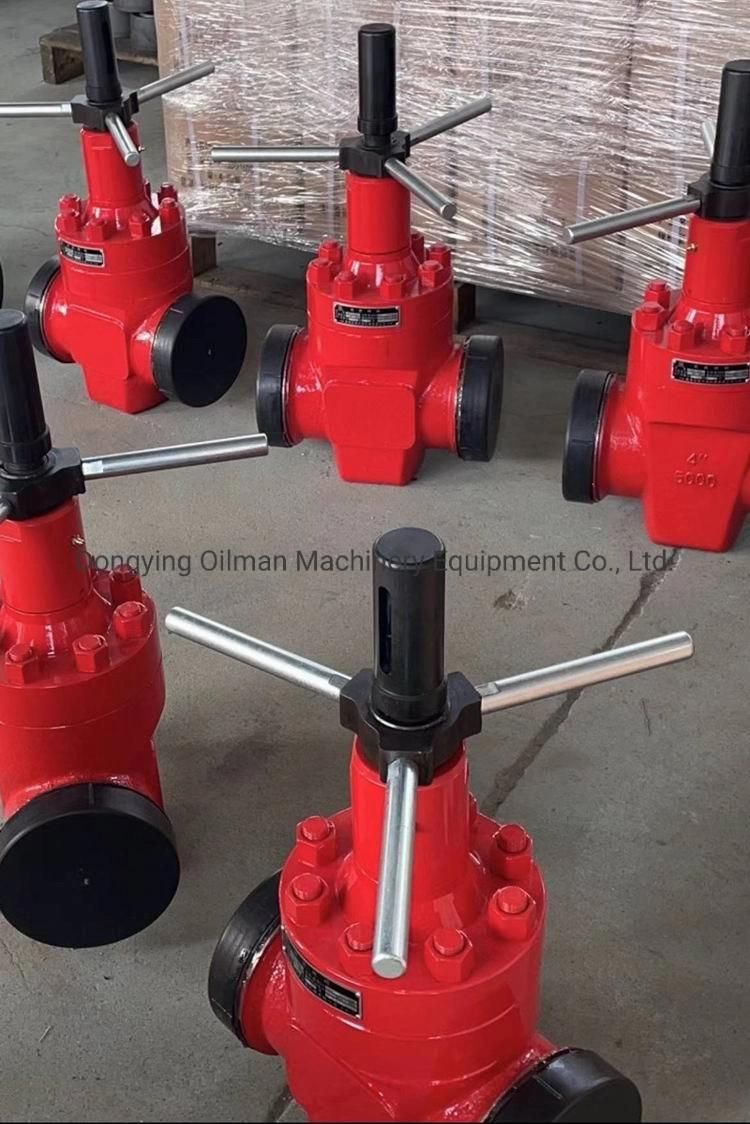

Gate Valve Pictures:

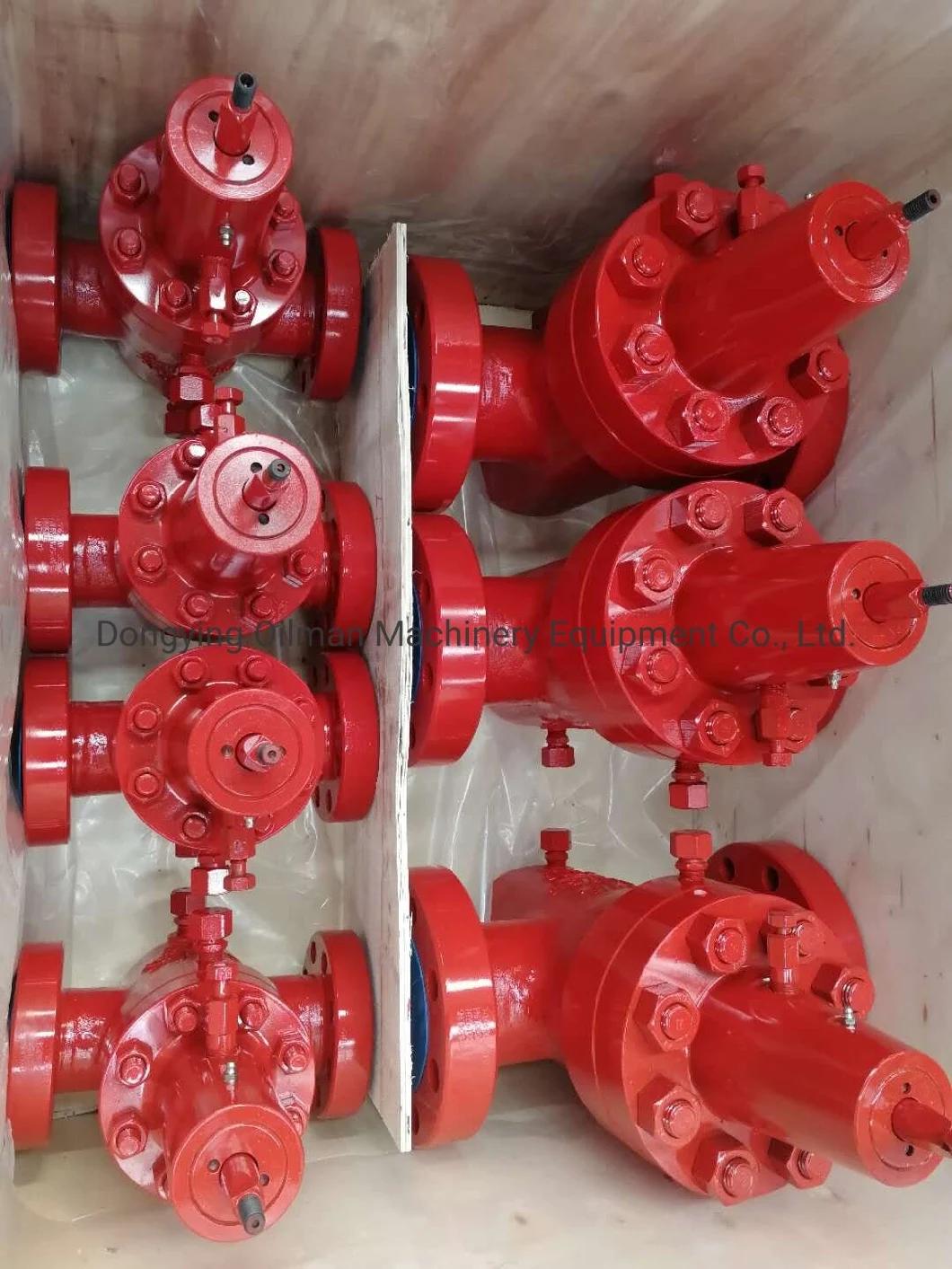

Packing & Delivery of Gate Valve:

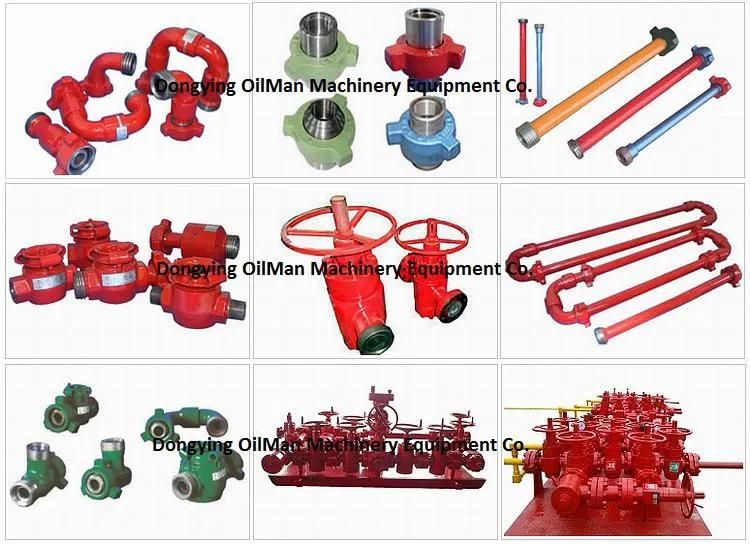

Related Products:

About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig and accessories, well control system, solid control equipment, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
