Petroleum Equipment & Machinery

Home > Product > Other Petroleum Equipments & Machinery

Ehp Hydraulic Set Retrievable Packer

Zhenjiang Boral Machinery and Equipment Co., Ltd.
  • Certification：ISO 9001:2008, API
  • Power Source：Hydraulic
  • Operation Pressure：Atmospheric Pressure
  • Applicable Medium：Mud, Water, Natural Gas, Crude Oil
  • Structure：Vertical
  • Material：Cast Steel

Base Info

  • Model NO.：EHP
  • Standard：API 11d1
  • Transport Package：Pallet
  • Trademark：EXTRONG
  • Origin：China
  • HS Code：8431431000
  • Production Capacity：5000 Pieces Per Year

Description

Basic Info.

Model NO. EHP Standard API 11d1 Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per Year

Product Description

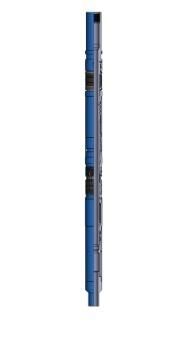

EHP HYDRAULIC SET RETRIEVABLE PACKER

INTRODUCTION

The EHP hydraulic set retrievable packer combines the pressure and temperature ratings and reliability of a permanent packer with the convenience of a retrievable packer. The barrel slip uniformly distributes the packer to casing loads. The propped element package reliably seals the high pressures and can be retrieved with the packer.

 FEATURES

• Barrel slip

• Big bore diameter design

• High pressure withstanding capability

• The single-trip completions, set by applying pressure on tubing

• Applicable in production, testing and fracturing wells

• Retrievable special retrieving tool

• Slips located below element package for protection from debris

Ehp Hydraulic Set Retrievable Packer

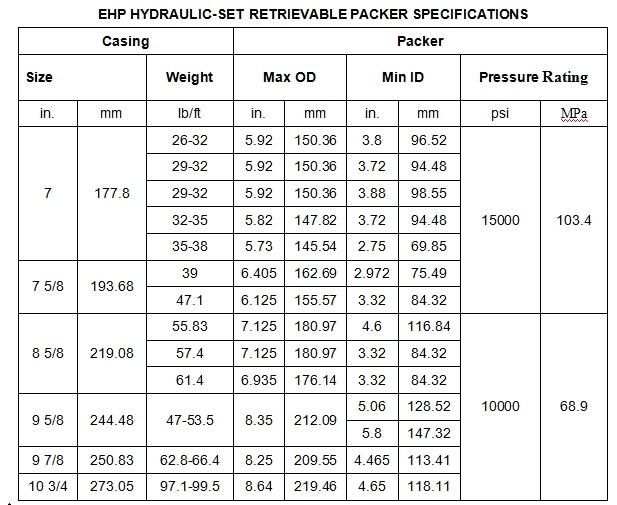

SPECIFICATION SHEET
Ehp Hydraulic Set Retrievable Packer
