• Model NO.：XQ28
• Use：Well Drilling
• Transport Package：Wooden Package
• Specification：XQ28,1.8Y, XQ28,2.6Y
• Trademark：LFM
• Origin：China
• Production Capacity：1000sets,Year

Model

XQ28/1.8

XQ28/2.6

The range of master tong

Sucker rod GYG 16 19 22 25 28,Φ48~60 oil tube5/8"~11/8"

Sucker rod GYG 16 19 22 25 28

5/8"~11/8"

the range of Back tong

Sucker rod GYG 16 19 22 25 28,Φ48~60 oil tube

5/8"~11/8"

Sucker rod GYG 16 19 22 25 28

5/8"~11/8"

High gear rated torque

700 N.m
516 ft-lbs

1000 N.m
737.5 ft-lbs

Low gear rated torque

1800 N.m
1327.6 ft-lbs

2600 N.m
1918 ft-lbs

High gear rated speed

104 r/min

98 r/min

Low gear rated speed

40 r/min

32 r/min

Rated the system pressure

10 MPa
1450 psi

10 MPa
1450 psi

Maximum supply oil

65 L/min
17 gpm

80 L/min
21 gpm

Overal dimension

L×W×H(mm)

543×334×404
21.4"×13.1"×15.9"

670×383×490
26.4"×15.1"×19.3"

Removed quality(including back clamp)

105 kg
231 lbs

100kg

220lbs

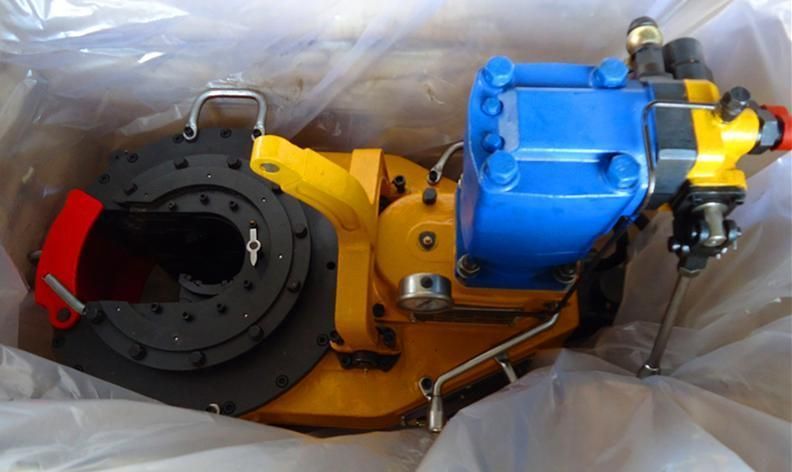

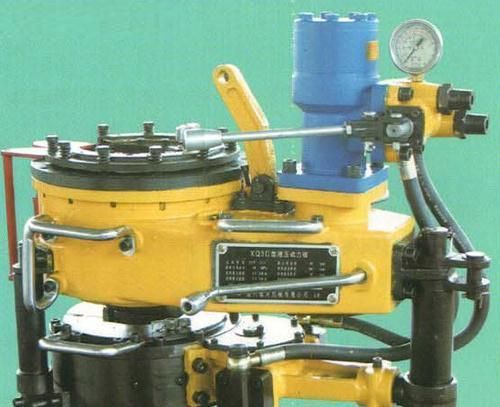

Product Photos

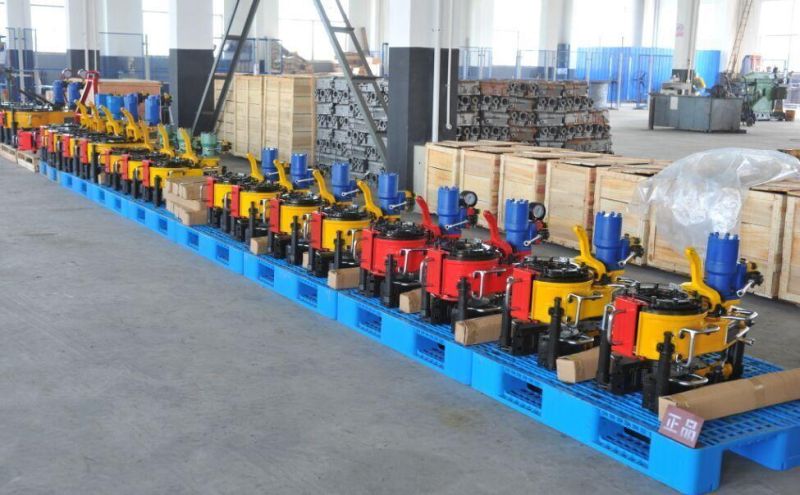

Factory

Certificates
