API Traveling Block and Hook
Zhenjiang Boral Machinery and Equipment Co., Ltd.- After-sales Service：18mths
- Warranty：18mths
- Manufacturing Process：Casting
- Surface Treatment：Without Processing
- Operation Pressure：Atmospheric Pressure
- Material：Cast Steel
Base Info
- Lead Time：15-30 Days
- Transport Package：Wooden Box
- Specification：customized
- Trademark：ORIENT
- Origin：China
- HS Code：8431431000
- Production Capacity：50000 Sets,Year
Description
Basic Info.
Lead Time 15-30 Days Transport Package Wooden Box Specification customized Trademark ORIENT Origin China HS Code 8431431000 Production Capacity 50000 Sets/YearProduct Description

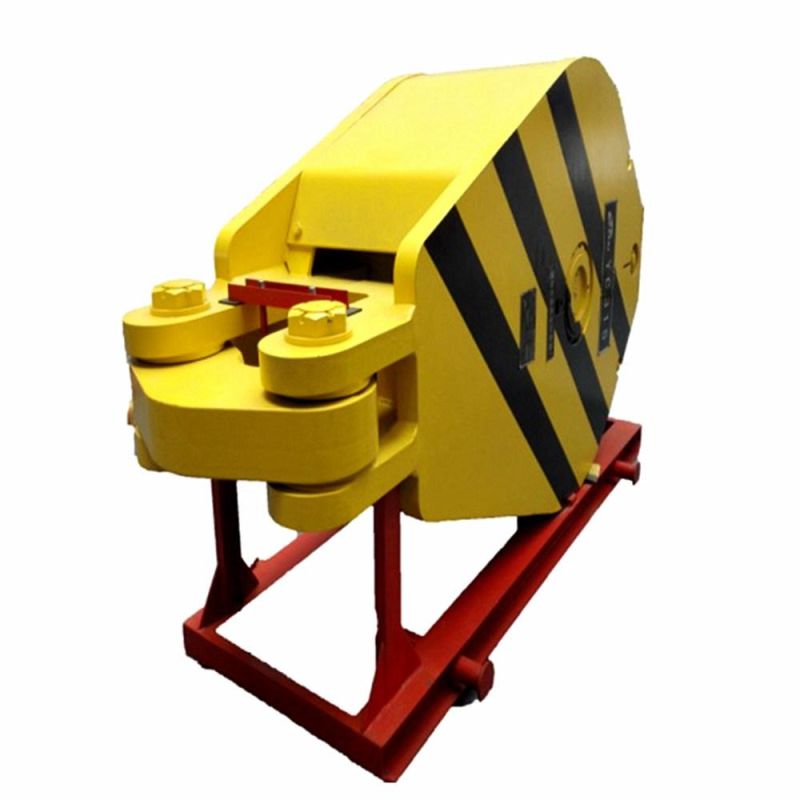

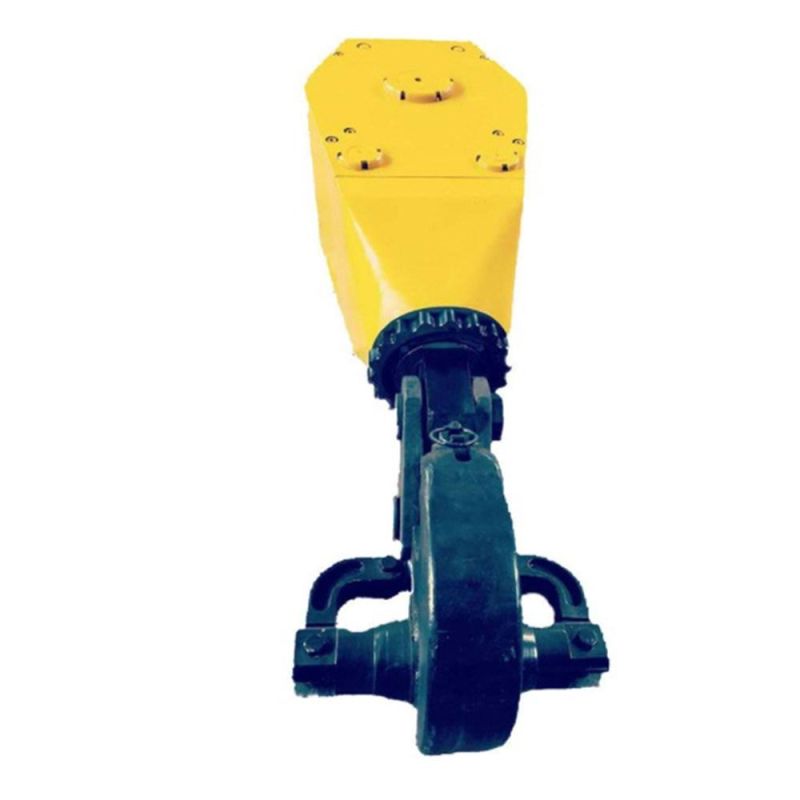

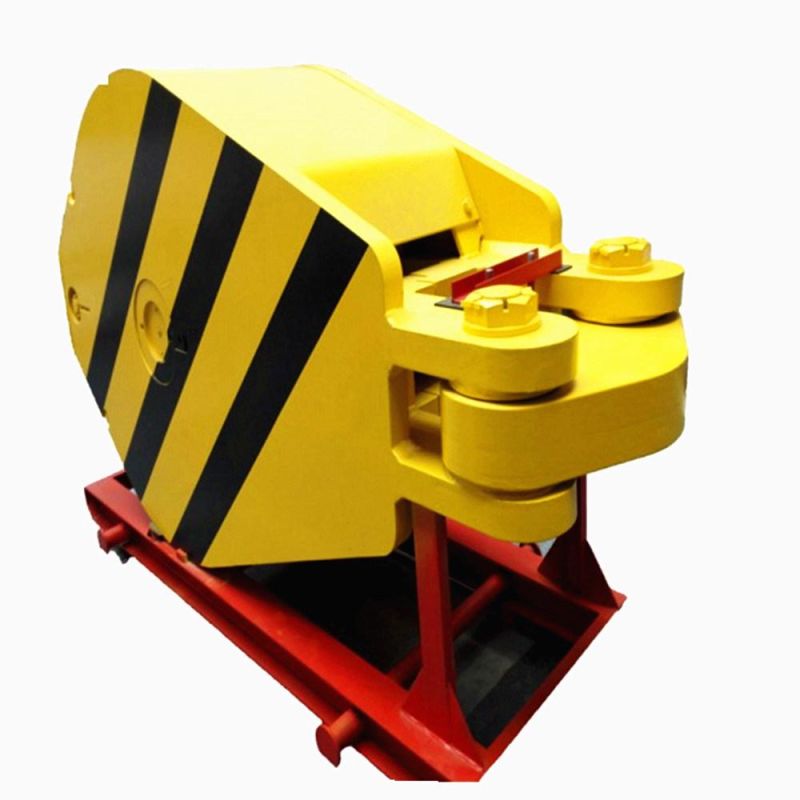

Travelling Block and Hook are effective devices of drilling rig for lifting. Jintan supplies API 8C certified traveling block and hook with API monogram.

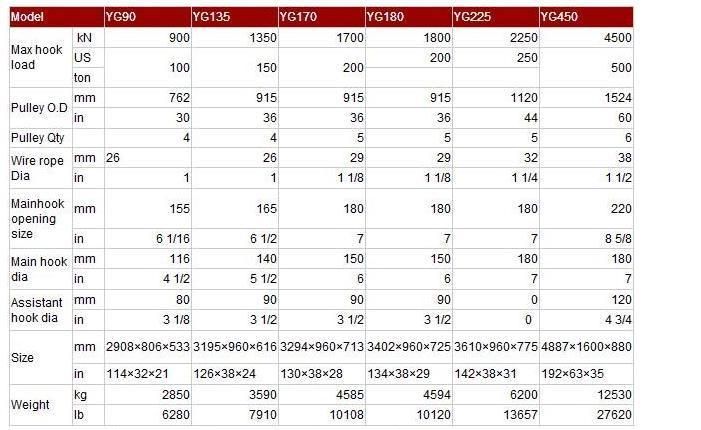

| Model | YC135 | YC170 | YC225 | YC315 | YC450 |
| Max Hook Load KN | 1350 | 1700 | 2250 | 3150 | 4500 |
| Outerside diameter of block mm(in.) | 762 | 1005 | 1120 | 1270 | 1524 |
| Pulley number | 4 | 5 | 5 | 6 | 6 |
| Diameter of wirerope mm(in.) | 29 | 29 | 32 | 35 | 38 |
| length*wide*height mm | 1800*960*610 | 2100*960*630 | 2294*1090*630 | 2680*1350*974 | 3110*1600*840 |
