• Structure：Horizontal
• Material：Stainless Steel
• Transport Package：Bulk
• Origin：Puyang Henan
• Production Capacity：100

Basic Info.

Structure Horizontal Material Stainless Steel Transport Package Bulk Origin Puyang Henan Production Capacity 100

Product Description

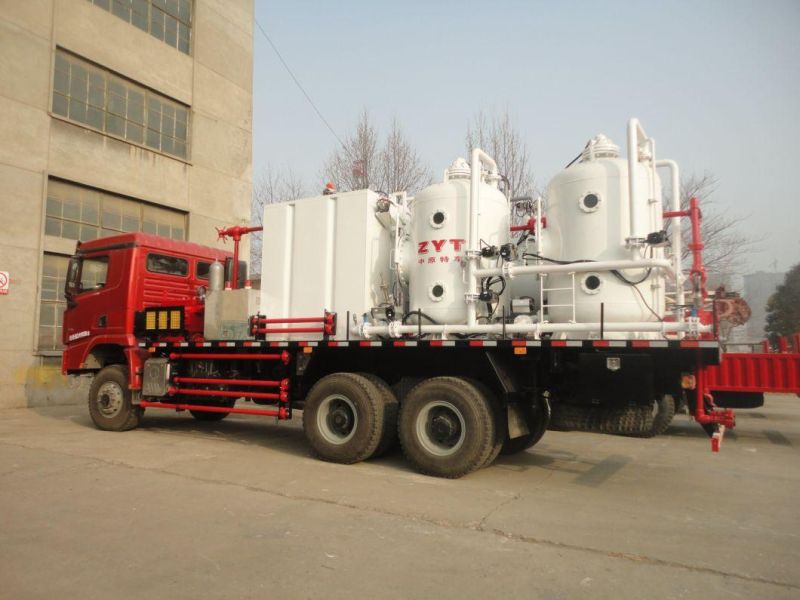

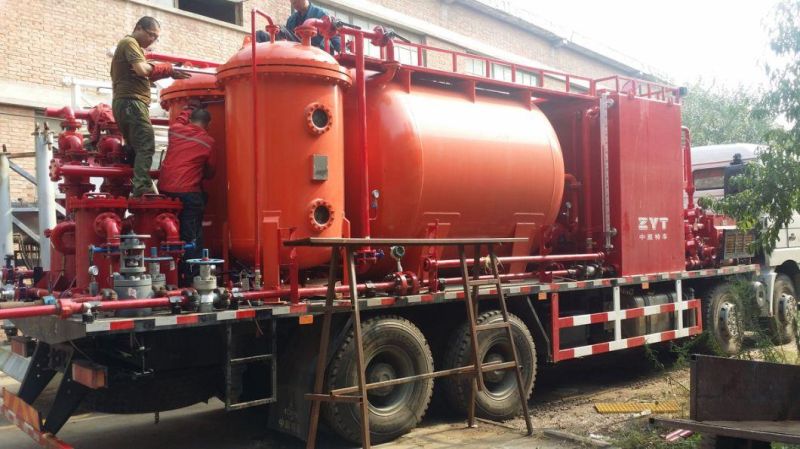

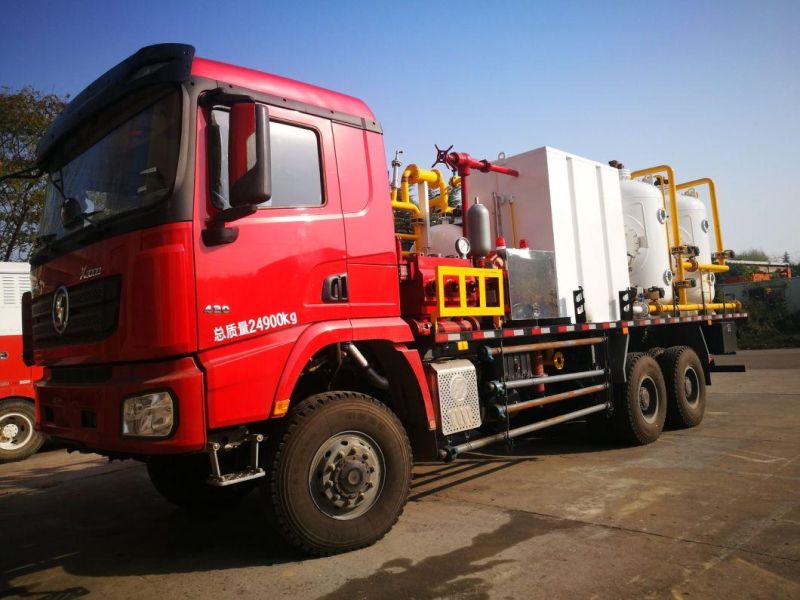

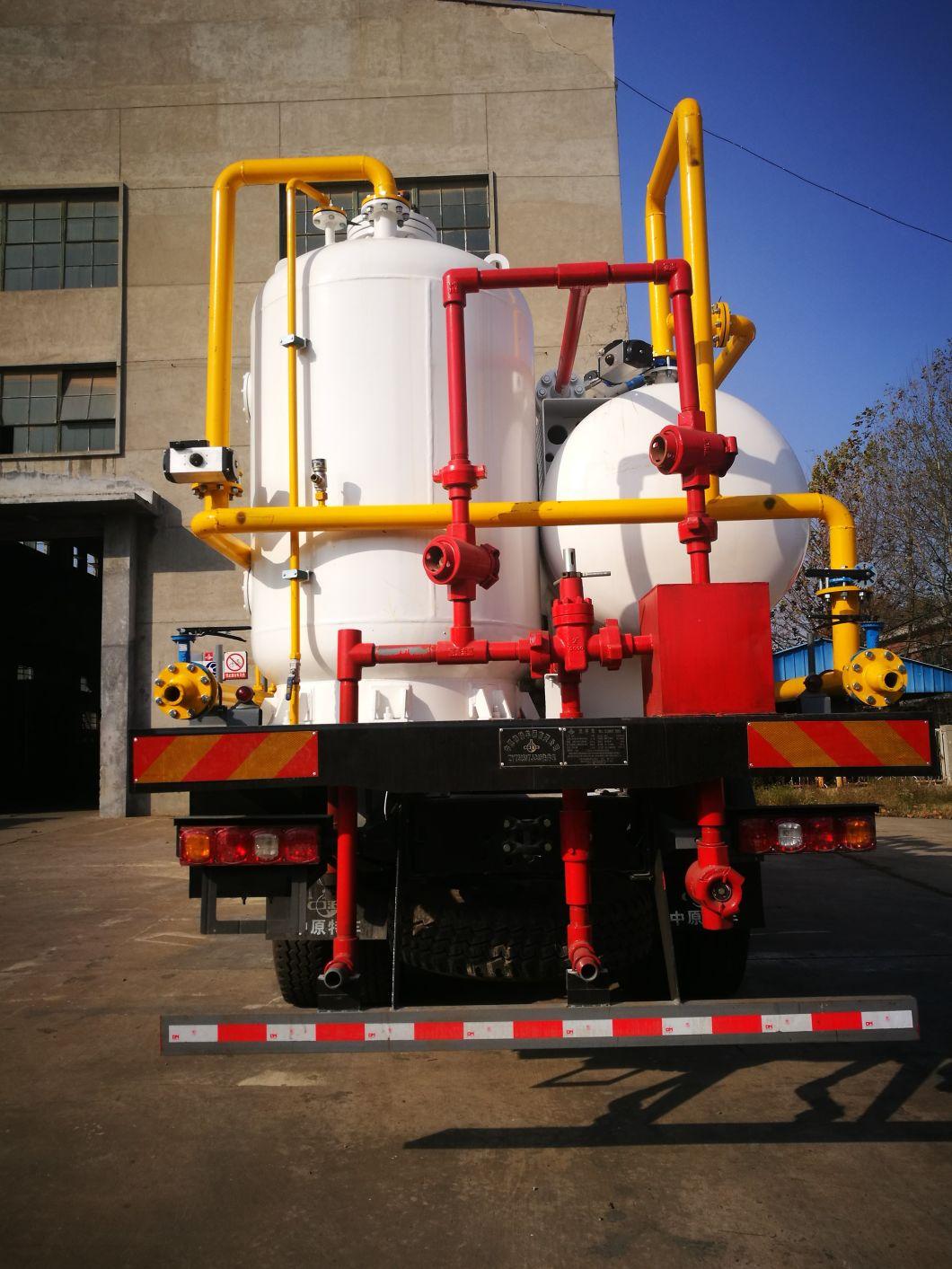

                                                   Self Circulating Flushing Well Truck
Based on second-class chassis, the truck is refitted by adding platform, PTO, triplex plunger pump, pressure  depressurizing system, high pressure desander, magnetizer, air flotation machine, walnut shell filter, modified fiber ball filter, dirty water tank, hydraulic system, air system, piping system, electric control system and other components. The truck is mainly used for well flushing, pressure testing and other operation. Optional components: over pressure protection device, engine timekeeping device. Optional chassis: North Benz/Shaanqi / SINOTRUK/Dongfeng, driving type: 6×4,6×6.
The truck has a high degree of integration, During operation, it can achieve water self-loop process, to achieve the purpose of water recycling, Which reduces water usage when well flushing operation, saves the manpower and the material resources, to realize a green, environmental protection and energy-saving operation requirements. It is the idea device of oilfield well-flushing operation.
Technical parameter

Model	5250TJC35  Self circulating flushing well truck
Max. working pressure,MPa(psi)	35(5076)
Max. working displacement,m3/h(ft3/h)	30(1059)
Medium temperature,ºC	5~60
Environment temperature,ºC	5~85
Water quality before treatment	Oil,mg/L:≤2000 Suspended solids,mg/L:≤2000
Water quality after treatment	Oil,mg/L:≤10 Suspended solids,mg/L:≤10 Suspended matter particle diameter median,μm:≤5
Working pressure,VDC	24
Power resource of triplex plunger pump	Chassis engine
Second-class chassis	North Benz/Shaanqi / SINOTRUK/Dongfeng
Driving type	6×4,6×6
Model of triplex plunger pump	XJ3
Max. input power,kW(hp)	145(194)
Qty. of plunger	3
Max. pressure,MPa(psi)	35(5076)
Max. displacement,m3/h(ft3/h)	50(1766)
Decompression treatment parameter of depressurizing system	Inlet pressure,MPa(psi):≤25(3626) Outlet pressure,MPa(psi):≤1.0(145) Outlet displacement,m3/h:≤30

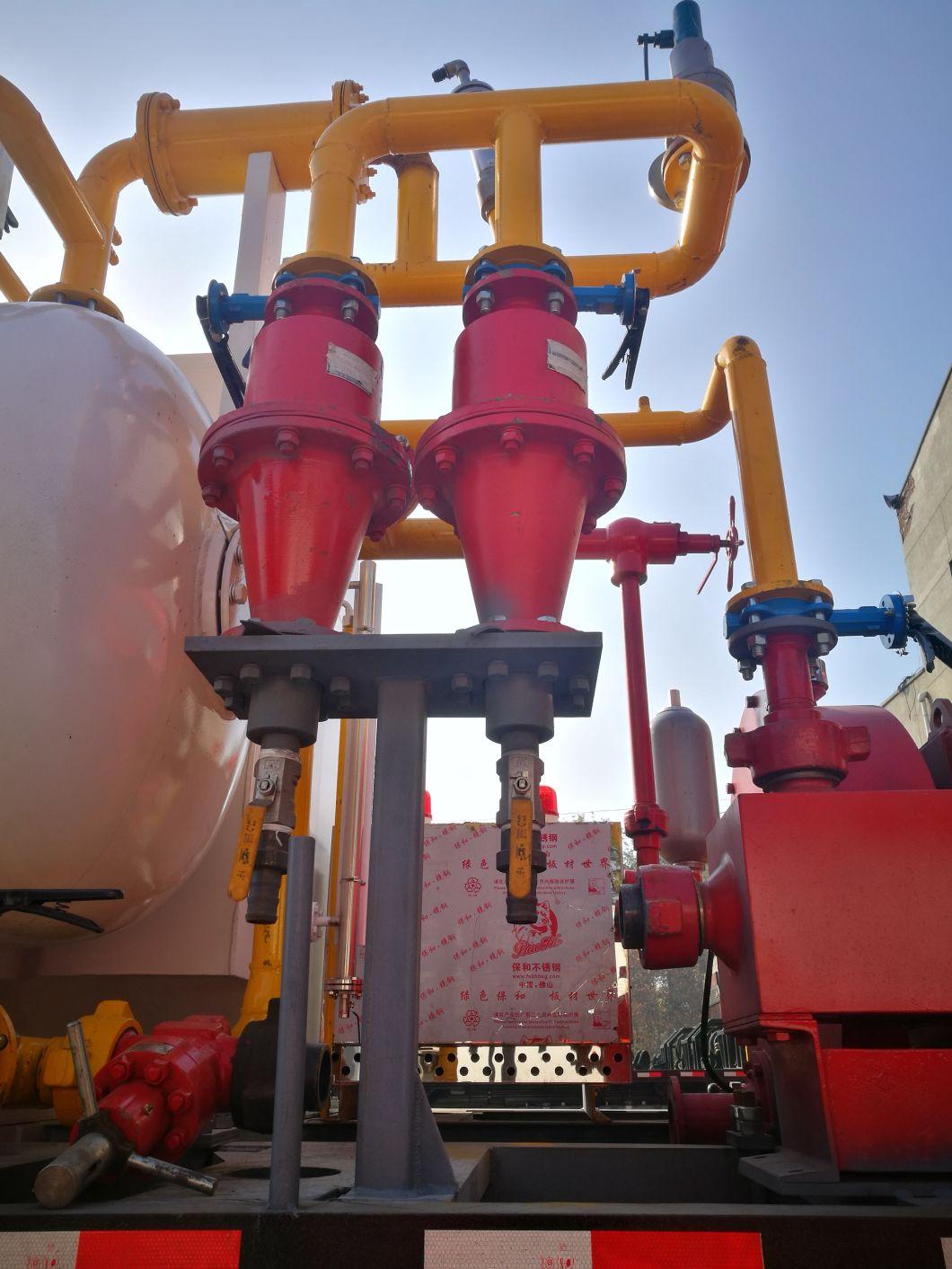

High pressure desander (Two stage series parallel connection)	Designed pressure,MPa(psi):1.0(145) Treatment flow,m3/h(ft3/h):30(1059)
Magnetizer	Consists of strong magnet group, the base pipe and casing and other components
Air flotation machine	Structure type:Advection combination Treatment flow,(ft3/h):30(1059)  Air flotation compartment volume,m3(ft3):8(282) Water retention time,min:12

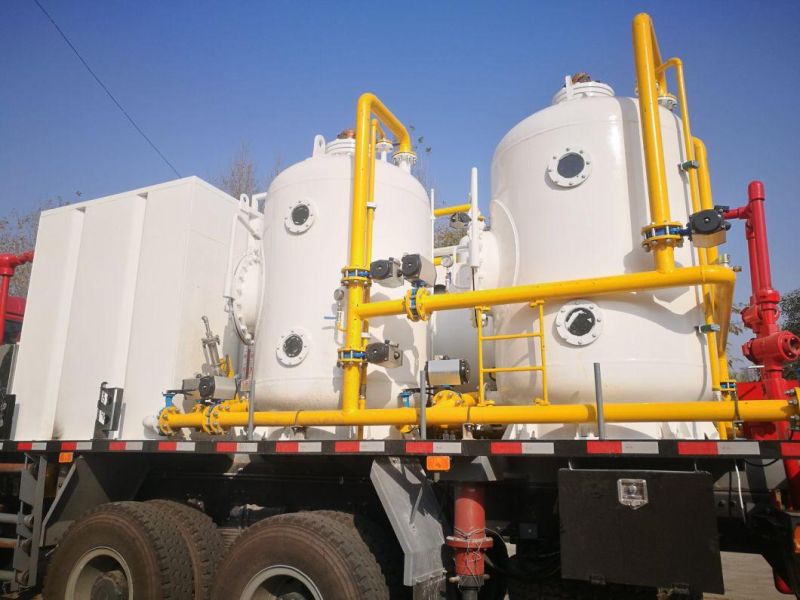

Walnut shell filter	Designed pressure,MPa(psi):0.6(87) Treatment flow,m3/h(ft3/h):30(1059) Water pump driving type: hydraulic driving
Modified fiber ball filter	Designed pressure,MPa(psi):0.6(87) Treatment flow,m3/h(ft3/h):30(1059)
Dirty water tank	Max. volume of water tank,m3(ft3):2(70.6) Max. volume of oil tank,m3(ft3):4(141)
