Eej Expansion Joint Made in China
Zhenjiang Boral Machinery and Equipment Co., Ltd.- Certification：ISO 9001:2008, API
- Power Source：Hydraulic
- Operation Pressure：Atmospheric Pressure
- Applicable Medium：Mud, Water, Natural Gas, Crude Oil
- Structure：Vertical
- Material：Cast Steel
Base Info
- Standard：API 11d1
- Transport Package：Pallet
- Trademark：EXTRONG
- Origin：China
- HS Code：8431431000
- Production Capacity：5000 Pieces Per Year
Description
Basic Info.
Standard API 11d1 Transport Package Pallet Trademark EXTRONG Origin China HS Code 8431431000 Production Capacity 5000 Pieces Per YearProduct Description

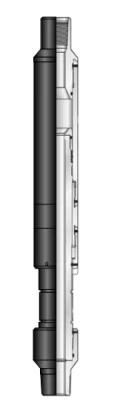

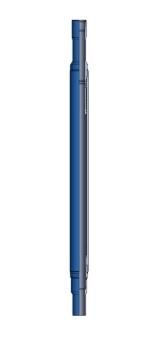

EEJ EXPANSION JOINT
INTRODUCTION
Expansion Joint is designed for use in both single and dual string completions to compensate for tubing movement. The tool provides 10ft of movement, and utilizes rugged module seals for reliable continuous service. The telescoping action permits the tool to be used as a bumper sub or jar when retrieving the installation. Shear screws may be installed to initially position the expansion joint in its extended, collapsed or mid-position. A rotation lock lets the operator rotate through the expansion joint in any position.
FEATURES
• Shear screws easily added or removed to adjust shear value
• Tool can be locked in fully extended, fully collapsed or mid-stroke position with shear screws
• Full length keys provide transmission of torque through full length of travel

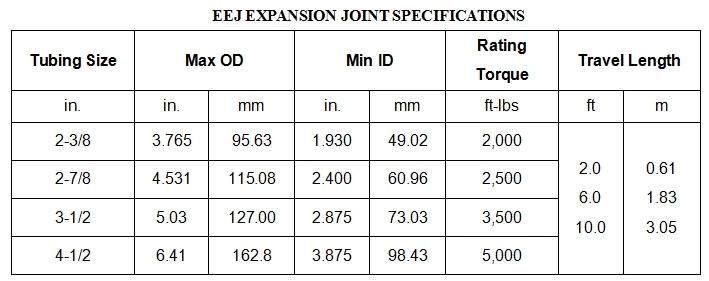

| SPECIFICATION SHEET |
