Double Arms Link/API Spec 8c/8A/Drilling Tool/Wellhead Tool/Elevator Link
Shandong Light Fir Machinery Equipment Co., Ltd.- After-sales Service：7X24
- Warranty：12months
- Manufacturing Process：Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Manual
- Material：Steel
Base Info
- Model NO.：LFM
- Standard：API 8c
- Transport Package：Wooden Box
- Specification：As Required
- Trademark：LFM
- Origin：China
- HS Code：8430
- Production Capacity：1000
Description
Basic Info.
Model NO. LFM Standard API 8c Transport Package Wooden Box Specification As Required Trademark LFM Origin China HS Code 8430 Production Capacity 1000Product Description
Production Description:

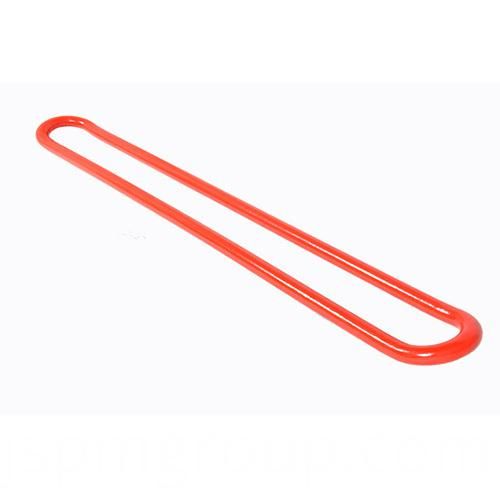

Forged Elevator links are designed to hang elevators from Top Drive System or Hooks in drilling operation. Read the Manual before use elevator links.
Each Elevator Link of one pair is forged from one single billet of high strength alloy steel, heat treated, surface-strengthen treated and NDT for super performance and long service.The rating loads of elevator links series are150t,250t ,350t ,500t .
All the technical data and properties of elevator links completely conform to the requirements of SY/T 5035 and API Spec 8C.
Elevator links can work in pairs. The elevator link upper eye is used for the hook link ear, and the elevator link lower eye is used for the elevator.

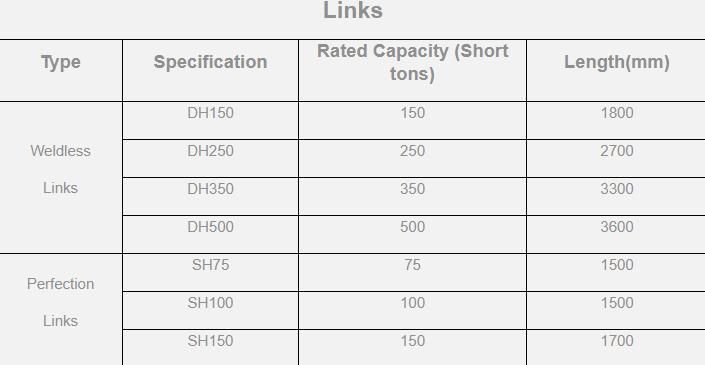

Specification:
