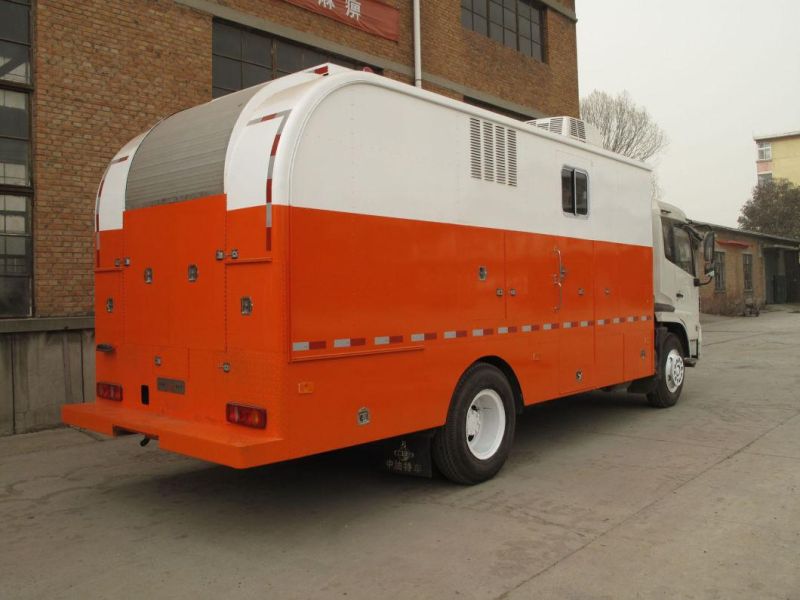

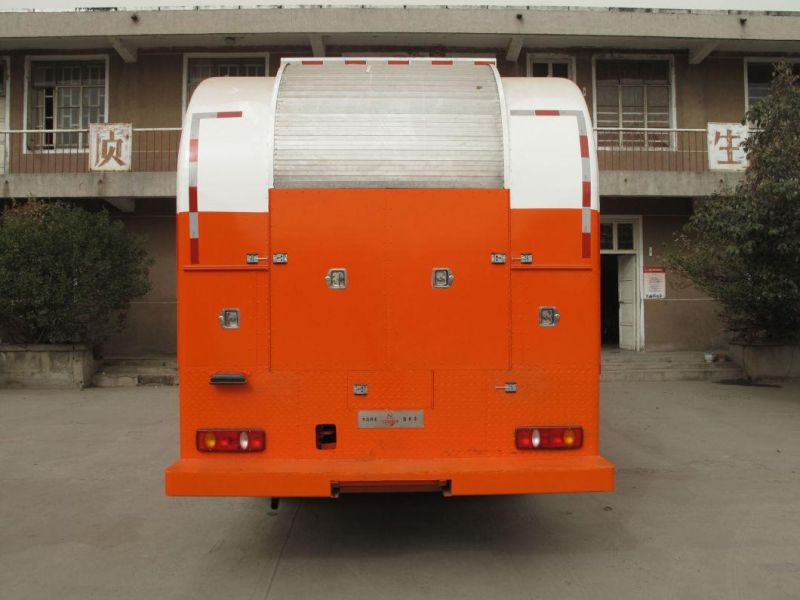

•                                                      Double-drum Wireline Truck
• Main technical parameters

1. Model:                            ZYT5050TSJ
2. Testing depth of cable:          7000m (φ3.2mm)
3. Max. pulling force of cable drum:   ≥10 kN(φ3.2mm)
4. Testing depth of wireline:          6000 m(φ2.4mm)
5. Max. pulling force of wireline drum:  ≥6.47 kN(φ2.4mm)
6. Max. pulling speed:              7 m/s
7. Speed range of drum:           0~350 r/min

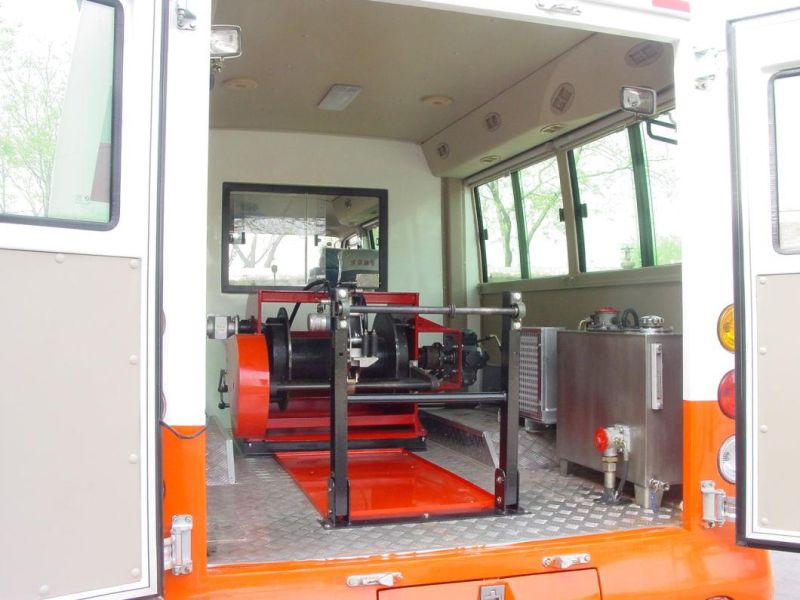

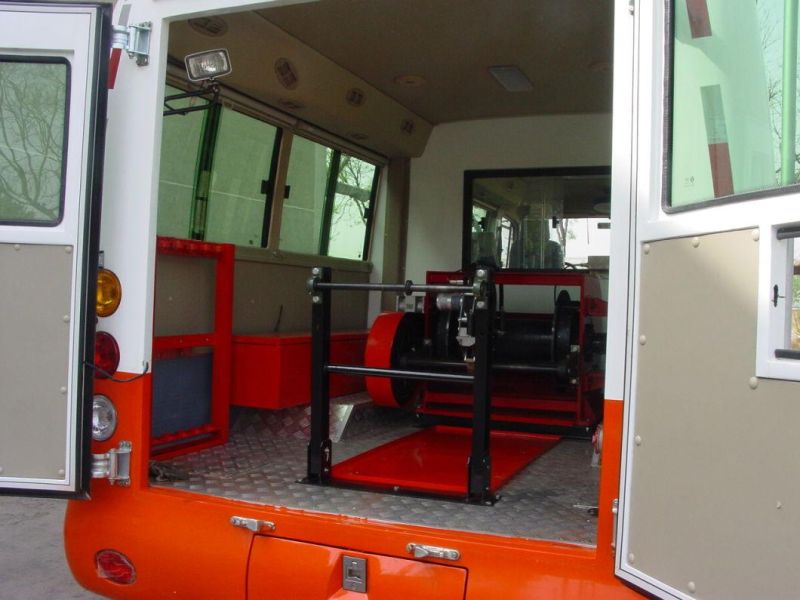

The drum model . It mainly consists of following parts: 2 drums, 2 sets of brake device, 2 sets of line-aligning device, 2 sets of manual swaying device connecting gears.

Name	Wireline drum1 parameter	drum 2parameter
Model	SJC60	SJC75
Drum diameter	Φ150mm	Φ265mm
Drum body length	396mm	504mm
Brake rim diameter	Φ390mm	Φ390mm
Drum capacity	6500m(f2.4mm)	7500m(f3.2mm)

Hydraulic system
Hydraulic system is closed loop system, it mainly consists of oil filter, variable displacement pump, motor with big torque, pressure gauge, overflow valve, oil tank, hydraulic oil radiator, level meter, high pressure hose, and so on. Users can operate variable pump handle to control drum rotary direction; and through operating engine throttle and variable pump handle, the drum can realize low speed & high speed rotary, the speed adjusting range is wide, noise of system is low, and works stable

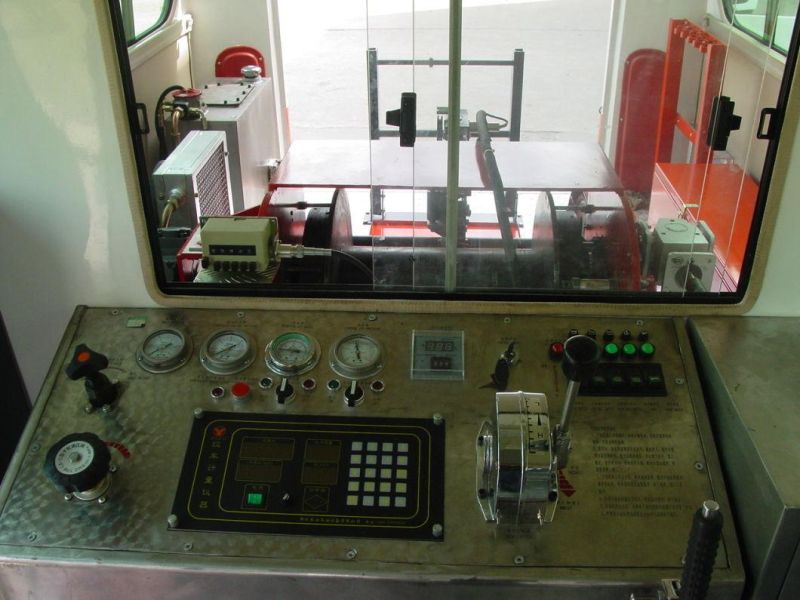

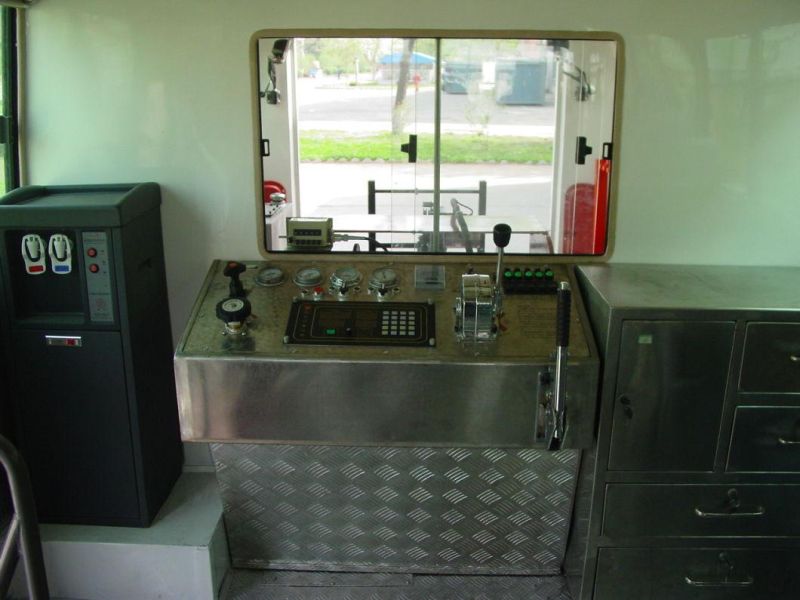

Drum measuring device
It is to display parameters of wireline depth in well, tension force, speed, and so on. Target layer depth can be set through the panel.It has the deep automatic alarm function.
