• Model NO.：7"
• Application：Dissolvable Plug
• Transport Package：Wooden Case
• Specification：7"
• Trademark：ZX
• Origin：China
• HS Code：8431431000
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. 7" Application Dissolvable Plug Transport Package Wooden Case Specification 7" Trademark ZX Origin China HS Code 8431431000 Production Capacity 100 Set Per Month

Product Description

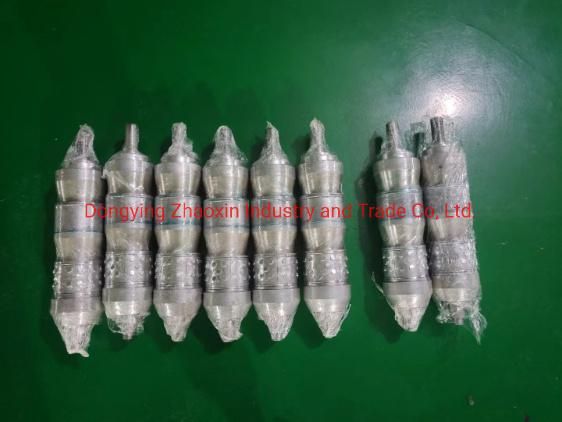

Dissolvable FRAC PLUG

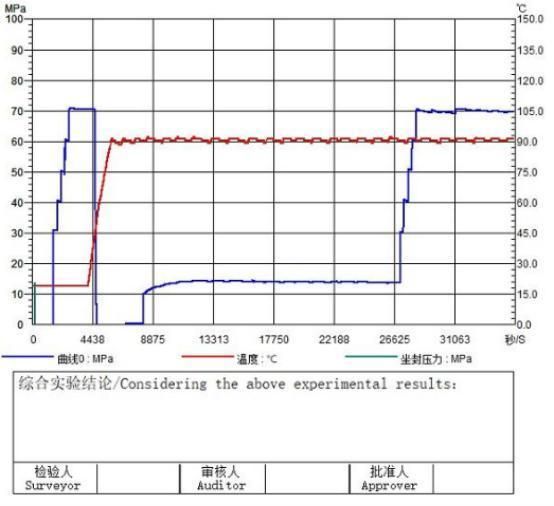

The main body of the all-metal soluble bridge plug is made of high strength soluble magnesium alloy, and the seals are made of soluble alloy material. The plug is suitable for high or low temperature oil and gas Wells, and the sealing pressure performance is more than 70MPa. The dissolution speed is adjustable and controllable after fracturing.


Model	OD (mm)	ID (mm)	length (mm)	temperature (ºC)	Setting (T)	Stroke (mm)	Differential pressure(MPa)	Setting tool	Casing ID (mm)
QJSQS-70	70	25	240	30-180	10-12	60	70	Hydraulic setting tool	Φ76-83
QJSQS-85	85	35	240	30-180	10-12	70	70	BK10	Φ99-102
QJSQS-89	89	40	220	30-180	10-12	65	70	BK10	Φ99-104
QJSQS-99	99	50	240	30-180	12-16	70	70	BK20	Φ104-115
QJSQS-103	103	55	220	30-180	12-16	60	70	BK20	Φ110-115
QJSQS-109	109	60	240	30-180	12-16	70	70	BK20	Φ118-124

CONTACT : VICTORIA
