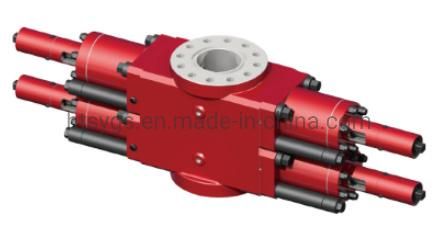

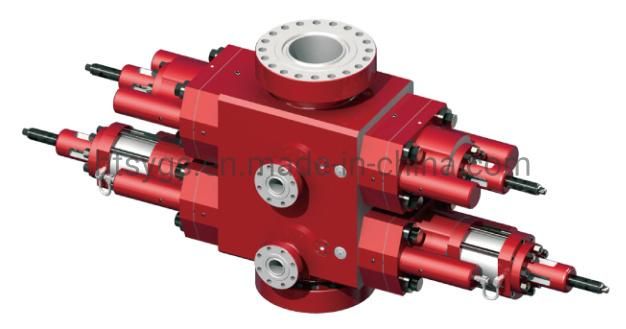

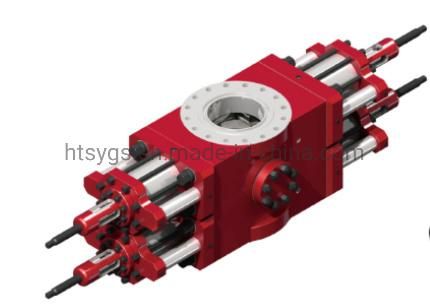

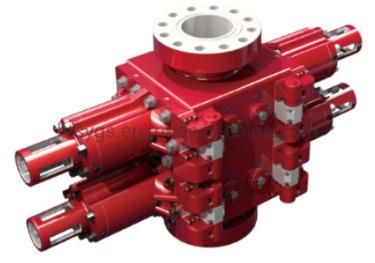

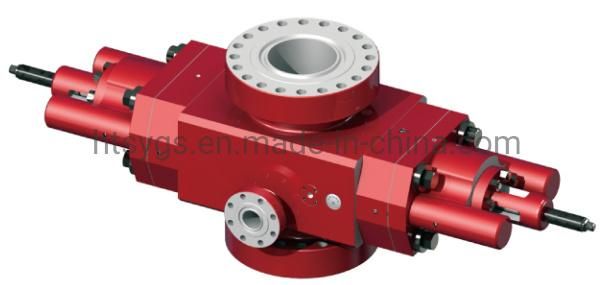

API 16A SL/Slx Double RAM Bop
Wise Channel Industries Limited- Certification：ISO 9001:2008, API Certificate
- Power Source：Outer Source
- Applicable Medium：Mud, Natural Gas, Crude Oil
- Structure：Vertical
- Material：Alloy
- Main Bore：7-1,16" ~13-5,8"
Base Info
- Model NO.：SL,SX type
- Working Pressure：3000~15000psi
- Production Specification Level：Psl1~Psl4
- Performance Requirement：Pr1, Pr2
- Transport Package：Wooden Case
- Origin：Jiangsu China
- HS Code：8431431000
- Production Capacity：1000units Per Year
Description
Our BOPs are widely used on surface and subsea.
They are manufactured in accordance with API specifacations 16A latest edition.
Features
1)Strong simple construction and space saving design with only five major components.
2)Simple hydraulic system with only two hydraulic connections required.
3)Wear ring on moving parts to prolong the life of the preventers.
4) Easy servicing on field.
5)Low operating pressure.
6) Rugged reliable sealing elements.
7) Steel segments reinforce sealing element.
8)Long Stripping life.
9)Available Bore Sizes : 7- 1/16" to 13- 5/8"
Working Pressure :3000PSI to 15000PSI.
Our production line
Some Test facilities
