Inner Size 160mm Mud Pump Cylinder Liner
HEBEI XINHUAFA PETROLEUM MACHINERY CO., LTD.- Manufacturing Process:Forging
- Surface Treatment:Spray-Paint
- Operation Pressure:Atmospheric Pressure
- Material:Cast Steel
- Cetification:API
- Hardness(Hra):180
Base Info
- Model NO.:All
- Specifications:60 to 300mm
- Outer Sleeve:Forged Steel 45#
- Inner Sleeve:High Chromium Casting Iron or Ceramic
- Name:Hy-Chrome Mud Pump Liner, Chrome-Plated Liner
- Package:Standard
- MOQ:3
- Model:F Series,3nb Series,etc
- Theory:Centrifugal Pump
- Transport Package:Wooden Box and Sea Shipment
- Specification:standard
- Trademark:xinhuafa
- Origin:Cn
- HS Code:841391000
- Production Capacity:50000sets,Per Year
Description
Basic Info.
Model NO. All Specifications 60 to 300mm Outer Sleeve Forged Steel 45# Inner Sleeve High Chromium Casting Iron or Ceramic Name Hy-Chrome Mud Pump Liner, Chrome-Plated Liner Package Standard MOQ 3 Model F Series,3nb Series,etc Theory Centrifugal Pump Transport Package Wooden Box and Sea Shipment Specification standard Trademark xinhuafa Origin Cn HS Code 841391000 Production Capacity 50000sets/Per YearProduct Description
Inner Size 160mm Mud Pump cylinder Liner
We are a large drilling tools, Drilling rig spares, Water well drilling and mining pump part, Drilling mud pumps and Fluid End Expendables and mud pump spare parts manufacturer in China.

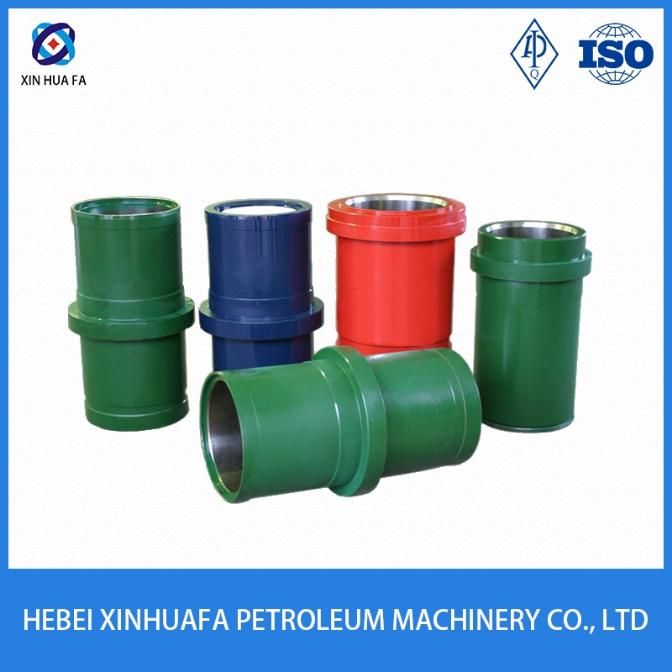

bimetal cylinder liner
The bi metal cylinder liner is one of the most important parts of hydraulic mud pump. Metal liner consists of inner and outer metal sleeves, outer sleeve is made of authoritative carbon steel, inner sleeve is made of high chromium alloy iron, after heat treatment, the hardness of inner sleeve is HRC ≥ 62, the degree finish is very high. Our bimetal cylinder liner using life is more than 800 hours.
Outer sleeve : 45# forged steal ,tension strength >610MPA , yield strengh >450MPA , elongation percentage >17% , and hardness HB180-200
Inner sleeve: high chromed forged steel , quench harness 60-67 , wear resistant
We can supply :
BOMCO & EMSCO :
F-500 F-800 F-1000 F-1300 F-1600 D-375 D-700
LANSHI:
3NB-1300C 3NB-1000 3NB-1000C 3NB-800
QINGZHOU:
SL3NB-1300A QZ-1000 QZ-500 QZ-350 QZ-800 SL3NB-1600
HHF:
3NB-1600F HHF1300/1600
GARDNER DENVER :
PZ-7 PZ-8 PZ-9 PZ-10 PZ-11
IDECO:
T-500 T-800 T-1000 T-1300 T-1600
NATIONAL:
OILWELL :
A-350PT A-560PT A-600PT A-850PT A-1100P A-1400PT A-1700PT
RUSSIAN:
8T-650 UNBT-600 UNBT-950 UNBT-1180L UNBT-950A UNBT-400 BT-600 UB-590 UNB-600 8T310 8T650-01
OUR PRODUCTS :
Longtime using up for 800 hours
Wear resistant
Acid and alkali resistant
High quality and best price
Can produce according to customer's requirements ,drawings or samples.

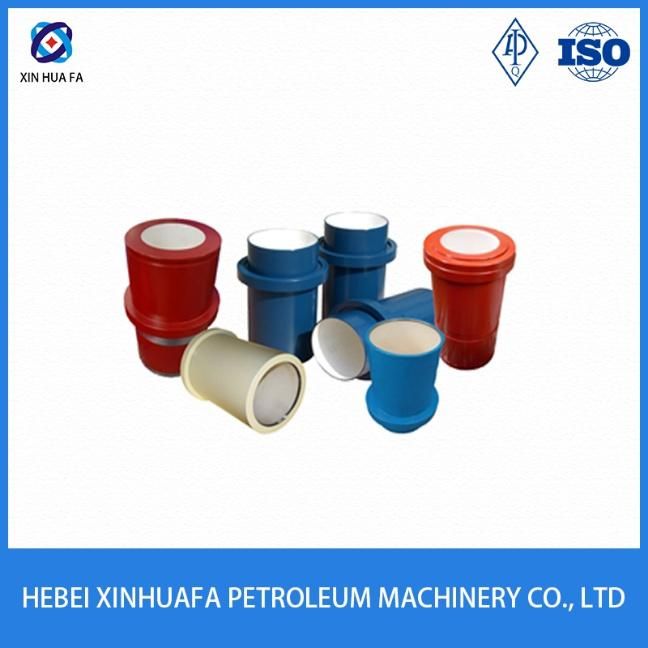

ceramic cylinder liner
Features:
- Using time more than 4000 hours
- High density
- High hardness
- Using temperatures up to 2400ºC
- Wear resistant , acid resistant and alkali resistant
- Low down the cost of freight , worker,maintaining and storage
- Save water and reduce piston wearing
