• Model NO.：yl8
• Condetion：New
• Application：Energy & Mining, Well Drilling
• Video Outgoing-Inspection：Provided
• Brand Name：Speedmade
• Machine Type：Drilling Tool
• Processing Type：Forging
• Bearing Type：Rubber Sealed Bearing
• Usage：Well Drilling
• Machinery Test Report：Provided
• Place of Origin：China
• Thread：6 5,8 API Reg
• Formation：Soft Formation
• Applicable Industries：Building Material Shops, Construction Works , Ener
• Transport Package：Original Package with Wooden Cases
• Specification：370X330X520 cm
• Trademark：speedmade
• Origin：China
• HS Code：82071990
• Production Capacity：2000piece,Pieces Per Month

Basic Info.

Model NO. yl8 Condetion New Application Energy & Mining, Well Drilling Video Outgoing-Inspection Provided Brand Name Speedmade Machine Type Drilling Tool Processing Type Forging Bearing Type Rubber Sealed Bearing Usage Well Drilling Machinery Test Report Provided Place of Origin China Thread 6 5/8 API Reg Formation Soft Formation Applicable Industries Building Material Shops, Construction Works , Ener Transport Package Original Package with Wooden Cases Specification 370X330X520 cm Trademark speedmade Origin China HS Code 82071990 Production Capacity 2000piece/Pieces Per Month

Product Description

Product Description

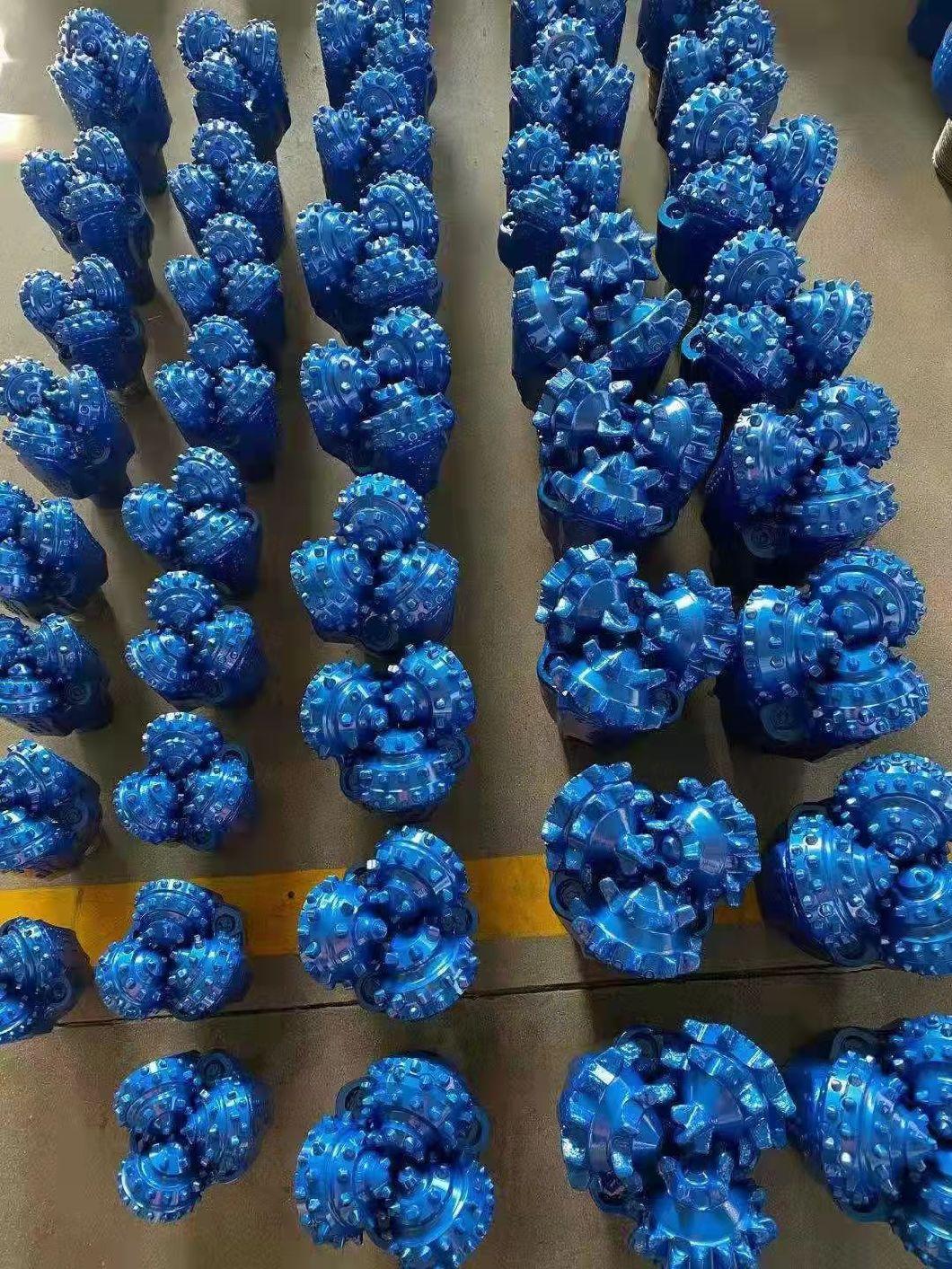

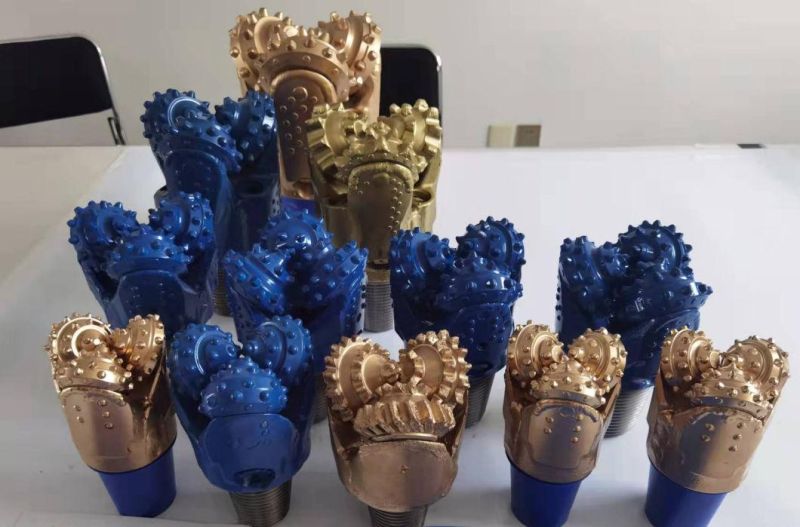

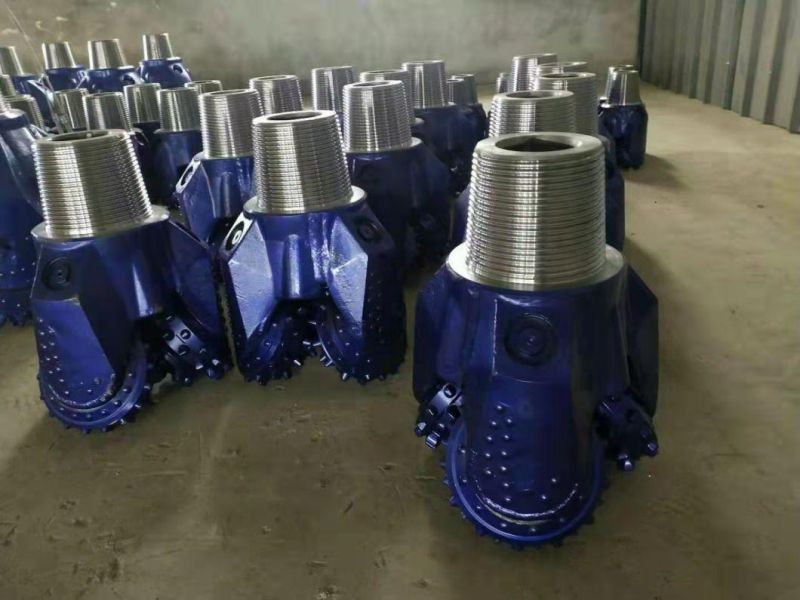

Hot Sale Various Inch IADC 537 Geothermal Well Bits TCI Tricone Rock Bits for Well Drilling



IADC	Rock formation	WOB  (KN/mm)	PRM(r/min)
417/427/437	Low compressive strength, high drill-ability and extremely soft formation, like shale, clay, sandstone, conglomerate etc	0.35~0.90	140~70
447	Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, plaster etc.	0.35~1.00	140~60
517	Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, etc	0.35~1.05	120~50
527	Soft formation with low compressive, like Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, anhydrite etc.	0.35~1.05	120~50
537/547	Low compressive strength, medium hard formation with hard abrasive interlayer, like Hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc.	0.50~1.05	110~40
617/627	High compressive strength, medium hard and thick hard interlayer, like hard shale, limestone, sandstone, dolomite, etc.	0.50~1.05	80~40
637/737	High compressive strength, medium hard and high abrasive formation, like limestone, dolomite, sandstone, chert, etc.	0.7~1.20	70~40

Cutting Structure

The wear-resistance of the teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for the steel tooth bit.The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit

Gauge Structure

Multiple gague protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone,tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capacity and bearing life.

Bearing Structure

High precision journal bearing with two thrust faces,Balls lock the cone.Hardfaced head bearing surface.Cone bearing inlaid with friction-reducing alloy and then silver-plated.Abrasion resistance and seizure of the bearing are improved.and suitable for high rotary speed

Seal and Lubrication

The advanced metal seal package consists of two metal seals and two elastic energizers.Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force,and achieves the bearing seal.In the drilling,metal seals are relatively dynamic,and the energizers are static.This will improve the reliability and durability of bearing seal.The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
Product Application:
It is suitable for down hole motor and high speed applications


-WHY CHOSE US-

 SPEEDMADEDRILL is a leader in the manufacture and development of many kinds of  bits in China. We provide the best quality PDC coring drill, DTH drill, Tri drill bits etc to the market, all types of non-coring or coring drill traces. Our drill bits are used for well drilling, mining and construction contractors. Our drill bit has been tested and verified by time, with wear resistance and fast drilling speed. Different drill bits can be customized according to different rock formations. The engineering time is greatly shortened, and the maximum performance is exerted in the operation during drilling. Our products are durable and reliable. Our products are the preferred drill bits for drilling engineers in many countries because of our precise design and efficient drilling during use.

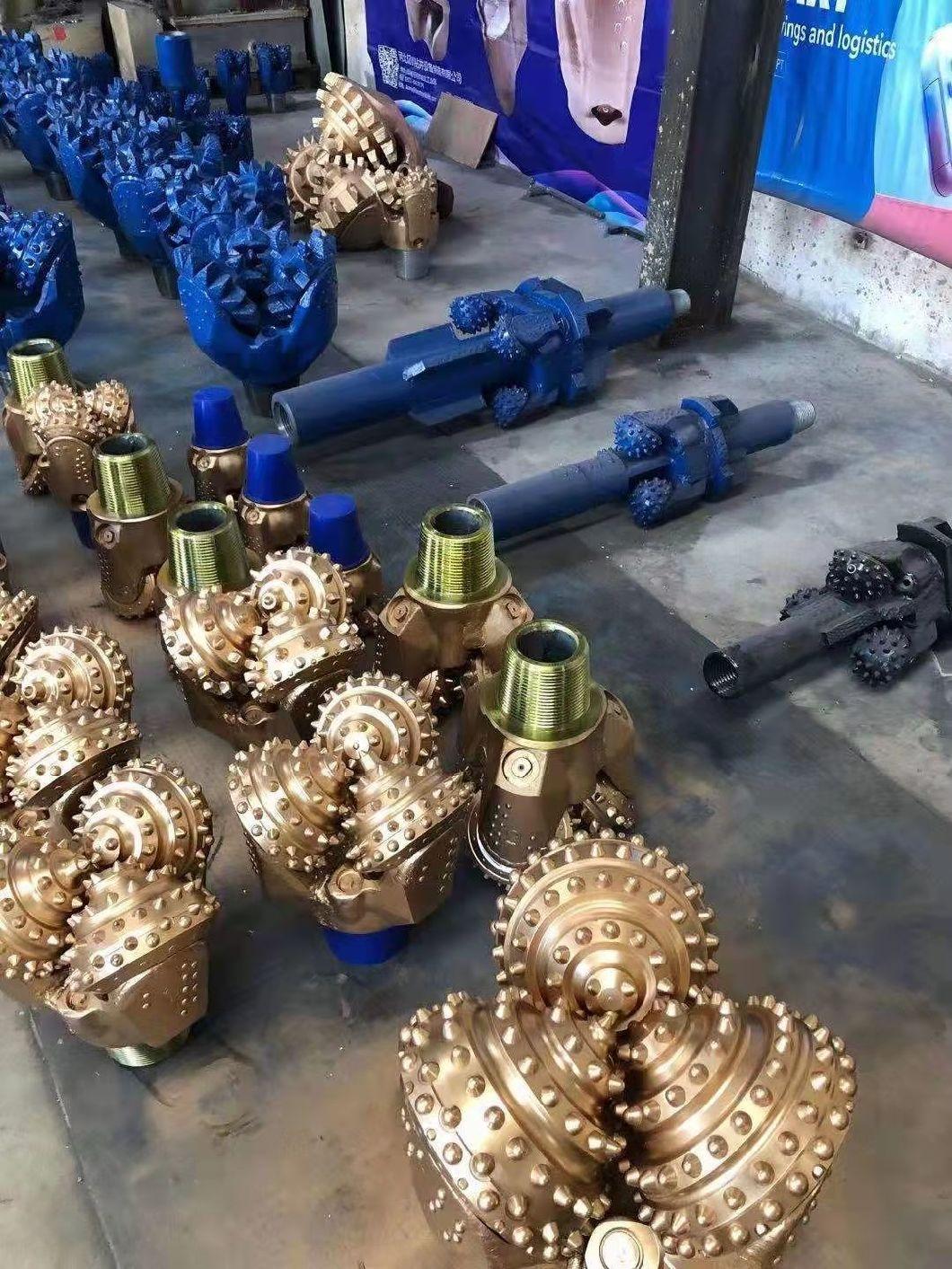

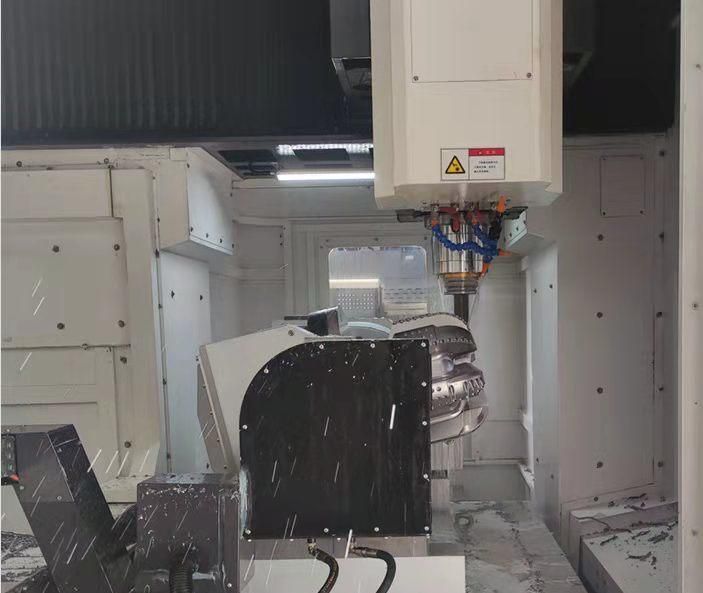

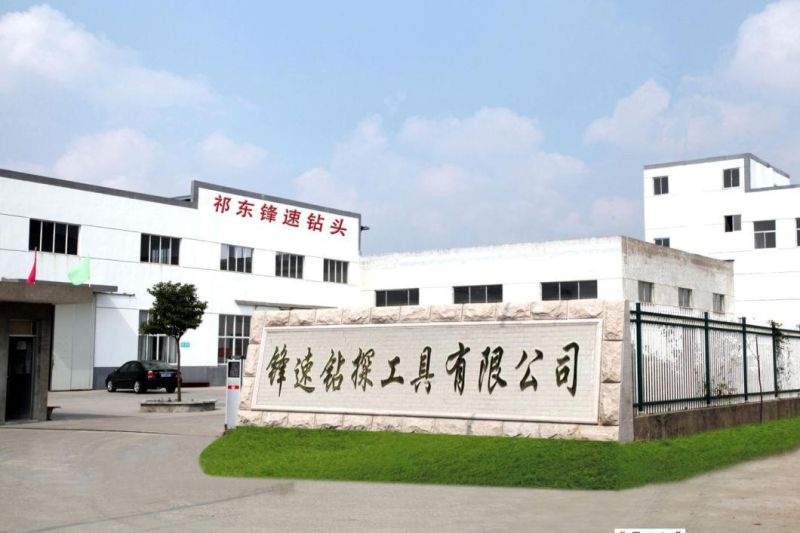

 FACTORY  SHOW

-PAYMENT-

DIY customization: please provide your rock formation information or detailed size drawings.

Free samples: some samples can be provided free of charge.

Trading:EXW, FOB, CFR, CIF, DDU such as.

Payment:T/T L/C,D/A,D/P,Western Union,MoneyGram.

Delivery time: normally 7-12 days
