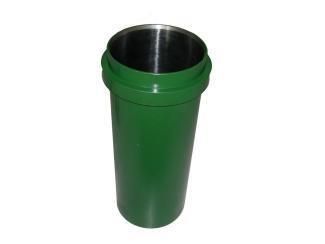

Ceramic Liner for Mud Pump
Dongying Lake Petroleum Technology Co., Ltd.- After-sales Service：1 Year
- Warranty：3 Months
- Manufacturing Process：Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Atmospheric Pressure
- Material：Ceramic, Metal
Base Info
- Transport Package：Wooden Case
- Specification：standard
- Trademark：Lake Petro
- Origin：Shangdong, China
Description

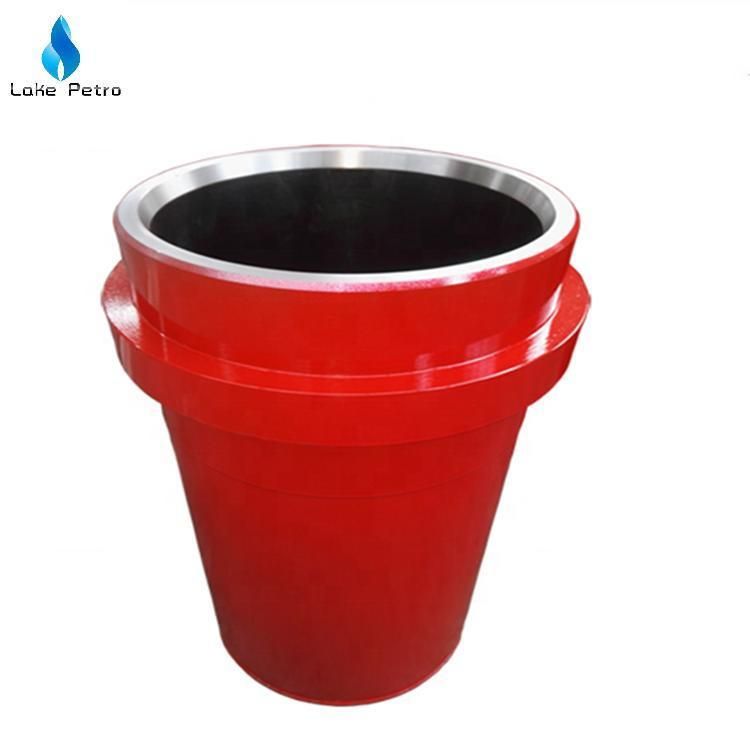

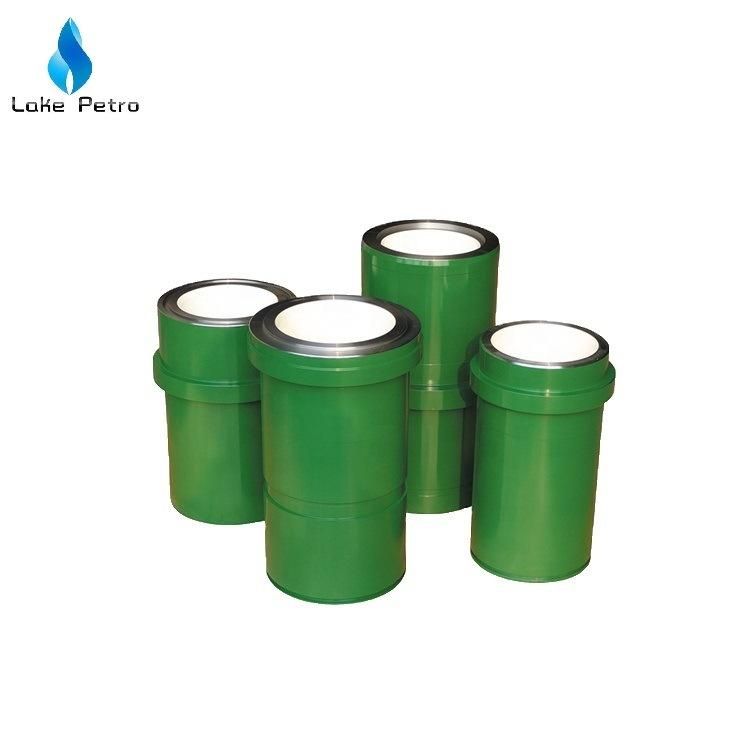

Liner is divided into Ceramic Sleeve Liner, Double Metal Liner, Carburization & quenching Liner and Chrome-plated Liner. Ceramic Sleeve Liner, Material of sleeve is Zirconia and its shell is 45#(ASTM1045)forged steel.
Double Metal Liner
Material for shell is forged steel pipe or seamless steel tube, 45#(ASTM1045). Normalizing hardness degree is 160BHN(HB180-200), percentage elongation 17%(δ>17%),tensile strength not less than 85000PSI(σb>610Mpa), Flexural Strength not less than 60000PSI(σb>450MPa)and shell with HP.
Sleeve material is high chrome centrifugal, which is chrome containing 26-28%, its thickness 0.25~0.35 inch (6.35 -8.89mm. its standard thickness is 7mm and special thickness reduced has 3 kinds, 4mm, 4.5mm & 5mm. Normally, it means standard thickness if there is no special explanation ), quenching hardness HRC59-67.
Liner is divided into Ceramic Sleeve Liner, Double Metal Liner, Carburization & quenching Liner and Chrome-plated Linera.) Ceramic Sleeve LinerMaterial of sleeve is Zirconia and its shell is 45#(ASTM1045)forged steel.
Technical Parameters of Zirconia Liner is as following:
Material for shell is forged steel pipe or seamless steel tube, 45#(ASTM1045). Normalizing hardness degree is 160BHN(HB180-200), percentage elongation 17%(δ>17%),tensile strength not less than 85000PSI(σb>610Mpa), Flexural Strength not less than 60000PSI(σb>450MPa)and shell with HP.
Sleeve material is high chrome centrifugal, which is chrome containing 26-28%, its thickness 0.25~0.35 inch (6.35 -8.89mm. its standard thickness is 7mm and special thickness reduced has 3 kinds, 4mm, 4.5mm & 5mm. Normally, it means standard thickness if there is no special explanation ), quenching hardness HRC59-67.
Its Chemical Composition Table is as followingMaterial is 20#(ASTM1020) seamless steel tube or forged steel. The bore will be carburized first and then High Frequency quenching . The thickness of Carburized layer is more than 1.5mm and hardness of the bore is HRC58-62
e)Liner seal
Liner seal in different size can be supplied and their material are or polyurethane normally.
| NBR Rubber seal of Liner | Polyurethane Insert of Liner |
FAQ
How to order?
Please send us your inquiry with detail item description or with Model number.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
You send us your detail requirement, we provide quotation to you.
Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
The information you may like to know before Payment:
1. Methods of Payment:
T/T (Telegraphic Transfer) or L/C at sight
2. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
3. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
