Oilfield Completion Tool Downhole Cable Protector Cable Clamp Drilling Tools
Liaoning Tolian Technology Development Co, . Ltd- Warranty：3 Month
- Manufacturing Process：CNC Milling
- Surface Treatment：Without Processing
- Operation Pressure：Atmospheric Pressure
- Material：Carbon Steel
- Certification：API
Base Info
- Use：Oil Well
- Type：Cable Protector
- Transport Package：Wooden Case
- Specification：According to the custom
- Trademark：Tolian
- Origin：China
- HS Code：8431431000
- Production Capacity：1000piece,Month
Description

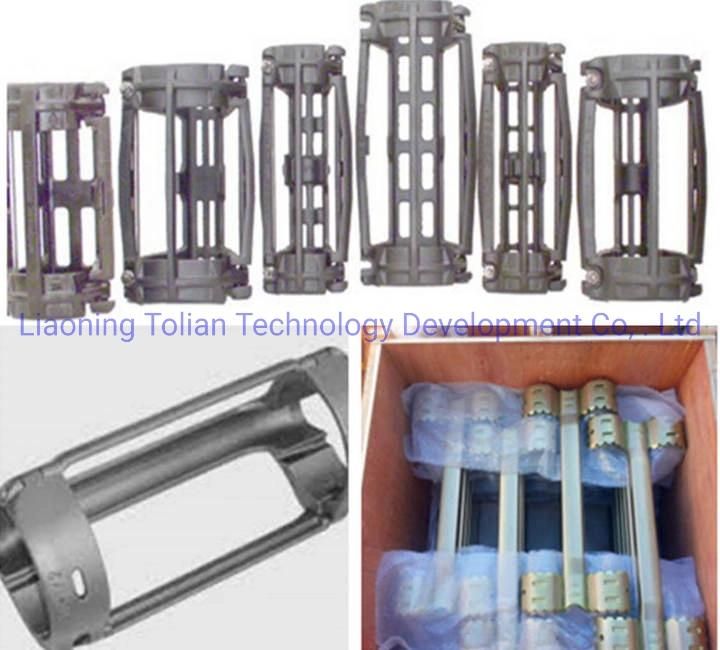

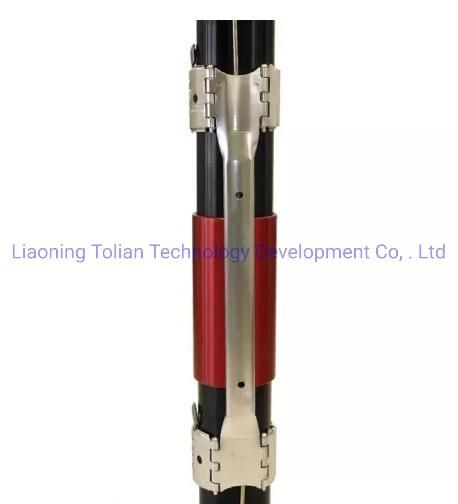

Downhole cable protector cable clamp

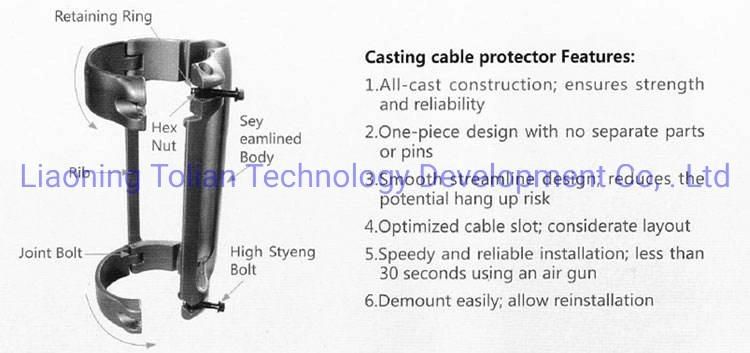

Cross coupling cable protector is widely applied on cross coupling, tubing, safety valve protection, completions, fixing, well repair and gauge completions. The body of cable protectors is produced by precision casting using high-grade materials to ensure product reliability. The unique streamline design prevents damage during dynamic movements of the production tubing and ensuring continuity and accuracy in the gauges complication. Cable protectors can be installed speedily as it has no separate parts or pins, reducing the hang-up risk. Moreover, it can be uninstalled just as easily and still allows reinstallation.
Application
ESP cable
Subsurface safety valves control line
Chemical injection line
Coiled tubing
Permanent Gauges
Intelligent Wells
Fiber Optics
No. | Casing Size Octg Erw | Tubing Centralizer (Id) | Tubing Centralizer (Od) |
1 | 5.5" | 2-3/8"(60.325mm) | 110mm |
2 | 7" 6" | 2-3/8"(60.325mm) | 140mm |
3 | 7" 6" | 2-7/8"(73.025mm) | 140mm |
4 |
| 2-7/8"(73.025mm) | 114-115mm |
5 | 7" | 3-1/2"(88.900mm) | 140mm |
6 |
| 0.83"(210.82mm) | 419.1mm |
7 |
| 1.19"(302.26mm) | 419.1mm |
