Home > Product > Oilfield Shale Shaker

Jslh-Series-150-45-Jet-Mixing-Device

Shandong Beyond Petroleum Equipment Co., Ltd.

After-sales Service：Video Technical Support, Online Support, Spare PAR
Warranty：1 Year
Certification：CE, ISO 9001:2000, ISO 9001:2008
Mesh Shape：Circular
Layer：Single Layer
Material：Steel

Base Info

Model NO.：JSLH 150-45
Type：High Frequency
Model：Jslh150-45
Supporting Pump：Jsb8*6*11
Motor Power：45 M
Discharge Capacity：220m3,H
Working Pressure：0.25~0.6MPa
Inlet Diameter：8"
Outlet Diameter：6"
Transport Package：Wood Box
Specification：2500*2300*1200mm
Trademark：Beyond
Origin：China
Production Capacity：100PCS,Month

Description

JSLH Series Jet Mixing DeviceModelJSLH150-55JSLH150-45JSLH150-37Supporting pumpJSB8×6×14JSB8×6×11JSB6×5×11Motor power
55kW
45kW
37kWDischarge capacity240m³/h220m³/h200m³/hWorking pressure0.25~0.6MPa0.25~0.6MPa0.25~0.6MPaInlet diameter
8"
8"
6"Outlet diameter6"6"6"Mixing speed≤100kg/min≤80kg/min≤60kg/minWeight1300kg1200kg1100kgOverall dimension2500×2300×1200mm2500×2300×1200mm2200×2200×1200mm
Jslh-Series-150-45-Jet-Mixing-Device

Jslh-Series-150-45-Jet-Mixing-Device

Jslh-Series-150-45-Jet-Mixing-Device

Jslh-Series-150-45-Jet-Mixing-Device

Jslh-Series-150-45-Jet-Mixing-Device

Category

Mud Circulating System

Oilfield Shale Shaker

Other Petroleum Equipments & Machinery

Petroleum Equipment & Machinery

Petroleum Machinery Parts

Recommended

Jslh-Series-150-55-Jet-Mixing-Device
JSLH Series Jet Mixing DeviceModelJSLH150-55JSLH150-45JSLH150-37Supporting pumpJSB8×6×14JSB8×6×11JSB6×5×11Motor power55kW45kW37kWDischarge capacity240m3/h220m3/h200m3/hWorking pressure0.25~0.6MPa0.25~0.6MPa0.25~0.6MPaInlet diameter8"8"6"Outlet diame
China Factory API RAM Blowout Preventer for Wellhead Control
Overview Product DescriptionProduct ParametersCertificationsCompany ProfilePackaging & ShippingOur AdvantagesFAQ
Manufacture Oilfield Vibrating Screen Mesh Flc2000 Shale Shaker Screen
ItemScreens for Shale shaker,desilter,desanderReplacement BrandFLC, PWPNOV Brandt: VSM,Cobra, King Cobra, D380,D285P and LCMM-I SWACO,ALS-2,MD-2,MD-3,MEERKAT PT,MON-GOOSE PRO Other BrandMaterialSS314/316,2 or 3 layersFrame typesteel or compositeWarranty Period:1 ye
AISI 4130 Chiksan Integral Pipe with 2"Fig 1502 Union
Overview Product DescriptionProduct ParametersDetailed PhotosPackaging & ShippingCompany ProfileLake Petro companyFAQLucky HouBusiness Development ManagerDongying Lake Petroleum Technology Co., Ltdadd:Huanghe Road, Dongying City, Shandong, China
Casing Centralizer Tubing Rubber Centralizer
Basic Info. Model NO. 1.67"-5′′
High Pressure Active Elbow/ Swivel Joint/ Chiksan Joint with H2s Service in Oilfield
Basic Info. Model NO. All Model
Differenrt Type High Strength Bolt / Spare Parts of Mud Pumps
Basic Info. Type Petroleum Drilling Tool & Accessory

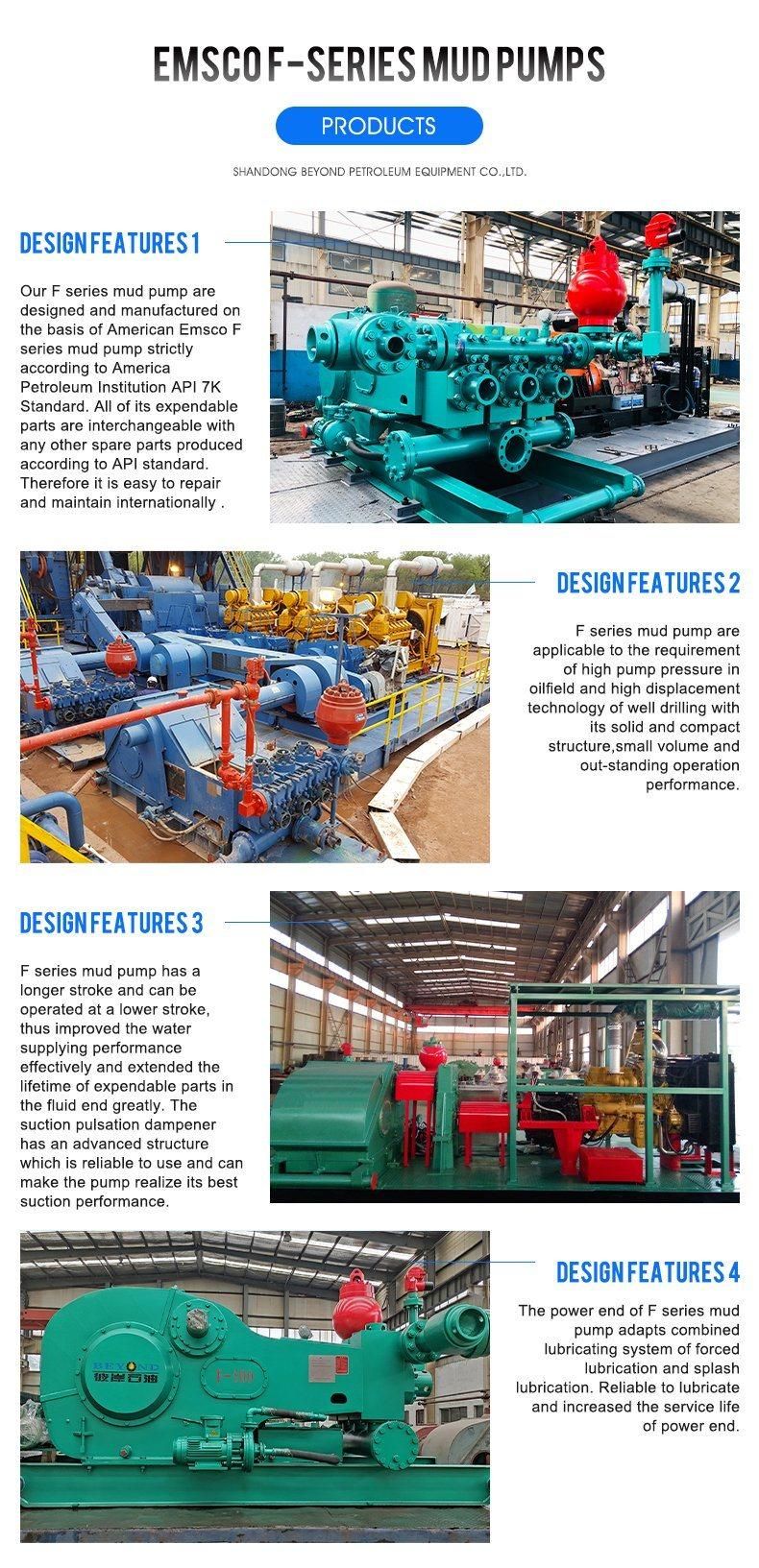

F Series Oilfield Drilling Mud Pump Piston Assembly
