• Model NO.：1-1,4
• Transport Package：Wooden Case
• Specification：1-1,4
• Trademark：zx
• Origin：China

Overview Product Description

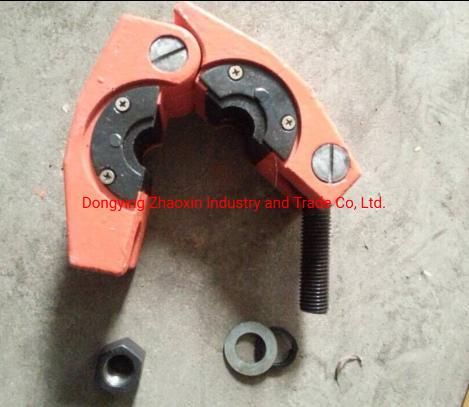

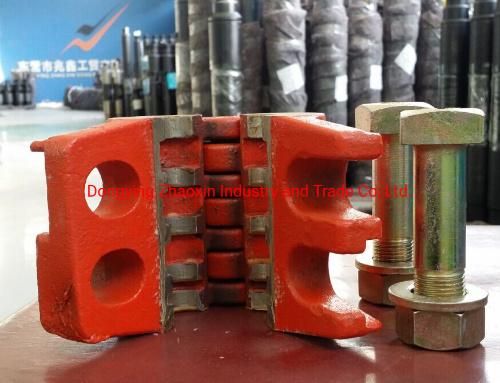

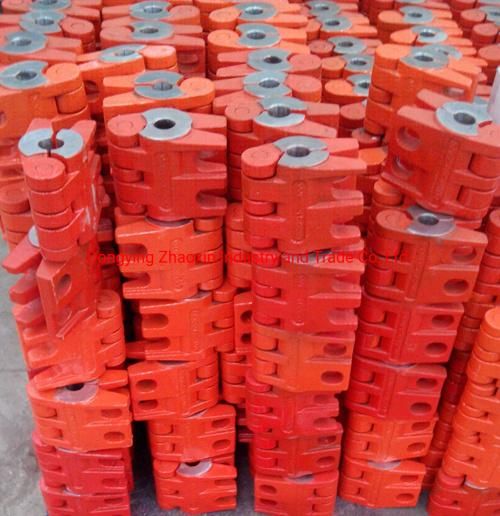

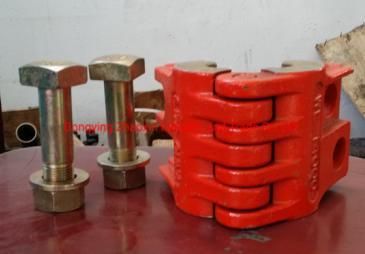

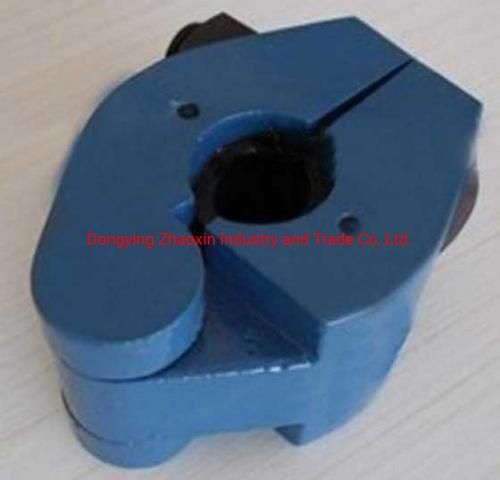

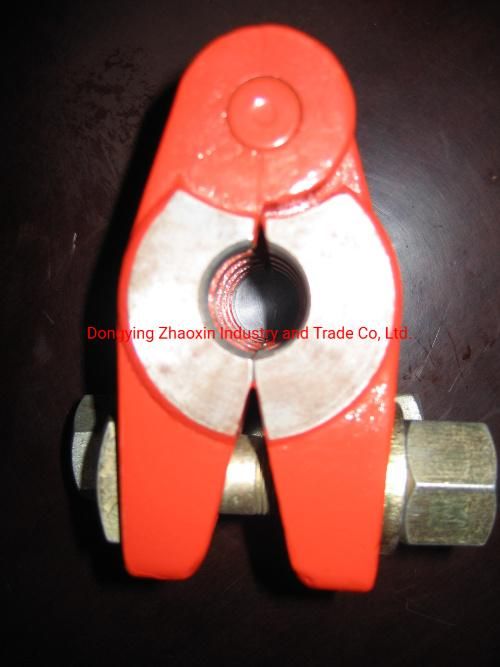

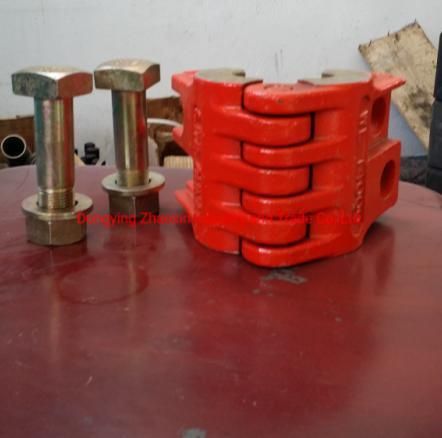

Polished Rod Clamps are a high quality, high strength, yet light weight and easy to use clamp.
Available in single, double, and triple bolt sizes to handle every well application.
All Polished Rod Clamps are forged from high-grade, heat treated steel.
Bolts are cadmium plated. Hinge pins are 4140 heat treated steel.
The clamping surface of each polished rod clamp is bored and reamed to the exact size of the polished rod. Additionally, both ends are machine-squared with the hole to prevent eccentric loading if the hanger bar is flat.
Features
§  Indentation style
§  Forged steel construction for high strength
§  Precision machined parallel faces and perpendicular rod bore
§  Hard black coating
§  Industry leading clamping capacity


Product Parameters



Sizemm(in)Load(KN)Dimension(mm)Weight(KG)15.9(5/8")2-1058*72*1082.519.1(3/4")2-1058*72*1082.522.2(7/8")2-1258*72*1082.525.4(1")2-1658*82*1082.528.6(1-1/8")2-1858*82*1102.531.7(1-1/4")2-1858*86*1102.534.9(1-3/8")2-1858*98*1103.838.1(1-1/2")2-1858*98*1103.841.3(1-5/8")2-1858*98*1103.8Packaging & Shipping
