• Model NO.：BTC958
• QA&QC：Strictly
• Delivery Time：Normally 15 Days
• Diameter：9 5,8"
• Usage：Well Drilling Machinery, Offshore Oil and Gas Field Exploitation Machinery
• Transport Package：Plywood Cases or Depending on Customers
• Specification：API 5CT
• Trademark：PYZS or OEM
• Origin：Henan, China
• Production Capacity：5000PC,Month

Basic Info.

Model NO. BTC958 QA&QC Strictly Delivery Time Normally 15 Days Diameter 9 5/8" Usage Well Drilling Machinery, Offshore Oil and Gas Field Exploitation Machinery Transport Package Plywood Cases or Depending on Customers Specification API 5CT Trademark PYZS or OEM Origin Henan, China Production Capacity 5000PC/Month

Product Description

1. Description:

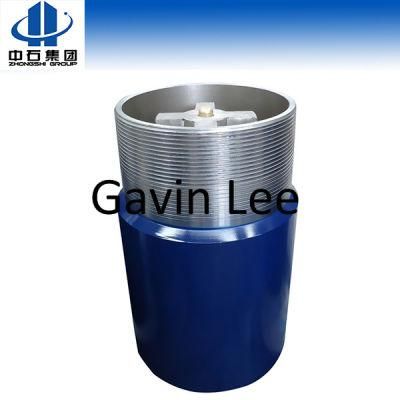

Float shoe is connected to the end of the casing string to replace the guide shoe. It works as a guide and back pressure valve.

2. Features:
High strength design ensures high pressure bump and back flow resistance;
Withstands long periods of circulation;
Automatic fill-up, saves considerable running-in time of casing;
Easy drill out with PDC bits;
Special non-rotational groove design ensures cementing plugs dilled out quickly;
It is economically priced.

3. Our product range
Pumping unit/ tubing pump/ sucker rod/ X-mas tree/ casing head/ casing pipe/ tubing pipe/ drill pipe/ polished rod/ coupling
Production packer/ water flow regulator/ tubing anchor/ safety joint/ screen pipe/ sand screen
Float collar/ float shoe/ casing centraliser
Container house/ color steel sandwich panel house
Belt feeder

Specification	In-Dia	Out-Dia	Height	Backward pressure	Forward pressure	Connect screw thread	material	standard
FG-FZQ140	154	122	400	20MPa	25MPa	5-1/2"LCSG	40Cr	SY/T5618-2000
FG-FZQ178	194	159	400	20MPa	25MPa	7"LCSG	40Cr	SY/T5618-2000
FG-FZQ245	270	220	450	20MPa	25MPa	9-5/8"LCSG	40Cr	SY/T5618-2000
FG-FZQ340	365	313	450	10MPa	10MPa	13-3/8"LCSG	40Cr	SY/T5618-2000
FX-FZQ140	154	122	500	-	25MPa	5-1/2"LCSG	40Cr	SY/T5618-2000
FX-FZQ178	194	159	500	-	25MPa	7"LCSG	40Cr	SY/T5618-2000
FX-FZQ245	270	220	550	-	25MPa	9-5/8"LCSG	40Cr	SY/T5618-2000
FX-FZQ340	365	313	550	-	10MPa	13-3/8"LCSG	40Cr	SY/T5618-2000
