• Model NO.：All
• Specifications：60 to 300mm
• Advantage：Durable
• Tensile Strength：>610MPa
• Name：Mud Pump Parts,Pump Parts, High-Pressure Urethane
• Package：Standard
• MOQ：3
• Port：Tianjin
• Model：F Series, 3nb Series, etc
• Theory：Centrifugal Pump
• Transport Package：Wooden Box and Sea Shipment
• Specification：standard
• Trademark：xinhuafa
• Origin：Cn
• HS Code：841391000
• Production Capacity：50000sets,Per Year

 product name

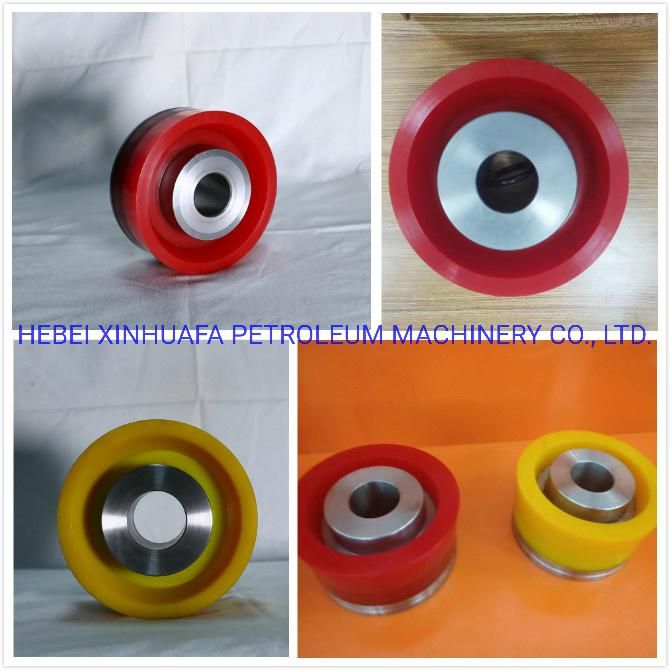

Urethane bonded piston

 MaterialNBR, Urethane rubber Length of use400-600h portTianjin applicationwater-based drilling fluids

Product Parameters

Russian pump	UNBT950,UNB600,8T650,UNBT 1180L,NBT600,NBT300ect.
BOMCO/Emsco/HongHua	FB1300/1600, F1300/1600, F800/1000, F500 & some duplex pumps.
Gardener denver	PZ 7, PZ 8/9, PZ 10/11, KF-FXK, FY-FXD, FD-FXX, FG-FXG, FQ-FXQ, FF-FXP, FG-GXG.
National	7P50, 8P80, 9P100, 10P130, 12P160, 14P220, JWS165, JWS340/400, C250/350, K700, K500, K380.
Oilwell	A560/600PT, A850/1100PT, A1400/1700PT, 214P, 810P.
Ideco	T500, T800/1000, T1300/1600.
Wirth	TPK1000, TPK1600, TPK2000/2200.
Weatherford	MP-5,MP-8,MP-10,MP-13,MP-16

Features, Advantages and Benefits:

This piston is the best choice for oil-based and synthetic drilling fluids.

The piston is bonded to the hub for optimal strength and extrusion resistance.

The improved seal design centers the piston and promotes longer piston life with reduced liner wear.

The cut-back hub protects the liner from damage.

The dual-durometer elastomeric compound resists extrusion while ensuring a tight seal and improved wiping action.

The piston comes complete with a hub O-ring and sleeve.
